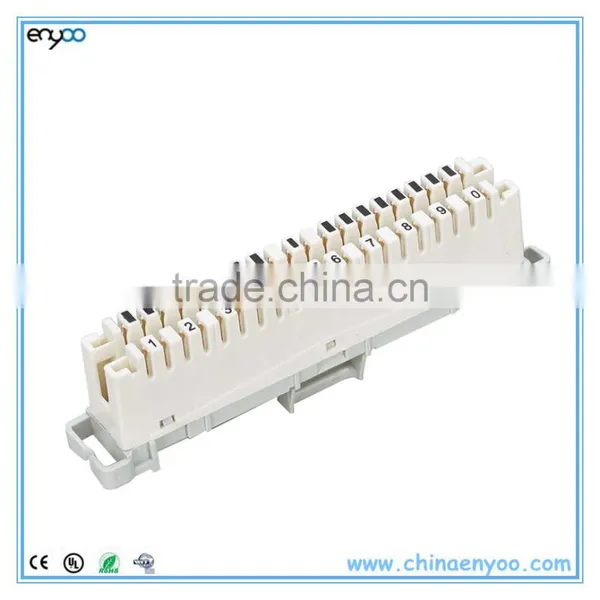

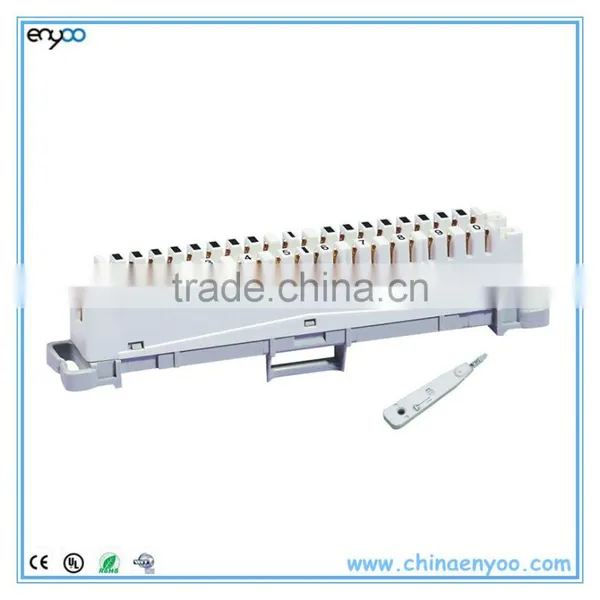

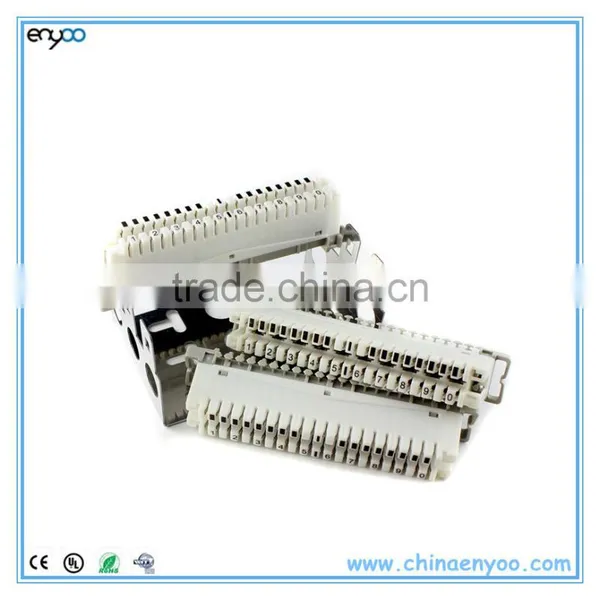

Help CenterNew White 10-Pair Telephone Krone Type LSA-PLUS IDC Connection Module
Related Products
-
10 Pair LSA Back Mount Copper Wire Disconnection Krone Module,disconnecting StripUS$ 0.49 - 0.69MOQ: 100 Pieces -
LSA 10 Pair Overvoltage Protection(Protector) Magazine 2 /10, 3 Pole Arrester MagazineUS$ 0.67 - 3.95MOQ: 50 Pieces
-
19 Inch 3U Tooless Mounting Network Cabinet Plastic Blank PanelUS$ 1.8 - 3.6MOQ: 100 Pieces
-
19 Inch Tooless Mounting Network Cabinet 1U Plastic Blank PanelUS$ 0.69 - 0.89MOQ: 1 Piece
-
100 Pair Outdoor Waterproof Cable Distribution BoxUS$ 2.2 - 6MOQ: 1 Set

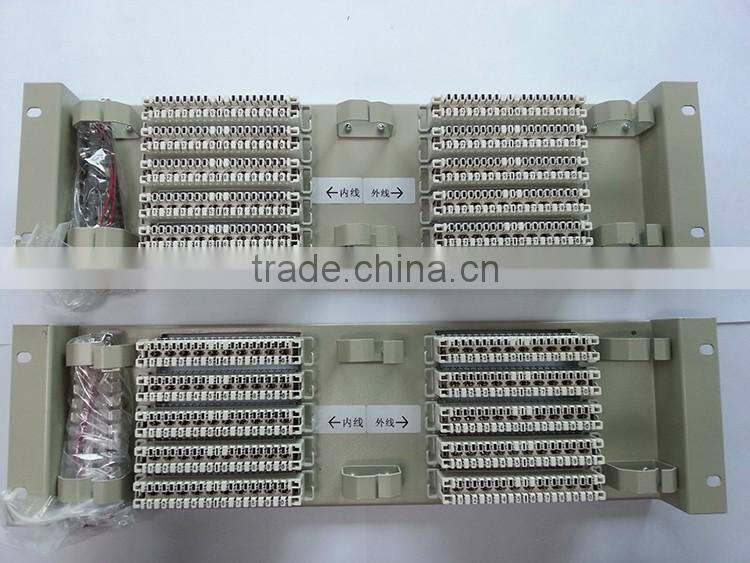

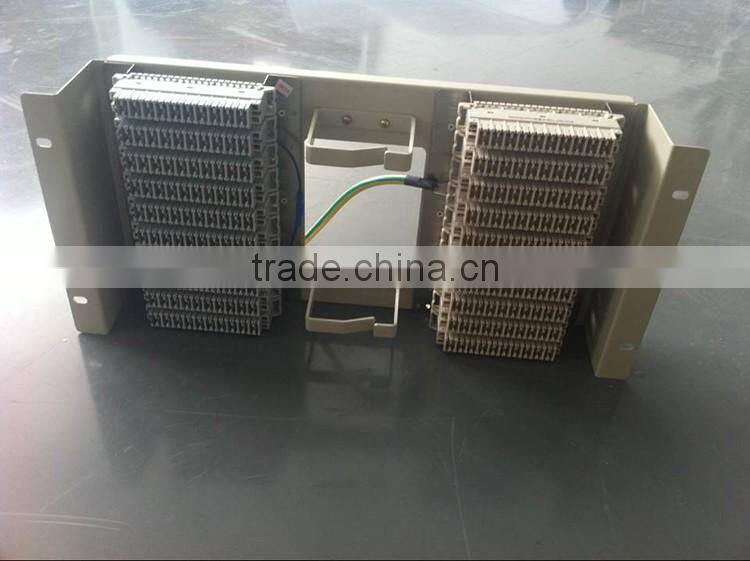

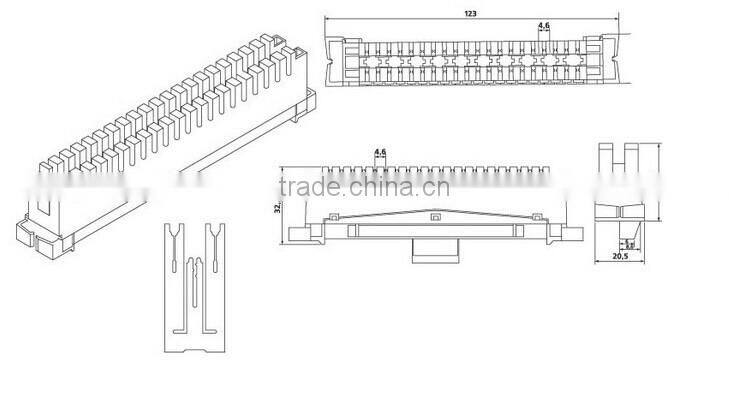

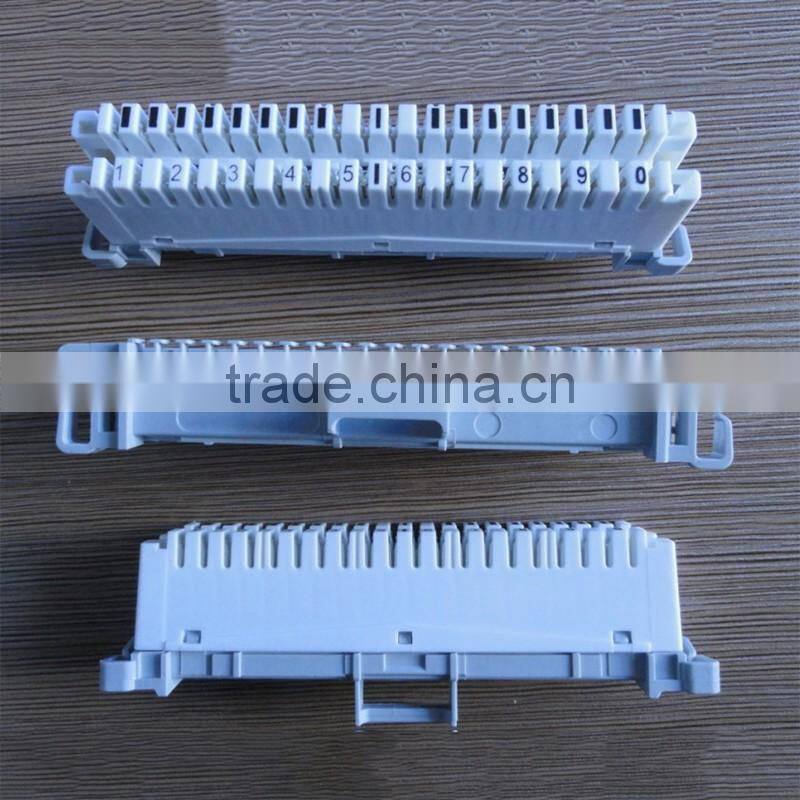

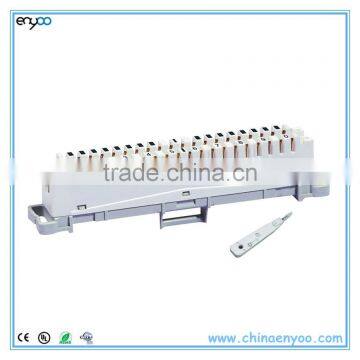

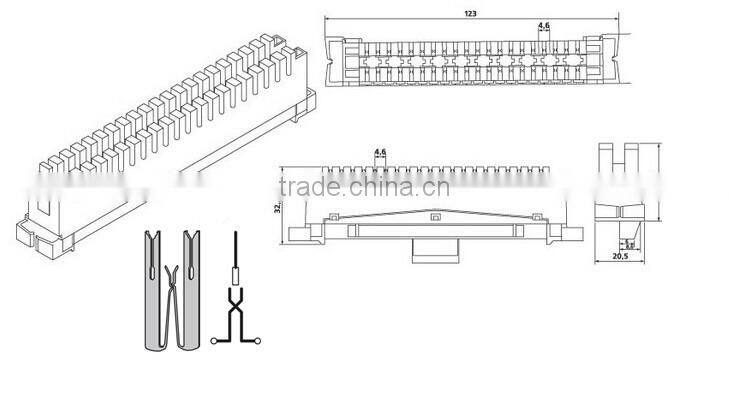

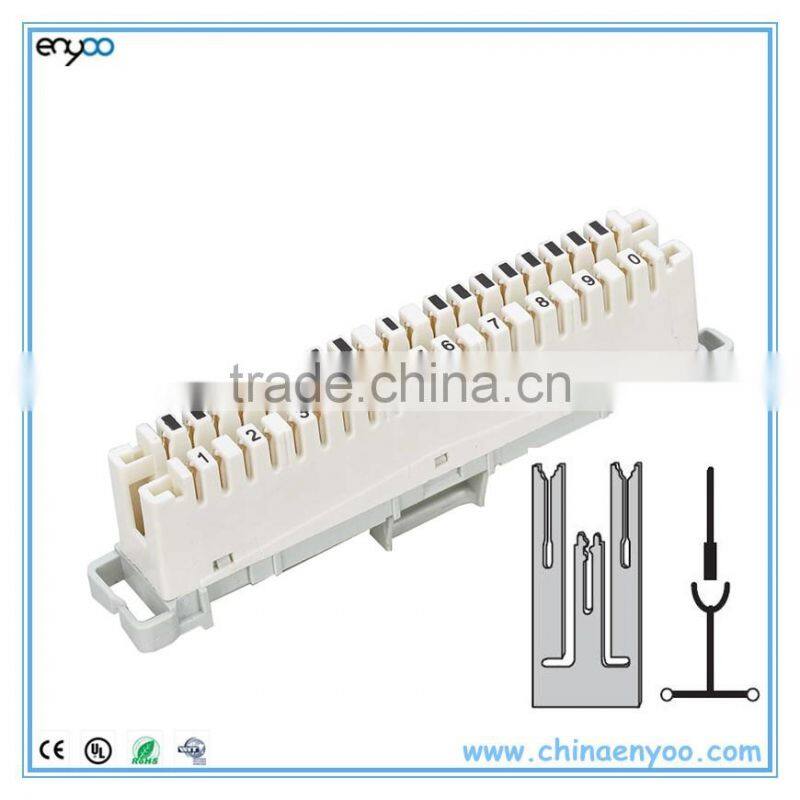

1.Pictures of Product
2.Description of Product
KRONE LSA Connection Module, for 10 pairs with parallel test facility or provision for over voltage protection using 10 pair protection magazine.
Features: 1.Based on LSA connection technology
2.Fits on all LSA back mount frames
3.Suitable for use in all xDSL and ADSL 2+ circuits
4.Flexible indoor and outdoor use ,Robust long term environmental stability
5. Overvoltage protection using 10 pair protection magazine only
Compliance: Type approved against TEC, CT Block spec.
The connection module function:
The wires are connected to the opposite contacts at the system/cable and at the jumper sides. Separate access contacts are located at the centre of each pair; e.g. for monitoring, measuring and testing work, for switching using switching adapters or for connecting over-voltage protection magazines (3-point protection with overvoltage arrestors or semiconductor components).
The disconnection module function:
Compared to the connection modules, the LSA-PLUS disconnection modules feature additional functions,
because the circuit can be interrupted using plugs or cords when required. This feature provides a wide range of possibilities, for example, the implementation of “intelligent”protection systems, measuring and testing in twodirections, connecting via cords or “looping in” of functional elements (e.g. attenuation plugs).
Properties
Connection frequency ............................................................................................> 200 times
Test access plug in cycles ......................................................................... > 250
Contact resistance ..................................................................................... < 2.5 m ohms Insulation resistance .........................................................................> 50 000 Mega ohms Dielectric strength ................................................................................................. 2 KV rms
Impulse current ..............................................................................5 kA ( 8/20 micro sec)
Current carrying capacity .....................................................................2 A Environmental
Temperature operation ......................... - 5 C to + 60 C
Relative humidity .........................................................95%, no water condensation, no ice
Materials Plastics .......PBT, Resistant against aggressive chemicals (PVC Softener)
Plastics flammability class ........................................................................UL 94 V0
Contact ..............Special brass, silver plated
Mechanical Performance |
Insertion force : 40~75N |
Pull Out Force : F≥25N(axial) F≥7.5N(radial) | |
IDC Life : 200 times(20-26 AWG Solid wire) minimum | |
Copper Conductor Diameter: Φ0.4~Φ0.8(mm) | |
Environment Characteristic |
Storage Tempreture: 40 to 70°C |
Operating Temperature : -5 to 60°C | |
Relative Humidity: 95%, noncondition | |
Electrical Performance |
Insulation resistance: 1000 Mohms minimum |
Contact resistance :2.5 mohms maximum | |
Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s |
3.Certifications of Product
4.Hot items
5.More Product for Choose

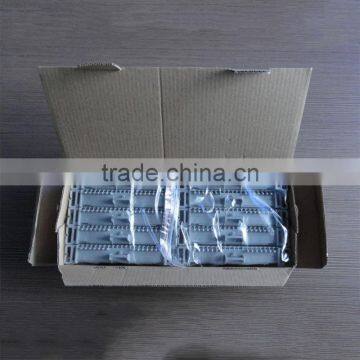

6.Packing of Product
Packing specification:
1.package:1pcs/opp bag
2.Economic packing:250pcs per carton
3.N.W:13KGs G.W.:14KGs
4.MEAS:56*27*25CM
7.Introduction of Company
8.Our Company View
9.Quality control and Welcome to Contact Us
