Home > Industrial Equipment & Components > Valve > Ball Valve > 8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig Solenoid Valve VZCT-6.5FS

8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig Solenoid Valve VZCT-6.5FS

Wenling Bona Valve Co., Ltd.
8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig Solenoid Valve VZCT-6.5FS thumbnail-1
8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig Solenoid Valve VZCT-6.5FS thumbnail-2
8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig Solenoid Valve VZCT-6.5FS thumbnail-3
8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig Solenoid Valve VZCT-6.5FS thumbnail-4
8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig Solenoid Valve VZCT-6.5FS photo-1
8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig Solenoid Valve VZCT-6.5FS photo-2
8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig Solenoid Valve VZCT-6.5FS photo-3
8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig Solenoid Valve VZCT-6.5FS photo-4
US$ 3 - 4 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Shutoff
Pressure:
Low Pressure
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Shutoff
Pressure Low Pressure
Power Solenoid
Material Brass
Temperature of Media Medium Temperature
Media Gas
Port Size 8*6.5MM
Place of Origin Zhejiang, China
Model Number VZCT-6.5FS
Brand Name BONAVALVE
Application General

6.5mm,8.0mm Nipple Connector Co2 Argon Arc Mig Tig  solenoid valve



1.Description



Body material

brass

Structure

Direct action

Type

Normally cosed

Seal Material

NBR,EPDM,VITON

Port size

8*6.5mm

Port thread

G,NPT,PT

Orifice

2.2mm

Temperature

0°C to 80 °C

Medium

water, gas, steam,liquid..

Pressure

0-1.0Mpa

Voltage

DC-12V,24V,42V

AC12V,24V,36V,42V,110V,220V/50HZ,

others upon request

Tolerance

±10%

Coil

IP 65,100% ED

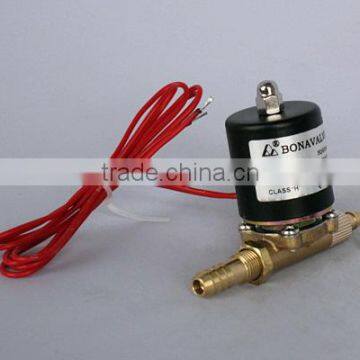

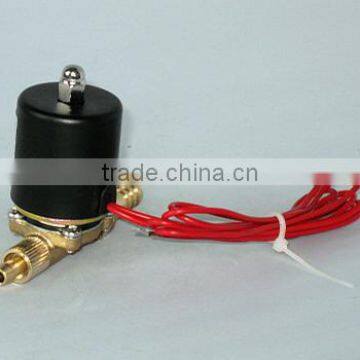

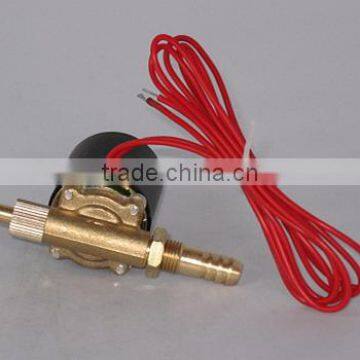

2. Picture



   8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig solenoid valve VZCT-6.5FS         8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig solenoid valve VZCT-6.5FS             8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig solenoid valve VZCT-6.5FS

   8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig solenoid valve VZCT-6.5FS         8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig solenoid valve VZCT-6.5FS           8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig solenoid valve VZCT-6.5FS

     8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig solenoid valve VZCT-6.5FS              8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig solenoid valve VZCT-6.5FS             8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig solenoid valve VZCT-6.5FS



3. Production line



8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig solenoid valve VZCT-6.5FS

4.Certificates



8*6.5mm Nipple Connector Co2 Argon Arc Mig Tig solenoid valve VZCT-6.5FS

5. Our service



We have more than 12 years experience in solenoid valves.

Excellent quality control is one of our main principles.

Our design, producing and testing are strictly complied with ISO9001 standard.

Now our products are being exported all over the world.

We provide OEM service, accept customer label, develop the product with your drawings or samples.

Any question, will be replyed within 24 hours.



 6. Other terms



1) About Samples

 We provide samples for your making test, you could choose UPS, DHL, EMS, FEDEX, TNT or other express company for the delivery. Tracking number will be informed you ASAP.



2) About Packing

Inner packing: white box, color boxes (upon request), Outer packing: cartons or pallets



3) Terms of payment:

We accept T/T, L/C, Western union, Papal



4)Terms of Shipment:

About 20-25days after receiving deposit.



5)Ports of shipment:

Ningboor shanghai Port, by sea or air.



6)Gurantee:

One year since delivery.



7)Inspection:

100% testing before delivery.



Welcome to choose our products, we are ready for you!
