1/8X6.5mm Brass steam control valve 12V 24V air solenoid Valve ZCQ-20B-3
1.Description
Body material |
brass |
Structure |
Direct action |
Type |
Normally cosed |
Seal Material |
NBR,EPDM,VITON,Silicon Gel |
Port size |
1/8X6.5mm |
Port thread |
G,NPT,PT |
Orifice |
2.2mm |
Temperature |
0°C to 160 °C |
Medium |
water, gas, steam,liquid.. |
Pressure |
0-10bar |
Voltage |
DC12V,24V AC12V,24V,36V,42V,110V,220V others upon request |
Tolerance |
±10% |
Coil |
IP 65,100% ED |

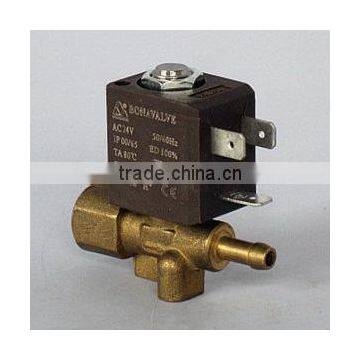

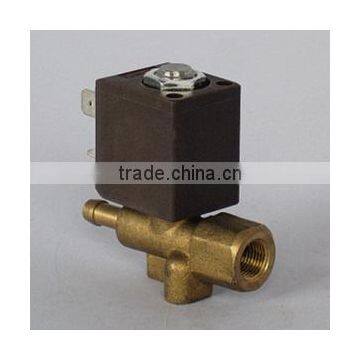

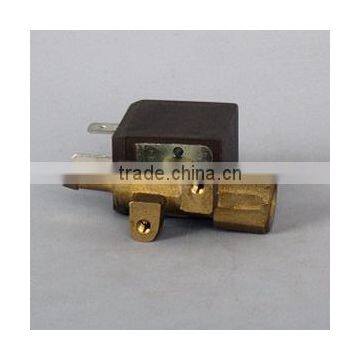

2. Picture
3. Production line
4.Certificates
5. Our service
We have more than 12 years experience in solenoid valves.
Excellent quality control is one of our main principles.
Our design, producing and testing are strictly complied with ISO9001 standard.
Now our products are being exported all over the world.
We provide OEM service, accept customer label, develop the product with your drawings or samples.
Any question, will be replyed within 24 hours.
6. Other terms
1) About Samples
We provide samples for your making test, you could choose UPS, DHL, EMS, FEDEX, TNT or other express company for the delivery. Tracking number will be informed you ASAP.
2) About Packing
Inner packing: white box, color boxes (upon request), Outer packing: cartons or pallets
3) Terms of payment:
We accept T/T, L/C, Western union, Papal
4)Terms of Shipment:
About 20-25days after receiving deposit.
5)Ports of shipment:
Ningboor shanghai Port, by sea or air.
6)Gurantee:
One year since delivery.
7)Inspection:
100% testing before delivery.
Welcome to choose our products, we are ready for you!
