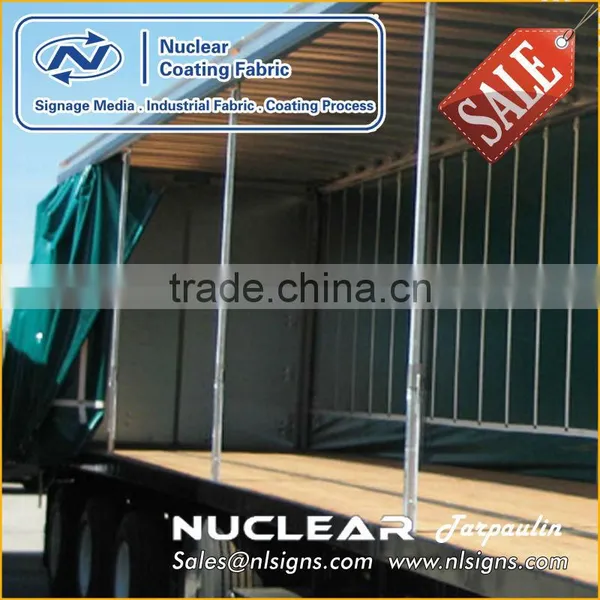

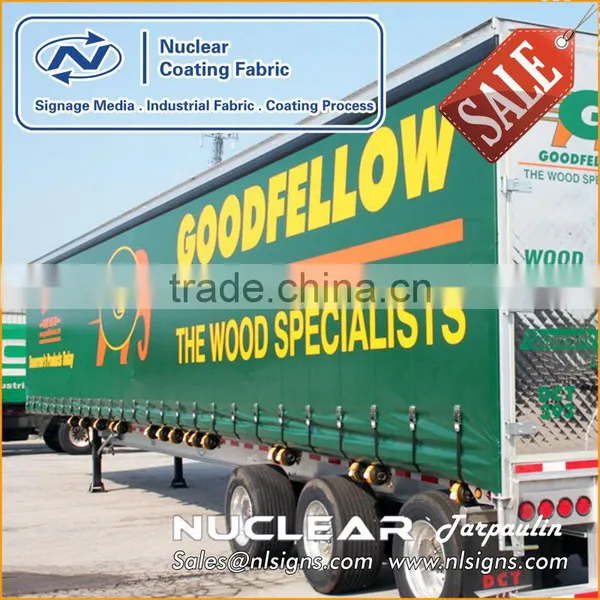

900gsm Tensile Pvc Side Curtain for Truck

Hangzhou Nuclear Coating Fabric Co., Ltd.

US$ 1.45 - 3.1 MOQ: 3000 Meters

Key Specifications

Supply Type:

Make-to-Order

Type:

Other, tarpaulin

Pattern:

Coated

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/ningbo/yiwu

Delivery Detail:

Delivery time depends on order quantity.

Supply Type Make-to-Order

Type Other, tarpaulin

Pattern Coated

Coated Type PVC Coated

Style Plain

Width Other, 1.02m-3.2m

Technics Knitted

Knitted Type Warp

Feature Waterproof, Flame Retardant, Tear-Resistant

Use Car, Bag, Tent, Umbrella, Industry, Wedding

Yarn Count 1000*1000

Weight 510

Density 20*20

Model Number NL-CL-1100

Specifications

900gsm tensile pvc side curtain for truck: Item no.: NL-CL-110 Yarn:1000*1000,20*20 Weight:510gsm Color:make to order

Treatment:lacquer/M2,B1/PDVF/Acrylic

Flam residency:M2/B1

Surface treatment:Acrylic

Color:confirmation according to customer sample

Application:truck cover, tent, awning, umbrella, industry

Test Item	Test Value	Test Method
width	3.00mts	DIN EN ISO 2286-1 GB/T 6673
length	50mts	DIN EN ISO 2286-1
weight	750g/m2 22.1OZ/ YD2	DIN EN ISO 2286-2 BS 3432 Method 5A
thickness	0.60mm	DIN 53370 GB/T 6672
finish	matte	N/A
base fabric	100% PES 1100dtex low-wick	DIN EN ISO 2076 DIN 6001 DIN 53924 at 80 °C
weave type	plain weave L 1/1	DIN EN ISO 61101
base fabric weight	195g/m2 5.76OZ/ YD2	DIN EN ISO 2286-2 BS 3432 Method 5B
coating layer	PVC resin emulsion UV stabilizer	N/A
coating method	4-axis knife coat	N/A
coating layer weight	555g/m2 16.34OZ/ YD2	DIN EN ISO 2286-2 BS 3432 Method 5B
tensile strength	2800 / 2800 (N/5cm)	DIN 53354
tear strength	250 / 250 (N)	DIN 53363
adhesion strength	80 (N/5cm)	DIN 53357
welding strength	230 (DaN)	DIN 53357
crack resistance	< 100,000x	DIN 53359 A
light fastness	6	EN ISO-105 B02:2001.Method 2 under Xenon arc fading lamp test
dimensional stability	<1%	24H at 70 °C
flammability	option	DIN 4102-1 clause 6.1.2 B1 NFP 92 503-507 M2 NFPA 701
temperature	-30 °C < T <+60 °C	DIN EN 1876-2
lacquer	option	acrylic double sided/signal sided embossed layer composition textile layer composition
heavy metal	Pass	Cd%, Pb%, As%, Ba%, Cr%, Hg%, Se% <0.1% DIN EN 71-3
bacterial exposure	Pass	ASTM G-22
phthalate	Pass	Reach Regulations EC regulation 1907/2006 6P
assurance	3 year limited	under vertical exposure condition
application	standard cover	Q/JHX 06-2010

1. Can you provided the finished products, or you can only provide the tarpaulin material.
We can producting the raw material and making the finished products.
2. Are you producting the fabric by yourself.
Yes, we producting it by ourself.
3. Does OEM is acceptable for you.
Yes, it is no problem.
4. Does the tarpaulin can printing logo.
Yes, we can screen printing the logo on the surface.
5. Does sample can be provided.
Yes,small material sample can sending for you by free.
