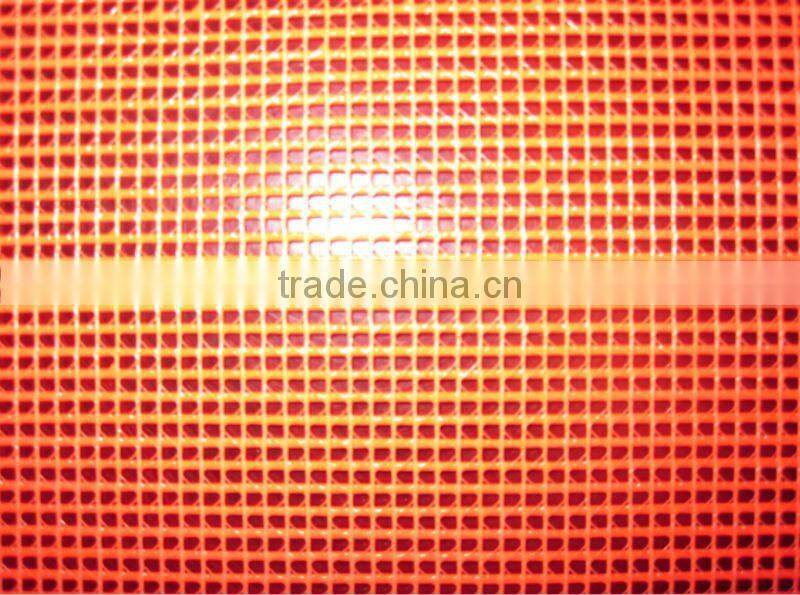

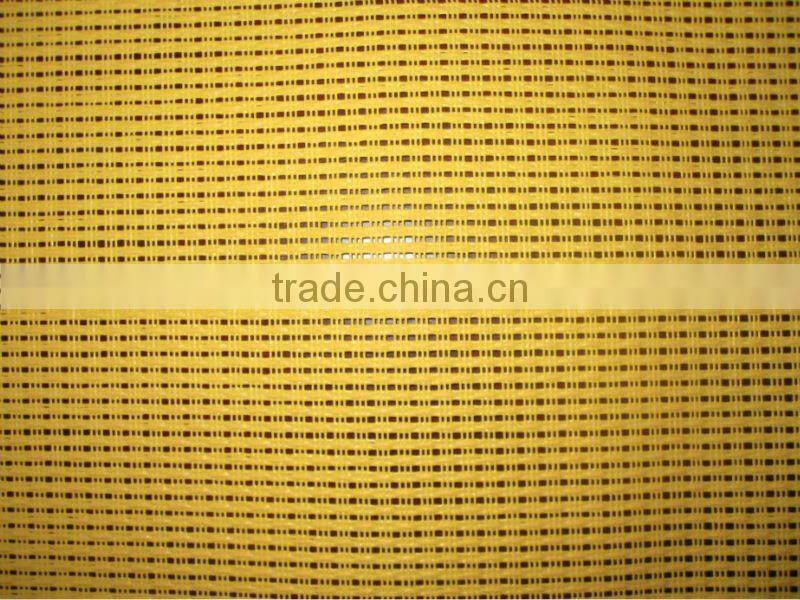

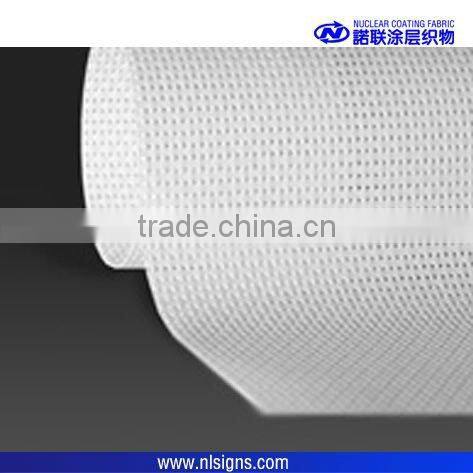

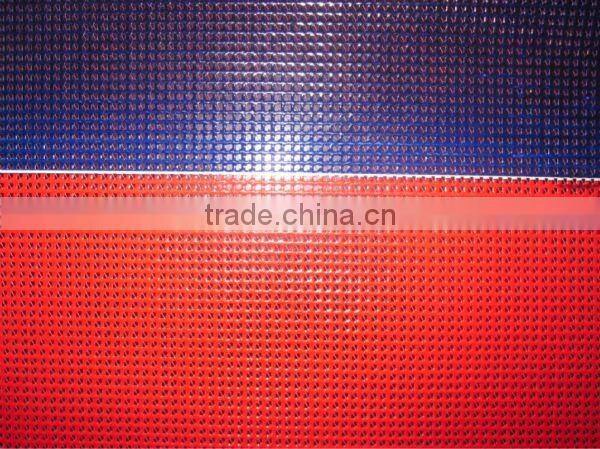

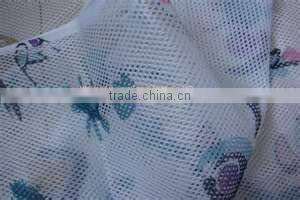

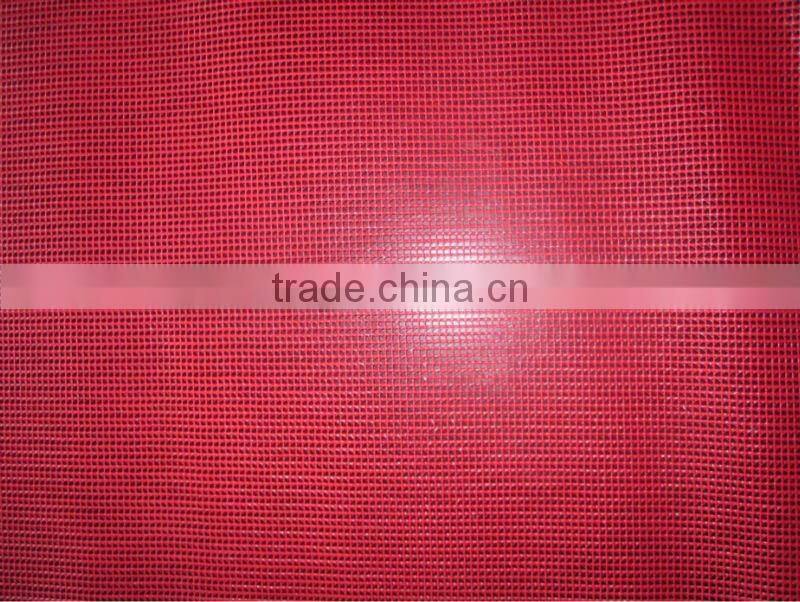

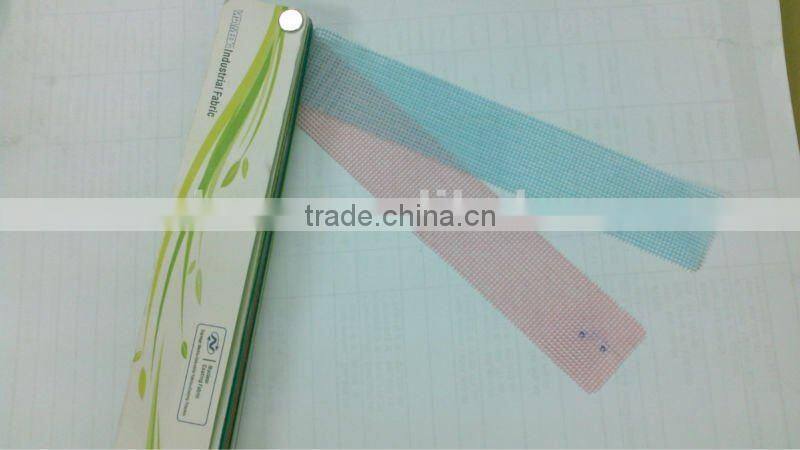

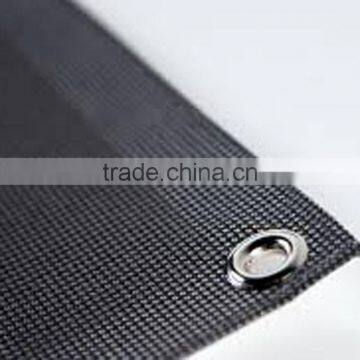

PVC Mesh is one kind of special solvent inkjet media and a open weave flexible sign face materials. Its open structure allows windflow. The characteristics of ventilate protect the buildings well, and it will not affect the indoor lighting effects. We adopt the knife coating technology to make the liquid PVC inosculate with the polyester yarn perfectly. The capability of structure and deadweight is an ideal choice for outdoor advertising.

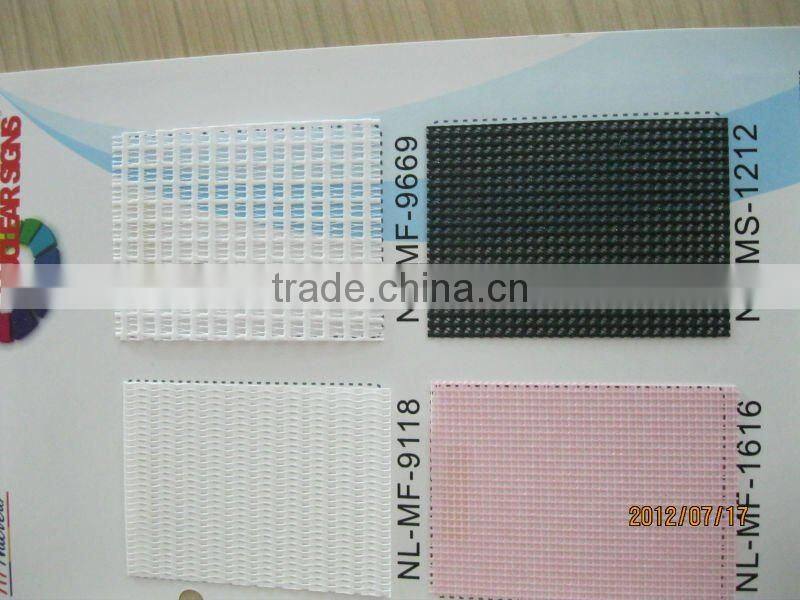

ART NO. | NL-MF-9119 | NL-MF-9113 | NL-MF-9118 | NL-MF-1812 | NL-MF-1212 | NL-MF-9669 | NL-MF-9920 | NL-MF-1616 |
Scrim(Dtex/Denier) | 1000*1000 | 1000*1000 | 500*1000 | 500*1000 | 1000*1000 | 1000*1000 | 500*1000 | 200*200 |
Yarn(Fd/Inch) | 9*9 | 9*13 | 9*18 | 18*12 | 12*12 | 6*6 | 9*20 | 16*16 |
Weight(KG/SQ.M) | 0.24 | 0.25 | 0.28 | 0.27 | 0.28 | 0.22 | 0.3 | 0.16 |
Width | 1.0-5.1 | 1.0-5.1 | 1.0-5.1 | 1.0-5.1 | 1.0-5.1 | 1.0-5.1 | 1.0-5.1 | 1.0-2.2 |
Packing:
Seaworthy craft paper with air bubble inside, or hard tube
Craft paper packing or optional hard tube packing.
-Applications:

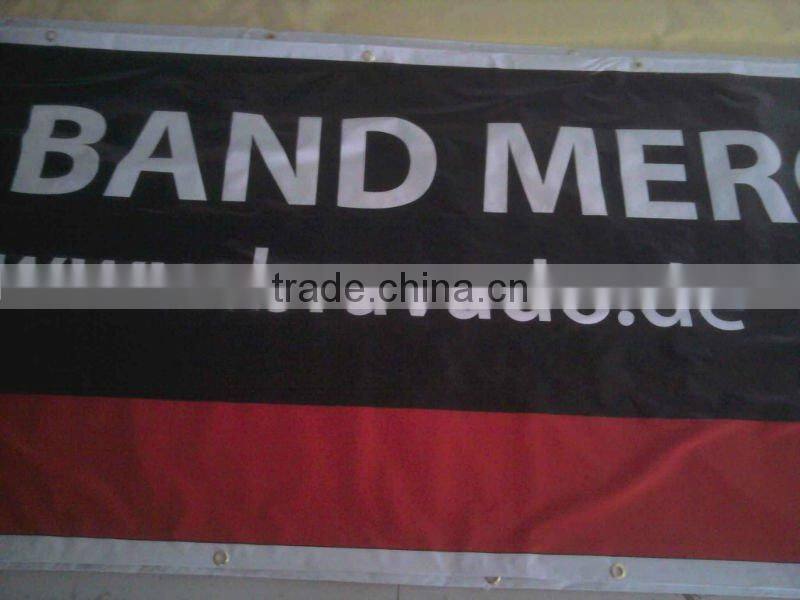

1. Billboards Building Murals Backdrop of exhibition booths, etc.
2. Applicable to EIF, HP-SCITEX, ARIZONA, Yaselan and other solvent based grant format digital printer.
3. For large billboards, banners and indoor or outdoor signage with silk screen and wide-format digital printing.
| ITEM NO. | Yarn Count | Width m | Thread Strength kg/3cm | Thread Strength kg/5cm | UNIT WEIGHT g/m2 | ||
| warp-wise | filling-wise | warp-wise | filling-wise | ||||
| NL-MF-2219 | 250D×250D 22×19 plain weave | 1.9 | 47 | 42 | 78 | 70 | 250g±10g |
| NL-MF-2219 | 1.9 | 47 | 42 | 78 | 70 | 300g±10g | |
| NL-MF-2219 | 1.9 | 47 | 42 | 78 | 70 | 380g±10g | |
| NL-MF-5857 | 500D×500D 18×17 plain weave | 1.9 | 78 | 70 | 130 | 116 | 390g±10g |
| NL-MF-5857 | 1.9 | 78 | 70 | 130 | 116 | 440g±10g | |
| NL-MF-1817 | 1000D×1000D 18×17 plain weave | 1.9 | 156 | 147 | 260 | 245 | 460g±10g |
| NL-MF-1817 | 1.9 | 156 | 147 | 260 | 245 | 510g±10g | |
| NL-MF-1817 | 1.9 | 156 | 147 | 260 | 245 | 645g±10g | |
