3 Layers Polypropylene Diffusion Roofing Foils

3 Layers Polypropylene Diffusion Roofing Foils photo-1
3 Layers Polypropylene Diffusion Roofing Foils photo-2
3 Layers Polypropylene Diffusion Roofing Foils photo-3
3 Layers Polypropylene Diffusion Roofing Foils photo-4
3 Layers Polypropylene Diffusion Roofing Foils photo-5
US$ 0.3 - 0.6 MOQ: 10000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Fedebrang
Model Number:
KDBG150
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name Fedebrang
Model Number KDBG150



info

3 layer breathable membrane(thermal laminated by non woven PP + waterproof and vapour permeable film + non woven PP).
"KangDa" waterproof membrane can protect the construction structure from being eroded by wind and rain and strengthen the gas tightness and water tightness as well as boast good breathability which expel water vapour out of the construction, thus avoiding mould and condensation. In this way, the functions of construction can be well protected, which guarantee the energy saving and durability and good living environment. Furthermore, the waterproofing membrane has low cost and small weight, ect and is now waterproof rolls which are easy to apply.



Specification
Weight(gsm): 80,90, 100, 115, 120, 135, 140, 160 and so on.
Width: 1.5M
Length: 50M or jumbo roll











Breathable membrane Benefits:

  1. Protect the thermal isolation of the roof/wall against unfavorable impact of environmental factor that might penetrate the external covering.(rain, snow, dust)
  2. Ensures the windproof of the roof/wall (prevents the loss of heat from the isolation layers caused by air circulation.)
  3. Micro-perforation permeates vapor to the outside, ensure the dryness of the isolation layer.(only dry isolation functions properly)
  4. Complete waterproofing, the membrane prevent the penetration of water from condensation or leaking in the covering.
  5. Resistant to mechanical damage (stretch and tearing)
  6. Stabilized, conforming to EU standards, resistant to UV radiation and excess temperatures.
  7. Does not propagate fire.
  8. Safe for environment and recyclable.









Breathable membrane Technical specifications:







Basic

Standar

Supreme

Surface weight

110g/m2

130g/m2

170g/m2

Tearing strength

lengthwise

200N/5cm

240N/5cm

300N/5cm

crosswise

155N/5cm

190N/5cm

220N/5cm

Water vapor permeability

1700g/m2/24h

3000g/m2/24h

1700g/m2/24h

3000g/m2/24h

1700g/m2/24h

3000g/m2/24h

Water resistance

W1

W1

W1

Structure

3 layers

3 layers

3 layers

UV resistance

6 months

6 months

6 months

Fire Retardant

B2

B2

B2

Operating temperature

-40°Cto80°C

-40°Cto80°C

-40°Cto80°C

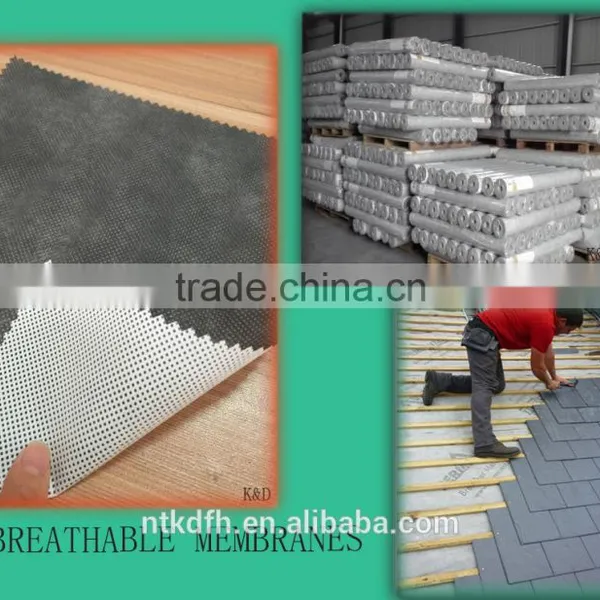

Breathable membrane pictures:

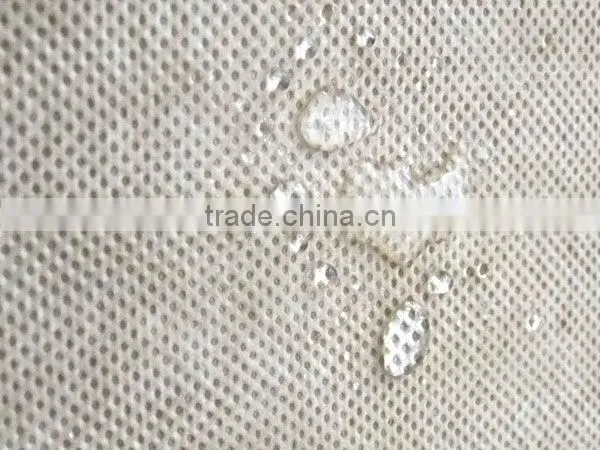

water-resistance

3 layers polypropylene Diffusion Roofing Foils

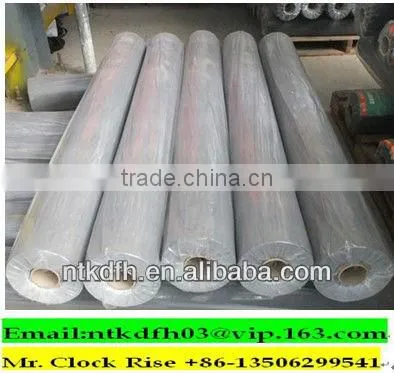

In jumb rolls

3 layers polypropylene Diffusion Roofing Foils

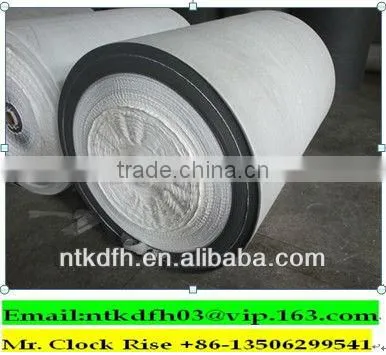

Normal Packing

3 layers polypropylene Diffusion Roofing Foils

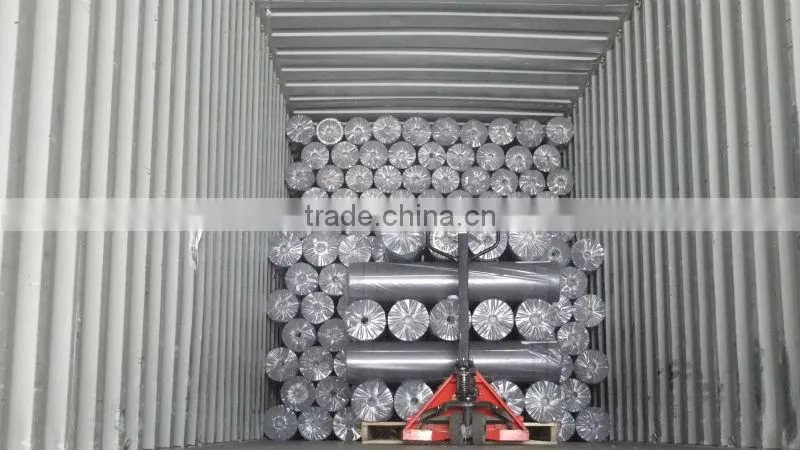

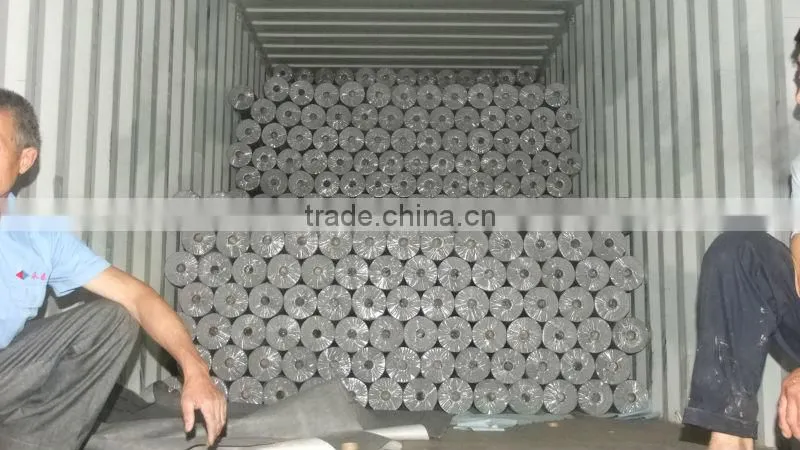

Loading pictures:

3 layers polypropylene Diffusion Roofing Foils

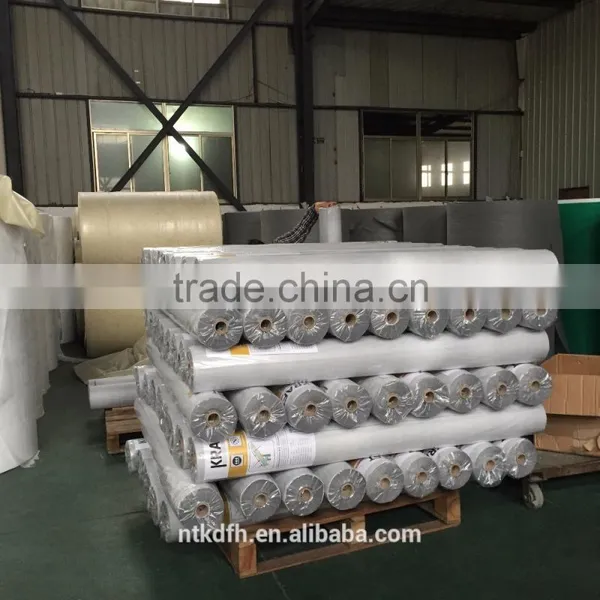

Packaging





3 layers polypropylene Diffusion Roofing Foils



Breathable membrane CE certification:







Certification2

3 layers polypropylene Diffusion Roofing Foils



Company Information

3 layers polypropylene Diffusion Roofing Foils

Nantong Kangda devotes roofing membrane since 2004, and after ten years of development, we have explored many kinds of composite membranes to meet varied market demand.

As Chinese first factory of breathable membrane, Nantong KangDa has been well known by both Chinese and European customers. We have the advanced technology and equipment from Italy. KangDa Brand breathable membrane quality now is on the top of China and the world.

Now our membrane have exported to many countries, such as Canada, USA, UK,and most of the South European. Stable quality is key to keep our customers for long term,and continous innovation is our weapon to stand on the top of market. We have a group of excellent senior management to control cost, hi-tech R&D personnel and skilled workers to ensure product quality, so competitive price and advanced quality can be combined together in our product.
