FRP Pultruded Grating Walkway

Specifications

1) corrosion/slip resistant
2) fire/impact retardant
3) high strength-to-weight ratio
4) easy to install and to maintain

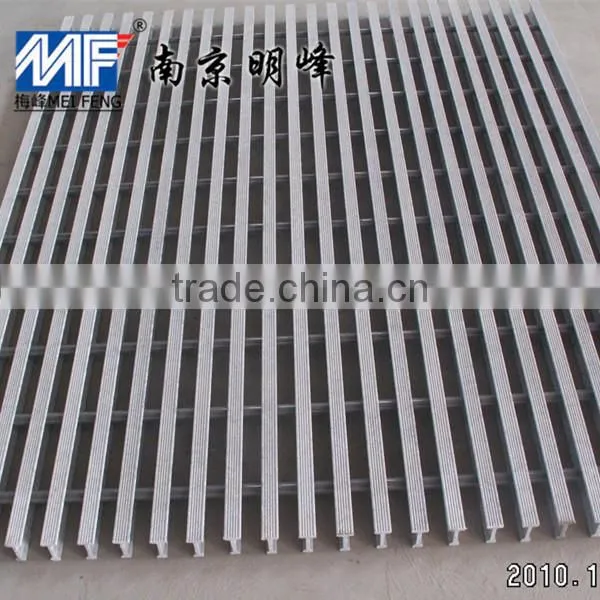

FRP  Pultruded  grating :

The FRP Pultruded grating is a kind of plank with interstice, made into H-section profiles and T- section profiles. They are used as bearing bar and connected by zigzag connection rod according. It has a lot of advantages, such as less weight and higher strength, antisepsis, antiskid, combating ageing, long usage lifetime, resisting plane and fragmentation. In its creation, fire is not used, and the FRP Pultruded is dielectric and is not electrostatic. At the same time, in real usage, it doesnt produce scintilla for impact. It is convenient to incise and install, and it has higher comprehensive benefit.
   Pultruded FRP grating is widely used in corrosive environment, such as acid-alkali platform, acid-alkali depot and ditch, pit of water treatment, filler board of cooling tower, etc. At the same time, the Pultruded FRP grating can be cranked into blocked cover board with skidproof surface according to customers' requirement.



Specifications of Pultruded Grating

Model	Thickness   mm	Width of upper edge mm		Width of interspace mm		Voidage   %	Estimating weight Kg/m3
1.5’’ I-6000	1.5’’	15		23		60	16.0
1.5’’ I-5000	1.5’’	15		15		50	19.0
1.0’’ I-6000	1.0’’	15		23		60	11.5
1.0’’ I-5000	1.0’’	15		15		50	14
1.0’’ T-6000	1.0’’	15		23		60	9
1.0’’ T-5000	1.0’’		15	15	50		11



Selection of reference

model	Longitudinal span(mm)
	500	600	700	800	900	1000	1100	1200	1300	1400	1500
	Allowable deflection is 5 ‰ of the longitudinal span(Kg/m)
1.0’’ T-5000	1438	825	515	334	239	173	126	99	76	60	50
1.0’’ T-6000	1150	600	412	275	191	138	101	79	61	48	40
1.5’’ T-5000	7900	4610	2890	1935	1360	988	742	560	442	359	286
1.5’’ T-6000	6010	3475	2198	1478	1039	753	577	448	350	282	230



Specifications of SMC Grating

model	Length*Width mm	Thickness mm	Mesh size mm	Estimating weight Kg/m3
G100SM	3660*1200	25.4	38.1*38.1	13.5
G150SM-A	3660*1200	38.1	38.1*38.1	19.0
G150SM-B	4026*1525	38.1	38.1*38.1	19.0
G200SM	3660*1220	50.8	50.8*50.8	25.0
G100RM	3660-1220	25.4	25.4*101.6	15.0
G150RM	3050*600	38.1	38.1*152.4	19.5



Connector:



I-channle:
