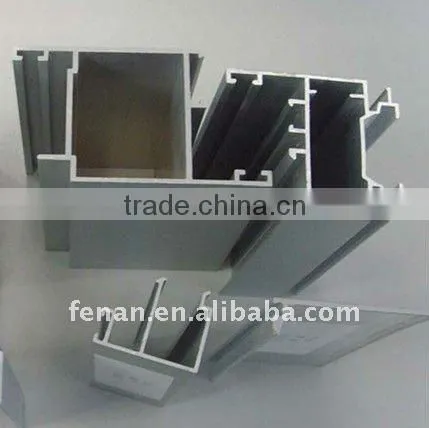

[Popular] Extrusion Profile Aluminium Window

Specifications

Extrusion Profile Aluminium
1.6063/6005 T5/T6
2.Mill finish, powder coated,anodized,electrophoretic
3.Capacity: 3000 ton/M

[Popular] extrusion profile aluminium window anodize profile





Our company FUJIAN FENAN ALUMINIUM CO., LTD is one of the biggest manufacturer of the aluminium extrusion for window, doors, industrial, tupe, pipe, light tool, and so on .The factory located in FUZHOU city covers 540000sq meters with about 1000 workers .We have done the aluminium business since 1988 years .We have ourself factoy, Design depart. QC, Sales Term.Our capacity is 6000 tons per month.



1. Material:6063/6063A/6065/6061/6043 with T5/T6
2. Surface treatment :Mill finish/anodize/powder coating /wood-grained/Electripoese.
3. Certification:ISO9001/14004;OHSAS18001
4. Capacity:6000 tons per month
5. Various product: industrial aluminium profile , Aluminium profile for windows and doors,aluminum section for construction , aluminum extrusion profiles of  furniture as per customer`s drawings and samples.
6.  Aluminum window and door style: aluminum aliding window and door,aluminum side hung windows and doors,aluminium shutter,aluminum thermal break window and door,aluminum curtain wall.

   Chemical composition

   Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
   6063	0.2-0.6	0.35	0.1	0.1	0.45-0.90	0.1	0.1	0.1	0.15	Rest
   6061	0.4-0.8	0.70	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest
   6005	0.6-0.9	0.35	<0.1	<0.1	0.40-0.6	<0.1	<0.1	<0.1	<0.15	Rest



   Mechanical property

   Alloy	Condition	Tensile strength	Yield strength	Elongation	Vickers hardness
   6061	T6	>265Mpa	>245Mpa	>8%
   6063	T5	>160Mpa	>110Mpa	>8%	HV>58 HW>8
   	T6	>205Mpa	>180Mpa	>8%



   Colored anodized profile

   Grade	Thickness of film		Hole scaling quality of oxide layer
   	Average thickness	Local thickness	P. Cr acid-erosion weight less method
   AA10	>10um	>8mm	<30 mg/d m2
   AA15	>15um	>12um



   Electrophoretic coating profiles

   Grade	Anodic oxide film		Thickness of paint film	Thickness of complex film	Film hardness
   	Average thickness	Local thickness
   A	>10um	>8um	>12um	>21um	>3um
   B	>10um	>8um	>7um	>17um	>3um



   Powder coating & wooden-grained profile

   Coating thickness	Coating impress rigidity	Adhesive force of coating layer
   40-120um	Indentation hardness>80	0 grade



   Delivery date

   a). Die/Mould:10 to 12 days after down payment & drawings confirmed.

   b).Production: 15-20 days after sample confirmed & down payment for the second order ,and for the first order it need about 20-25days for one container.

   c).Package:standard export packing,that is Epe foam to seperat the profiles and the outside to use the Kraft paper for each bundle ,or carton box or pallet or according to client request



OEM are welcome,and inquiry of aluminium are welcome .

Looking forwarder to cooperation wih you .

Sales Depart. Marana
