PV Module Frame
- 3000 Ton / Tons per Month
- Fuzhou China
- T/T
You May Like
-
Special Design Glass House Aluminium Profiles Factory
-
Extra Heavy Duty Classic English Style steel and glass houses ,used glass sunroom
-
Fashionable Professional fashionable design sunroom
-
Good Price New Style aluminum profile with tinted lowe glazing sunroom
-
High Quality Fashion aluminum villa sunroom and winter garden
-
Best Price High Quality aluminum garden sunroom design
Product Details
Place of Origin | Fujian, China | Grade | 6000 Series | |
Temper | T3-T8 | Application | Decorations | |
Shape | Angle | Alloy Or Not | Is Alloy | |
Model Number | FA-1070 | Brand Name | FENAN |
Product Description

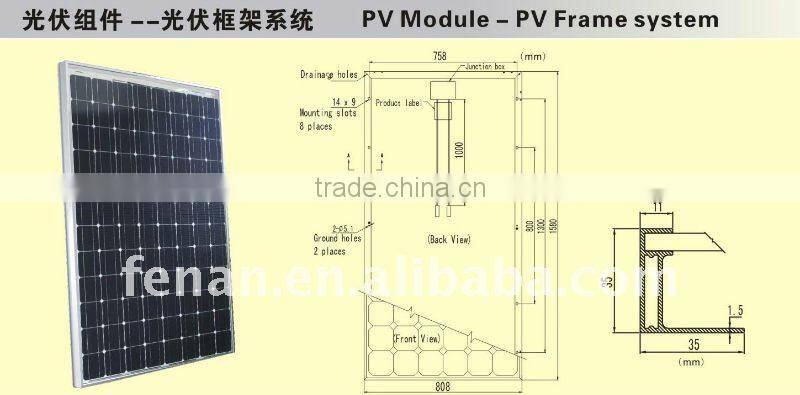

PV Module Frame
---- Solar Frame -----
PV Frame System is an aluminum frame system to protect solar cell panel. Various surface finishes not only ensure the intensity of frame system, but also strengthen the functions and visual effect. Unique interface makes the installation easy and convenient. A number of frame specifications can meet different integration by cells.
Features:
- Material: Aluminum alloy 6063 T5/T6
- To fix and seal the solar cell panel
- Prolong the panel’s working life
- Specially designed drainage holes and rigid construction
prevent the frame from deforming and breaking
- Easy to transport and installation
- Quality Assurance: 10 years
- Multiple dimensions and specifications:
1650 x 992 mm / 1635 x 990 mm
1580 x 808 mm / 1250 x 545 mm
824 x 545 mm / 620 x 286mm
or customized dimensions
Surface Finish:
* Anodized, anodized layer: 15micron
* Powder coated, coating layer: 80micron
* Electrophoresis, electro-layer: 25micron
* Sandblasting
* Color: Silver, Black, Champagne, Brown or as request
Technical Data:
Introduction on surface treatment of Aluminum profile:
Mill finish | Finish of aluminum itself, with a natural anodic layer formed in the air, weak corrosion resistance. Shine metal sliver |
Anodizing | Through an eletrical process to form a certain layer of anodic layer on the surface of profile. Available in different colors like metal silver, champagne, darkbronze, black, and the same color with mette effect |
Electrophoresis | Base on anodized process, an extra transparent film is formed to make the surface clearer and look bit of shining, with very good corrosion resistance.Available in different colors like metal silver, champagne, black, and the same color with mette effect. |
Powder coating | The powdered paint is electrostatically charged and sprayed onto the part, to form a thick layer to protect the surface. With very good corrosion resistance,Available in all kinds of colour |
Wooden grain | New technology in finishing to form a texture look like real wood.Available in types of wood pattern. Handtouch or film transfering are both available. Customized accepted. |
Polishing | By buffing and chemical process to form mirror like finish, suitable for decorative application. Available in all kinds of color |
Brushed | By brushing and chemical process to form shining with line, suitable for decorative application. Available in all kinds of color |
1. Why to choose our factory? ---Our Advantage
With more than 27 years aluminium profiles production experience and more than 1000 staffs!!!
we always do the best to support our clients' development in order to be mutually benefitial for long terms business.
PROFESSIONAL, CONSCINETIOUS, GOOD QUAILITY products with competitive price and good services are the most we always focus on.
All our products are international standard,and obtain customer certificate,like BV,Soncap,ISO!
2. How about the quality and price? ---Our Innovation
QUALITY:
We have more than 1000 staffs and imported lots of highly advanced production equitment from abroad.
80% of our staffs have worked for our factory for more than 10 years. 20% of them are responsible for technical and quality inspection process.
We strictly apply NATIONAL STANDARD and international standard on our products to make sure that they can sustain a high level quality. ,obtaining customer certificate,like BV,Soncap,ISO,SGS,CE,JIS,AS,NZS,and advance standard all over the world to make sure our products maintain the high level in this field.For a long term credit and development,quality is the first we are focusing.
Price:
All our products ship directly from our factory,of ourse,our price is competitive and affordable with high quality.
1. Professional production base for casing and profiles manufacturing.
2. Strict quality assurance and inspection measures will never let any imperfect products be out of our company.
3. Manufacture according to GB5237-2008, QUOLANOD, JIS or other International specifications.
4. Awarded various honors, such as "China Top 10Manufacturers in Aluminium Profile", "National Quality Exemption", "Famous Brand", etc by the government and enjoy a good reputation among overseas markets.
5. Strong R&D team and over 100 national patents.
