Product: 2013 hot selling !!!Fabulous and factory price industrial aluminium extrusion profiles
Key Word: factory price industrial aluminium extrusion profiles
| FUJIAN FENAN ALUMINIUM CO.,LTD. | |||||||
| Established | 1988years | ||||||
| Certificate | ISO9001,14001 | ||||||
| Extrusion line | about 20 ,machine max 2700 tons | ||||||
| Month capacity | 4500 tons | ||||||
| Discharge port | Fuzhou | ||||||
| Payment term | 30% deposit advance ,balance should be paid against the copy of B/L | ||||||
| Max extruding OD | 300mm | ||||||
| Thickness | above 0.8mm | ||||||
| Oversea market | Turkey,Ukraine,Singapore,Asutrial,Demark,France,Romania,Cronia. | ||||||
| Ratio of domestic /export | 72%,28% | ||||||
| Production Machine | blast furnace,extrusion line,Temper machine,verticality& horizontal powder coating ,Anodize treatment line | ||||||
| Deep processing mathicne | cutting and drilling bending manchine and so on. | ||||||
| Scope used | For windows ,doors,industrial,tube, pipe,angle, light tool ,solar pallet | ||||||
| construsion profile | doors, windows, fence, screen, curtain wall, handrail | ||||||
| Industrial profile | solar panel frame, exhibit shelf, LED frame, auto parts,partition, wardrobe, etc | ||||||
| common profile | tube.pipe,U channel,angle.T profile etc | ||||||
| Alloy/Temper | 6063/6061/6005,ect T5/T6 | ||||||
| Surface treatment | Mill finish/anodize/powder coated/wood-grained,electrophoresis | ||||||
If you have any questions or concerns,don't hesitate to contact Sarah(Skype:sarahshang88)
Products: 2013 hot selling !!!Fabulous and factory price industrial aluminium extrusion profiles
--Yous any inquire will get a prompt reply with 12hours from our skilled sales.
| 1.General Chemical Composition of the aluminum tube | ||||||||||
| Aluminum Grade | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | impurity | Al |
| 6063 | 0.2-0.6 | <0.35 | <0.1 | <0.1 | 0.45-0.9 | <0.1 | <0.1 | <0.1 | <0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | <0.15 | 0.8-1.2 | 0.04-0.35 | <0.25 | <0.15 | <0.15 | Rest |
| 2.Mechanical Properties of Sections under Room Temperature | ||||||||||
| Aluminum Grade | Temper | Wall Thickness | Resist Pull Point(Mpa) | Stretch (Rpo.2 Mpa) | Stretch Rate | Webster Hardness | ||||
| 6063 | T5 | All | 160 | 110 | 8 | 8 | ||||
| T6 | All | 205 | 180 | 8 | ||||||
| 6061 | T4 | All | 180 | 110 | 16 | |||||
| T6 | All | 265 | 245 | 8 | ||||||
| 3.SurfaceTreatment of Sections | ||||||||||
| (Class) | (μm),not diminish than | acid-resistant | abrasion resistance | |||||||
| (Min-average film thickness) |
(Min-part film thickness) |
CASS |
(S) |
(f, g /μm) |
||||||
| (h) | Class | |||||||||
| AA10 | 10 | 8 | 16 | ≥9 | ≥50 | ≥300 | ||||
| AA15 | 15 | 12 | 32 | ≥9 | ≥75 | ≥300 | ||||
| AA20 | 20 | 16 | 56 | ≥9 | ≥100 | ≥300 | ||||
| AA25 | 25 | 20 | 72 | ≥9 | ≥125 | ≥300 | |
|||
Aluminium extrusion sections for windows and doors
1. Raw materials varies from pure aluminum to alloy duralumin,
2. Material Type: 6063A,6063,6061,6060,6005, etc
3.Temper: T5 / T6;
4.Surface Treatment: Anodized , Powder Coating, Electrophoresis, Wooden-pattern transfer, Thermal-break, Sand blasting, mechanical polishing,etc;
5.Color: Any color as per customer demand;
6. Widely used in construction,decoration and industry
7. Packing: Plastic film and kraft paper wrapped, or as per customers requirement
Industrial Aluminium Profiles
1. Various sections for industrial application--heat radiators, flow line, elevators, textile industry, solar energy, vehicle lamps, medical treatment, ship building industry, etc
2. Raw materials varies from pure aluminum to alloy duralumin,
3. Material Type: 6063A, 6063, 6061,6060,6005, etc;
4. Heat Treat.: T5, T6
6. Color: Any color as per customer demand;
Key Word:factory price industrial aluminium extrusion profiles

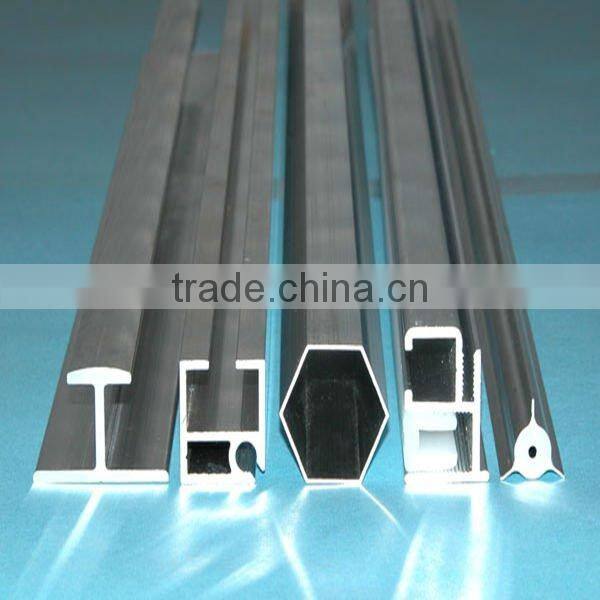

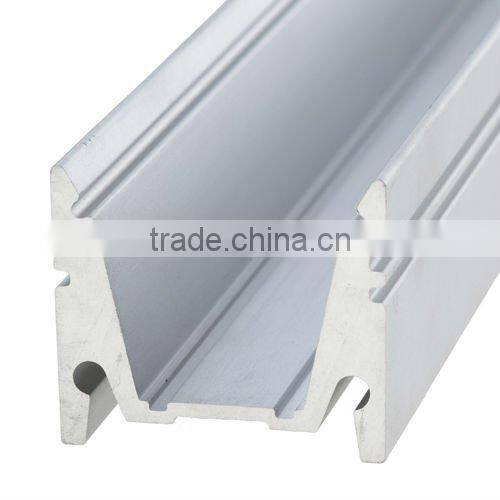

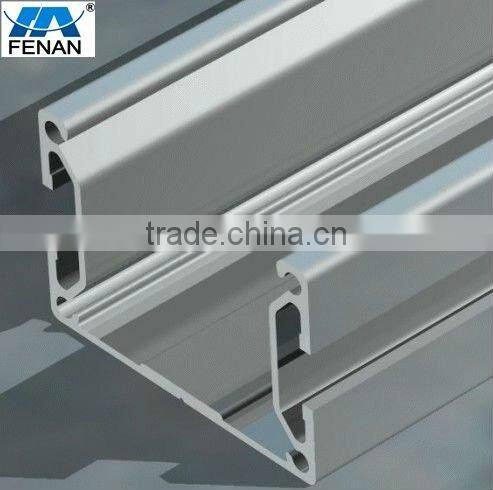

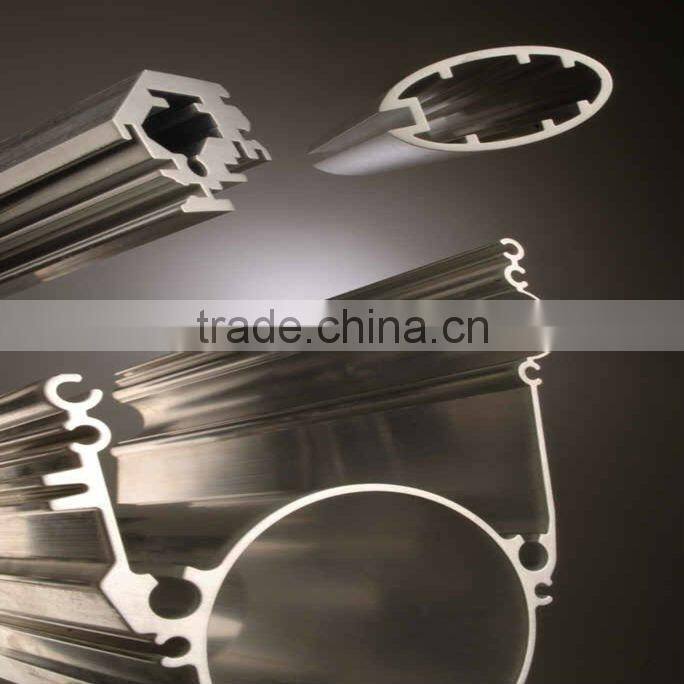

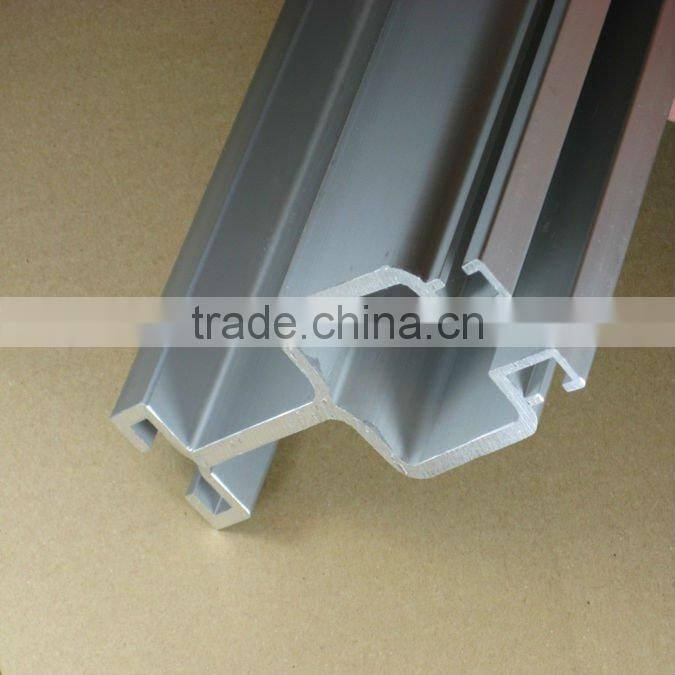

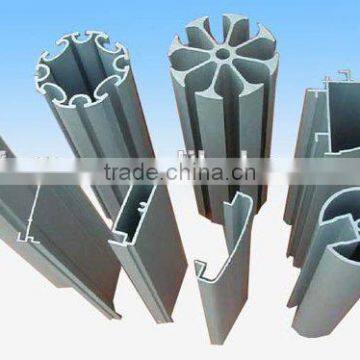

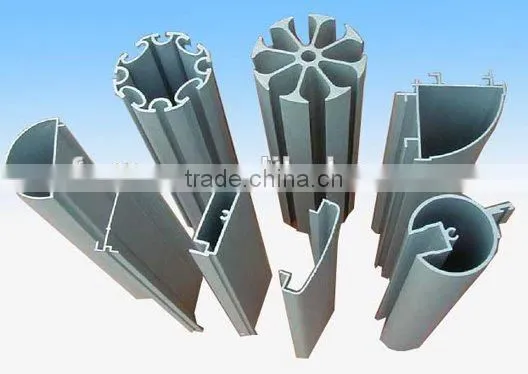

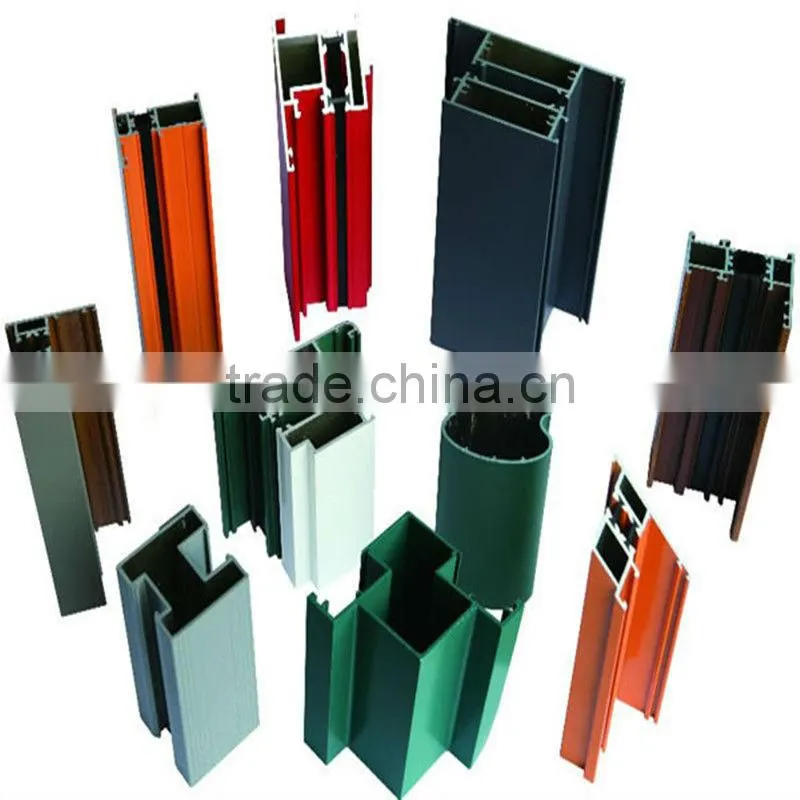

Product pictures:
-- What kind of products and service we can provide ---
- Aluminum Profiles for doors, windows, fence, screen, curtain wall, handrail, partition, wardrobe, etc
- Industrial Aluminum Profile, such as solar panel frame, exhibit shelf, LED frame, production facility, auto parts, etc;
- Doors and Windows System, include sliding door, side hung window, tilt and turn window, etc
- Deep Processing Ability for aluminum and S/S products: Fabrication, Drill hole, milling, de-burr, chamfer, stretch bending, welding and so on;
- Engineering design and Consult PV Module Frame System is an aluminum frame system to protect solar cell panel. Various surface finishes not only ensure the intensity of frame system,but also strengthen the functions and visual effect. Unique interface makes the installation easy and convenient. A number of frame specifications can meet different integration by cells.Feature:- Material: Aluminum alloy 6063 T5/T6- Finish: Mill Finish,Clear Anodized,Powder coating,Elctrophoresis, Sanblasted- To fix and seal the solar cell panel- Prolong the panel’s working life- Specially designed drainage holes and rigid constructionprevent the frame from deforming and breaking- Easy to transport and installation- Quality Assurance: 10 years- Multiple dimensions and specifications:1650 x 992 mm / 1635 x 990 mm1580 x 808 mm / 1250 x 545 mm824 x 545 mm / 620 x 286mmor customized dimensionsFA868 Sliding Windows & Doors1. Inner sash superposition materials are designed with handles and on a double-hollow basis. And window structure is even firmer by virtue of the design of windproof superposition;2. Tough, durable and luxury crescent-shape window locks uniquely manufactured by Fen An company are adopted to naturally obstruct the noise of wind;3. The structure of high / low double reflux troughs is adopted to create high fall between internal and external water levels;
4. The inner frame closely sticks to the lower horizontal airtight adhesive tape of the outer frame;5. Specially assembly include Lock bumper, Burglar alarm, Crescen lock, Double felt strips, Multifunctional drain hole, Waterproof shim, with multi-protectionFA868 New-style Sliding Doors & Windows1. Wider Track System is designed to strengthen the carrying capacity, and impede air infiltration effectively, with the hooked design, make the rainwater backset under track to reduce the water pressure;2. Upper/lower seal stripes set inward to ensure always keep contact with upper/lower sliding track, reinforce the airtight performance;3. Particular water-proof design in edge seal cover reduce the water infiltration in significance;4. Frame-Sash Bead adopting lower groove is facilitate with assembly, to increase the flexibility of edge seal cover;5. Upper/lower slider with cover can be functioned as fixture profile that reduce the window sections Thermal-break Aluminium Profiles
FENAN Thermal-break Aluminium Profiles adopt advanced PA nylon 66 strip as the material for thermal-break bridge, more tough and durable than rubber and plastic, and thus reinforce the performance of air tightness and watertightness. This kind of aluminium profiles are widely used for the installation of doors, windows and curtain wall, especially in cold area.
introduce our company:
Our Culture:
FenAn logo is a internationalized letter symbol, and it evolved from “FA” letter. Whole shaping indicated a Chinese word “xing” which symbolized flourishing and development,Three oblique lines formed a triangle which is firm, stable and grandiose symbolizing that a giant keep improving in the future,characteristic arc line which originated from the skyline symbolizes unlimited prospect,Blue—image color of FenAn, represents technological & actual working style of FenAn. The blue in different deepness shows upward spirit of FengAn.
About US:
FENAN Group is one of the largest production bases in China producing aluminum profile,door and window system and stainless steel products. Established in 1988, the company today covers over 140,000 sq. meters in Fuzhou city,with an annual output capacity in excess of 30,000 metric tons. We support various industries,serving building,furniture, solar energy system, machinery,electricity,computer,automotive, telecommunications,advertising,sport industries. By right of our four subsidiary companies,we provide high quality,customized products,efficient service,technical support,and value-added services to our worldwide customers.
Our products are ISO9001&ISO14001 certified, and was listed in The Main Building Materials Suppliers and Well-known Building Materials of China and the Top 50 Recommended Products for construction engineering enterprises.
We are positive to introduce senior talents and possess a competent professional team in production, technology,management and operation. Through years’ efforts, FENAN Group was awarded Fujian Famous Brand, Double Guarantee Enterprise in Quality and Service Credit, Creditable Enterprise,Creditable Products of Fujian province by Authority.
We are dedicated on pursuing the super excellence on the principle of ‘Quality foremost, Customers foremost, Service foremost and Credit foremost’. We must build first-class enterprise and well-known brand by high-grade standard and high quality.
