Specifications

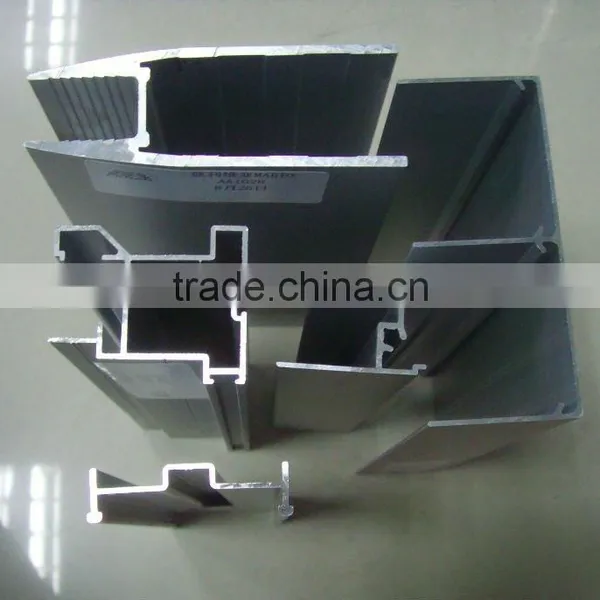

guide high for sliding door1. Material: Alu.6063 T5
2. Quality Insured:10 years
3. Finish: mill/anozided/powder coat
| FUJIAN FENAN ALUMINIUM CO.,LTD. | |||||||
| Alloy/Temper | 6063/6061/6005/6043 ,T4/T5/T6 | ||||||
| Scope used | For windows ,doors,industrial,tube, pipe,angle, light tool ,solar pallet | ||||||
| construsion profile | doors, windows, fence, screen, curtain wall, handrail | ||||||
| Industrial profile | solar panel frame, exhibit shelf, LED frame, production facility, auto parts,partition, wardrobe, etc | ||||||
| common profile | tube.pipe,U channel,angle.T profile etc | ||||||
| Surface treatment | Mill finish/anodize/powder coated/wood-grained,electrophoresis | ||||||
| Month capacity | 8000 tons | ||||||
| Oversea market | Turkey/Ukraine/Singapore/Asutrial/Demark/France/Romania/Cronia/Arica/Bolivia | ||||||
| Discharge port | Fuzhou | ||||||
| payment term | 35% deposit advance ,balance should be paid before shipment | ||||||
| Max extruding OD | 230mm | ||||||
| Thickness | above 0.9mm | ||||||
| Ratio of domestic /export | 72%/28% | ||||||
Our advantage:
1.Low cost: we do the completed production from aluminum raw material(ingot) to machining and fabrication for solar system
2.Superior Quality: ISO certified quality control to ensure the product quality
3.Advanced extrusion and CNC machines. Machining precision can reach 0.02mm
Primary Technical Data
Chemical composition
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.90 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
6061 |
0.4-0.8 |
0.70 |
0.15-0.40 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
6005 |
0.6-0.9 |
0.35 |
<0.1 |
<0.1 |
0.40-0.6 |
<0.1 |
<0.1 |
<0.1 |
<0.15 |
Rest |
Mechanical property
Alloy |
Condition |
Tensile strength |
Yield strength |
Elongation |
Vickers hardness |
6061 |
T6 |
>265Mpa |
>245Mpa |
>8% |
|
6063 |
T5 |
>160Mpa |
>110Mpa |
>8% |
HV>58 HW>8 |
T6 |
>205Mpa |
>180Mpa |
>8% |
|
Colored anodized profile
Grade |
Thickness of film |
Hole scaling quality of oxide layer |
|
Average thickness |
Local thickness |
P. Cr acid-erosion weight less method |
|
AA10 |
>10um |
>8mm |
<30 mg/d m2 |
AA15 |
>15um |
>12um |
|
Electrophoretic coating profiles
Grade |
Anodic oxide film |
Thickness of paint film |
Thickness of complex film |
Film hardness |
|||||
Average thickness |
Local thickness |
||||||||
A |
>10um |
>8um |
>12um |
>21um |
>3um |
||||
B |
>10um |
>8um |
>7um |
>17um |
>3um |
||||
Powder coating & wooden-grained profile
Coating thickness |
Coating impress rigidity |
Adhesive force of coating layer |
40-120um |
Indentation hardness>80 |
0 grade |
Your any inquiry on our products will be replied by our skilled sales in 24 hours.
