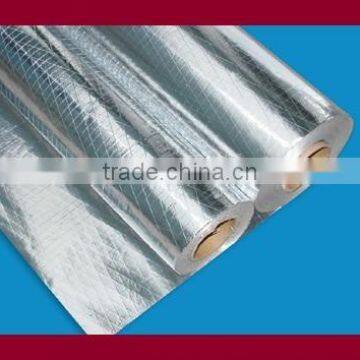

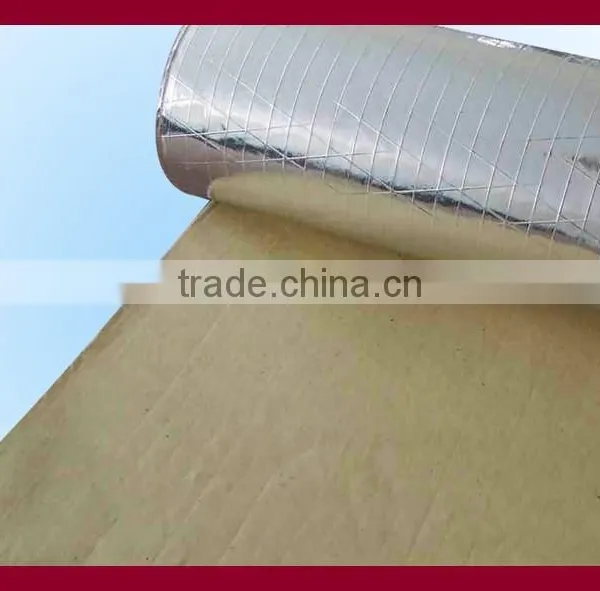

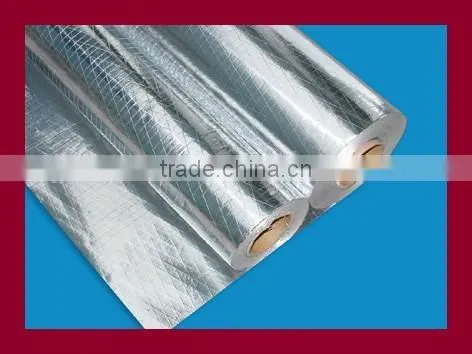

thermal isolation Aluminum Foil scrim Kraft Paper building insulaton materials for roof underfloor wall
Quick Details
| Type: | Place of Origin: | Brand Name: | |||
| Model Number: | Colour: | Material: | |||
| R-value: | Thickness: | Flammability Index: | |||
| Working Temperature: | Thermal conductivity: | Bursting Strength: | |||
| Reflectivity: | Water Vapour Transmission: |
Packaging & Delivery
| Packaging Details: | foil scrim kraft insulation is packed with paper core in Seaworthy PO bag,then put on pallets |
| Delivery Detail: | 7 days |
Specifications
aluminum foil paper,foil back insulation paper
1.Reflects 97%
2.Widely uesd for Steel Frame construction
3.foil faced paper
It is a light duty, Eco grade D/S foil Insulation. It is ideally used as sarking and insulation under roofs , in walls behind cladding or under timber floors , for residential and commercial building. Combining with glasswool or foam insulation, it is excellent as a vapor barrier for air-conditioning ducts, pipes and vessels.
Material Structure: AL/3 way scrim/Paper AL | ||
Paper Weight:60gsm ( Standard, can be Customized) | ||
Roll Size:1.2m*50m ,1.25*50m (can be customized) | ||
PROPERTIES | TEST DATA | UNIT |
Thickness | +-0.15 | mm |
Weight | +-110 | gsm |
Emissivity | 0.03-0.04 | COEF |
Thermal conductivity | 0.037 | w/m0 |
Bursting Strength | 90 | N/25mm |
Reflectivity | 96-97 | % |
Water Vapour Transmission | 1.15 | Ng/N.S |
Corrosion | doesn't generate | |
Tensile Strength(MD) | 144.4 | N/25mm |
Tensile Strength(TD) | 46.3 | N/25mm |
1) High heat reflection & low thermal conductivity
2) Heat preservation & energy saving
3) Moisture barrier & waterproof
4) Low flammability
5) Strong, durable & corrosion resistance
6) Light weight & easy to install
7) Clean, safe and fibre free & no odour and toxicity, totally environmental-friendly
- Metal & Steel Buildings
- Homes
- Roof Underlayments
- Cathedral Ceilings
- Crawl Spaces
- Hot Water Heaters
- Basement Walls
- Floors
- Garage Doors
- Concrete slabs
- Driveway snow melts
- Pole barns
- Post frame buildings
- Poultry barns
- Animal kennels
- Temperature sensitive storage areas
