Product Details
Material: | Laminated Material | Material Structure: | APET+CPE/APET+CPP | Industrial Use: | Other, Electronic |
Feature: | Antistatic | Surface Handling: | Aqueous Coating | Custom Order: | Accept |
Place of Origin: | Jiangsu, China | Brand Name: | Junyue | Model Number: | JY-S01 |
Product Description

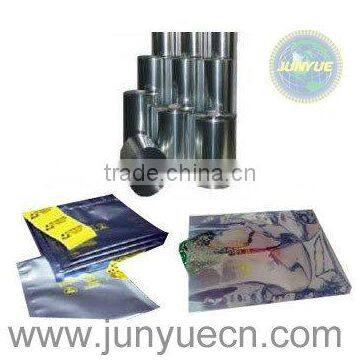

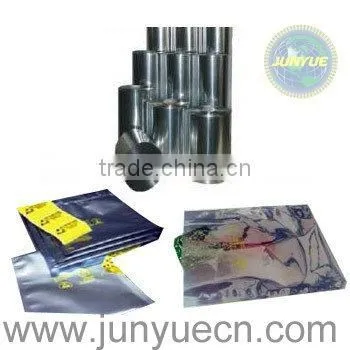

Antistatic shielding bag
Antistatic shielding bag contains four layers , including static dissipative polyester outer layer, PE.aluminum shielding middle layer and anti-static polyethylene inner layer.
Features:
1) Anti-static bags are made from complex materials, silver laminated, (Static dissipative polyester/PE/aluminum shielding/anti-static polythylene)
2) Can be anti-static and static shielding
3) Provides protections for electronic components
4) Suitable for packing static sensitive parts, such as computer hardware, and CPU.
Technical parameters
No. | Item | Unit | Test standard and index |
1 | Metal layer resistance | ohm/sq | <100 |
2 | Metal layer optical transmission | Optical density | 40%-0.4 optical density |
3 | Surface resistivity | Ohm/sq | <1010 |
4 | Time for static removal | 5000-0V | |
5 | Friction static | E1A541 Appendix C | TriboelectricNanocouIombs |
Avg. | Quartz<13n/in Tefion.<13n/in | ||
6 | Capacitance release | Voltage difference -E1A541 | <10V |
7 | Anti-erosion | FTMS 101 C | No visible spots FTMS 101 C Method 3005 |
8 | Tensile strength | Ibs./in | ASTM D882 >18 |
9 | Tear initiation | Ibs./in | ASTM D1004 >2.5 |
10 | Puncture resistance | P.S.I | ASTM D3420 >100 |
11 | Tear resistance | Ibs./in | ASTM D882 > 8 |
12 | Oxygen barrier | CC/100in-2/24hrs | ASTM D 3985 <0.5 |
13 | Heat seal temperature | F | 250-375F |
14 | Heat seal pressure | P.S.I | 30-70 |
15 | breaking tensile force N/15mm | N/15mm | GB/96-04-10 |
16 | Breaking elongation rate | % | GB/96-04-10 |
17 | Laminating strength | N/15mm | GB/96-04-10 |
18 | Sel strength | N/15mm | GB/96-04-10 |
19 | Size | GB/96-04-10 | Thickness ±10%; length ±3 mm; width ±2 mm |
20 | Appearance | GB/96-04-10 | No delamination, burst seal, wrinkle, warp, break, foreign particle adherence, air bubble beyond sealing diameter≤3mm |
Application : widely used for packing PC board , computer main board , sound card , VGA card, network card and static sensitive electronic devices.
This kind of bag can keep components sensitive to static away from the potential static danger to the largest extent. Its special four-layer structure can create an inductive cover to separate the goods inside from the static field. Furthermore, the inner layer is made from polyethylene or polypropylene which can avoid static generation inside the bag. In addition, this kind of hot seal bag is translucent, so the goods inside can be easily recognized from outside. It’s surface resistance is ≤ 108-1010Ω This product can also be printed with characters, image and trademark according to customers’ requirements under the condition that it does not impinge the intellectual property of others. It helps to promote the image of enterprise
