Electrostatic Shielding Bag

FOB Price

Negotiable / Piece

50000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, APET0.012/CPE(CPP)0.06	Industrial Use	Other, Packaging, Protection
Feature	Antistatic	Surface Handling	Other, This product can be printed with characters, image and trademark.
Custom Order	Accept	Place of Origin	Jiangsu, China
Brand Name	Jun Yue /Joy You	Model Number	JYS-B-01

Electrostatic shielding bag:Can protect things in the bag isolated to electrostatic field. It has no acid amide and silicone oil

Product name:Electrostatic shielding bag

Features:

Static shielding bag can keep components sensitive to static away from the potential static danger to the largest extent.
The inner layer of static shielding bag is made from polyethylene or polypropylene which can avoid static generation inside the bag.
This kind of hot seal bag is translucent, so the goods inside can be easily recognized from outside.
It can be widely used to protect static sensitive devices like circuit boards and other electronic components, especially with exposed semi-conductors.
Its surface resistance is 10⁸-10¹⁰Ω.
Its structure has two types: APET/CPE and APET/CPP, which can be chosen by our customers.
This product can also be printed with characters, image and trademark according to customers’ requirements under the condition that it does not impinge the intellectual property of others which helps to promote the image of enterprise.(The copper etchin fee for printing is covered by the buyer, but if you become our long-term customer and you don’t change your design of characters, there’s no copper etchin fee any more.)
The thickness of the bag can be between 0.05-0.2mm according to customers’ requirements.
Our bags can be made into different types, such as zip-lock, open-end, seal-top etc. according to your orders.
The size can be made by your order. But as we charge by the square meter, so as not to increase the cost, please measure your parts carefully and allow wiggle room.
Notice: We can’t fully guarantee that the bag is 100% vacuumized.

Technical parameters:

	Item	Unit	Test standard and index
1	Metal layer resistance	ohm/sq	<100
2	Metal layer optical transmission	Optical density	40%-0.4 optical density
3	Surface resistivity	Ohm/sq	<1010
4	Time for static removal	5000-0V	<0.01 Sec. FTMS 101 B Method 4046
5	Friction static	E1A541 Appendix C Avg.	TriboelectricNanocouIombs Quartz<13n/inTefion.<13n/in
6	Capacitance release	Voltage difference -E1A541	<10V
7	Anti-erosion	FTMS 101 C	No visible spots FTMS 101 C Method 3005
8	Tensile strength	Ibs./in	ASTM D882 >18
9	Tear initiation	Ibs./in	ASTM D1004 >2.5
10	Puncture resistance	P.S.I	ASTM D3420 >100
11	Tear resistance	Ibs./in	ASTM D882 > 8
12	MVTR	gm/100in-2/24hrs	ASTM E 96 <0.2
13	Oxygen barrier	CC/100in-2/24hrs	ASTM D 3985 <0.5
14	Heat seal temperature	F	250-375F
15	Heat seal pressure	P.S.I	30-70
16	breaking tensile force N/15mm	N/15mm	GB/96-04-10
17	Breaking elongation rate	%	GB/96-04-10
17	Breaking elongation rate	%	GB/96-04-10
18	Laminating strength N/15mm	N/15mm	GB/96-04-10
18	Laminating strength N/15mm	N/15mm	GB/96-04-10
19	Seal strength	N/15mm	GB/96-04-10
20	Size	GB/96-04-10	Thickness ±10%; length ±3 mm; width ±2 mm
21	Appearance	GB/96-04-10	No delamination, burst seal, wrinkle, warp, break, foreign particle adherence, air bubble beyond sealing Φ≤3mm

Styles: custom style are welcome

Size: the size is customerized

Printing: we offer printing service (charge seperately)

Price: the price is based on the size, materials, colors etc.

Samples: available

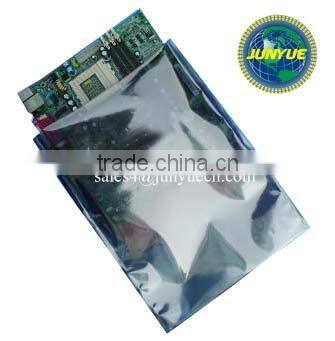

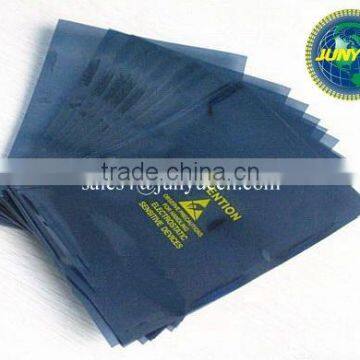

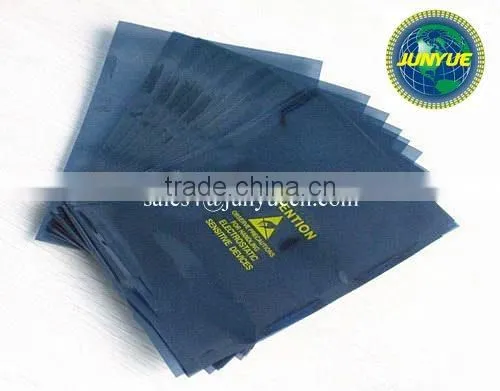

Note: the picture is just for your reference
