1Be made up of mixing system, batching system, electric control system, storage silo2Market:Africa ,US
3ISO9001,CE

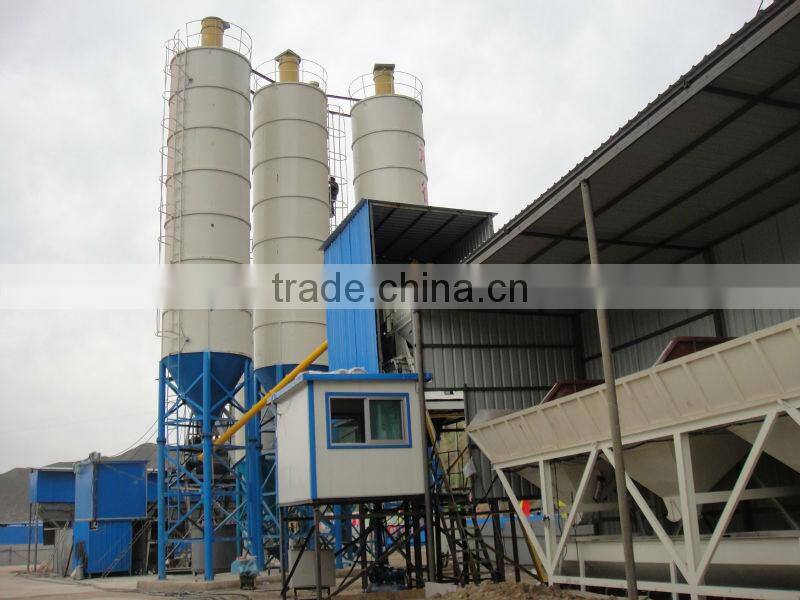

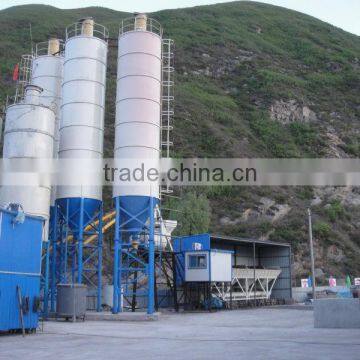

Concrete mixing plants series HZS are second-order automatic or semi-automatic concrete complete sets of equipments. One concrete mixing plant is made up of mixing system, batching system, electric control system, storage silo, powder conveyer screw, etc. They can be used for large and medium-sized building sites, prefabricated factories, concrete manufacturers, etc. They can be divided into simple (centralized control) and standard according to different electric control system.
Products features
The mixing console is double-horizontal-shaft forced type, good mixing quality and efficient.
Combined structure. It is easy to be moved. Complete engine set installation
The mortar aggregate, powder, liquid aggregate are measured by electronic balance, so the batching precision is high.
The electrical control system adopted imported electronic components. They have reliable performance. It is convenient to operate.
COMMODITY NAME | concrete MIXing plant |
MODEL | HZS50 Simple type |
MAX.PRODUCTIVITY | 50M3/H |
SPECIFICATION | 1. centralized control 2. discharging height :3.8m |
mixing console | JS1000 |
Brand name | Tiema |
Place of origin | China |
Measuring Precision of the water(%) | ±2 |
Measuring Precision of cement(%) | ±1 |
Measuring Precision of admixture(%) | ±2 |
the precision of aggregat(%) | ±2 |
Max.Measuring value of Cement | 600kg |
Max.Measuring value ofaggregate | 3000g |
Max.Measuring value of Constellation | 250kg |
Max.Measuring value of admixture | 40kg |
delivery value of screw conveyer | 35t/h |
Capacity of filler bin | 100t |
total power | 100KW |
weight | 40000KG |
Concrete mixing plant HZS50 configuration
item | Commodity name | description | quatity | note |
01 | Mixing console | JS1000 | 1 | Js1000 dual-axial mixing; Double main reducer, dual cylinder discharging. |
02 | Batching plant | PLD1600A | 1 | Pld1600III electronic batching plant ;discharging with pneumatic; |
03 | Feedng system of aggregate | JS1000 | 1 | Feeding syetem with Climb bucket;high efficient;easy to overhauling |
04 | Measuringsystem of powder | HZS50 | 1 | Measuringsystem with electronic balance;Pneumatic butterfly discharging; The central control |
05 | Measuring system of water | HZS50 | 1 | Measuring system with electronic balance; The central control |
