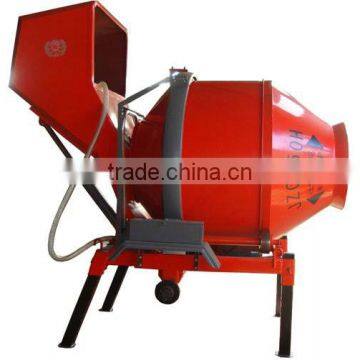

Hydraumaticconcrete mixer (S)
- 150 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Tiema | Model Number | JZY350 | |
| Motor Power | 5.5KW | Mixing Power | 5.5KW | |
| Charging Capacity | 560L | Reclaiming capacity | 350L | |
| Speed of Mixing Drum | 14r/min | Water Supply Mode | water pump | |
| Discharge Way | manual operation | Outline Dimension | 3400*2140*2400 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Gravity type& bipyramid,Mobile concrete mixers.
Reversing the material
Mixing plastic and low fluid concretes
The hydraulic concrete mixer is designed according to the disadvantage of most quick-wear parts and great labour intensity in feeding system for JZC drum mixer.
The principle of feeding system is main electrical motor driving the gear pump .To controlled the hydraulic ram by hand-operated direction valve.
There is feeding stable, simple to use & less maintenance cost.
Hydraulic mixer is the ideal substitute produces for general JZC mixer.
I.Usage &feature
This series of products belongs to gravity type& bipyramid, mobile concrete mixers. They reverse the material and can mix plastic and low fluid concretes. They are suitable in general construction sites, path bridge buildings, middle and small scale concretes component factories
The production efficiency is high, the mixing quality is good. The structure is reasonable ,high automaticity, They are also easy to be moved & operated.
II,technical parameters
Items | unit | parameters | |
Charging capacity | L | 560 | |
Discharging capacity | L | 350 | |
Productivity | M3/h | 12-14 | |
Revolving speed of mixing drum | r/min | 14 | |
Time of hopper lifting | S | 8 | |
Max.drag speed | Km/h | 20 | |
Height of discharging | mm | 1250 | |
Outline dimension | mm | 3400*2140*2400 | |
Total weight | kg | 1700 | |
Mixing motor | model |
| Y132S-4 |
power | kw | 5.5 | |
rotate speed | r/min | 1440 | |
Water pump motor | model |
| 40DWB08-12A |
power | kw | 0.55 | |
rotate speed | r/min | 2900 | |
Hydraulic ram |
| L530-80/50 | |
Gear oil pump |
| CBN-E316 | |
Hand operated direction valve |
| ZL15.0 | |
---------------------------------------------------------------------------------------------
