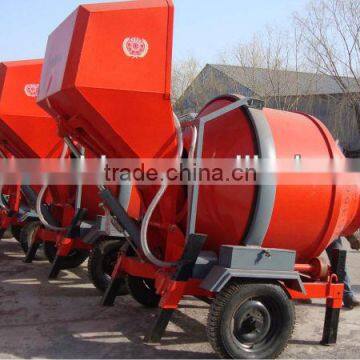

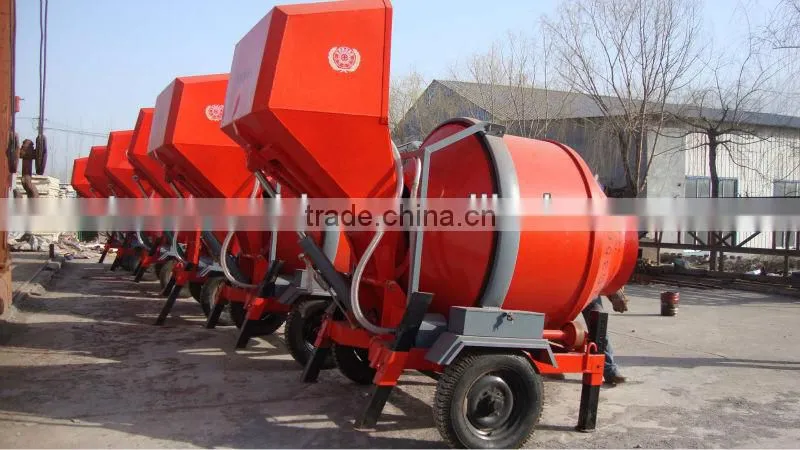

JSD Hydraulic mixer

Specifications

Gravity type& bipyramid,
Mobile concrete mixers.
Reversing the material
Mixing plastic and low fluid concretes



The hydraulic concrete mixer is designed according to the disadvantage of most quick-wear parts and great labour intensity in feeding system for JZC drum mixer.

The principle of feeding system is main electrical motor driving the gear pump .To controlled the hydraulic ram by hand-operated direction valve.

There is feeding stable, simple to use & less maintenance cost.

Hydraulic mixer is the ideal substitute produces for general JZC mixer.

I.Usage &feature

This series of products belongs to gravity type& bipyramid, mobile concrete mixers. They reverse the material and can mix plastic and low fluid concretes. They are suitable in general construction sites, path bridge buildings, middle and small scale concretes component factories

The production efficiency is high, the mixing quality is good. The structure is reasonable ,high automaticity, They are also easy to be moved & operated.

II,technical parameters

Items		unit	parameters
Charging capacity		L	560
Discharging capacity		L	350
Productivity		M3/h	12-14
Revolving speed of mixing drum		r/min	14
Time of hopper lifting		S	8
Max.drag speed		Km/h	20
Height of discharging		mm	1250
Outline dimension		mm	3400*2140*2400
Total weight		kg	1700
Mixing motor	model		Y132S-4
	power	kw	5.5
	rotate speed	r/min	1440
Water pump motor	model		40DWB08-12A
	power	kw	0.55
	rotate speed	r/min	2900
Hydraulic ram			L530-80/50
Gear oil pump			CBN-E316
Hand operated direction valve			ZL15.0









---------------------------------------------------------------------------------------------
