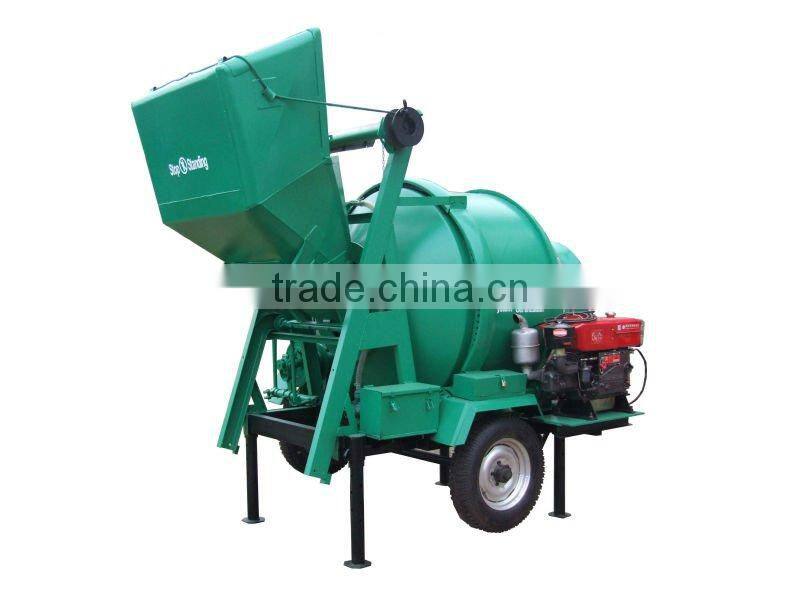

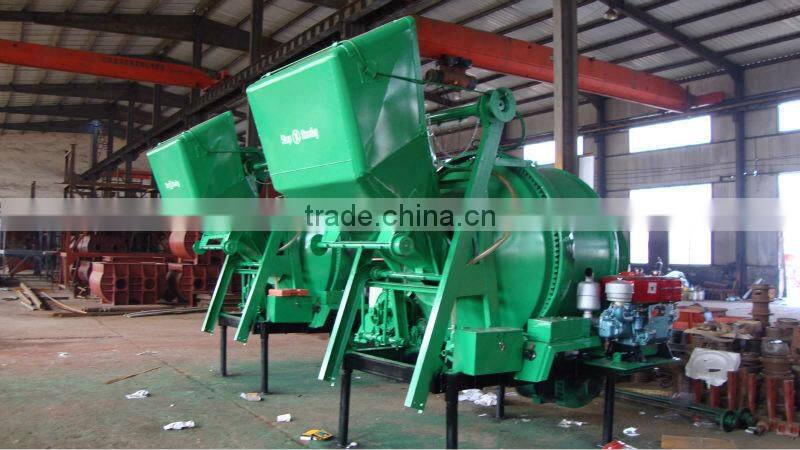

Help CenterDIESEL CONCRETE MIXER
Related Products
Specifications
Diesel engine, 350LApply to the remote areas and the wild which have no electric power supply.
This machine is aimed at a remote area construction with no electric power , unable to realize mechanization specially designed, it is basis with a set of diesel generating system in the principle of existing JZC350 mixer, the diesel engine provides power for the machines to ensure mixer work. Because this power generation system of output for 15KW .During the guarantee mixer normal work at the same time, It still can provide part of the electric power used to drive foreign other small devices, such as the vibrating. For work and lighting using.
In addition ,the machine can need not generating device, direct access to external power using in more exotic matching power supplying, , accomplish the wood electricity amphibious.
Using and features :
the machine is used for mixing plasticity and illiquid concrete, every time can stir 0.35 m3 concrete (refers to the volume of real after pounding), productivity is 12 ~ 14m3 / h, applicable to small and medium-sized construction engineering, roads, Bridges, water conservancy project and concrete enterprise.
Technical data:
Technical data |
JZC350concrete mixer with diesel engine |
|
Performance |
Discharging capacity L |
350 |
Charging capacity L |
560 |
|
Productivity m3/h |
10-14 |
|
|
Speed of the mixing Drum r/min |
14 |
|
Max.aggregate size. mm |
60-80 |
|
Mixing motor kw |
5.5 |
|
Water-pump motor kw |
0.55 |
|
Diesel engine |
Nominal power kw |
14.7 |
Nominal speed r/min |
2200 |
|
Max.chug speed km/h |
20 |
|
tyre |
6.50-16 |
|
Total weight Kg |
1970 |
|
Outline(l*w*h)mm |
2810*2140*3070 |
|
