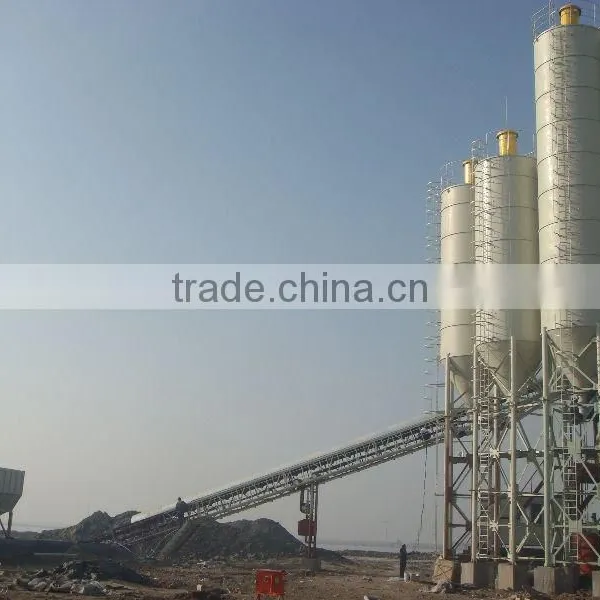

Hzs35 Batching Plant

Name: Hzs35 Batching Plant
Brand: Tiema
SKU: 141887080
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Tiema

Model Number:

Hls35

Shandong Tiema Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Tiema

Model Number Hls35

Specifications

1Be made up of mixing system, batching system, electric control system, storage silo, powder convery
2 ISO9001,CE
3Market US



MAX.PRODUCTIVITY	35M³/H
SPECIFICATION	1. centralized control 2. discharging height :3.8m
mixing console	JS750
Brand name	Tiema
Place of origin	China
Measuring Precision of the water(%)	±2
Measuring Precision of cement(%)	±1
Measuring Precision of admixture(%)	±2
the precision of aggregat(%)	±2
Max.Measuring value of Cement	400kg
Max.Measuring value ofaggregate	2000g
Max.Measuring value of Constellation	200kg
Max.Measuring value of admixture	40kg


total power	70KW

Concrete mixing plant HZS35 configuration

item	Commodity name		description	quatity	note
01	Mixing console		JS750	1	Js750 dual-axial mixing; Discharge form :pneumatic
02	Batching plant		PLD1600A	1	Pld1200III electronic batching plant ;discharging with pneumatic; automatic Batching of Aggregate
03	Feeding system of aggregate			1	Feeding syetem with Climb bucket;high efficient;easy to overhauling
04	Measuring system of power			1	Measuringsystem with electronic balance;Pneumatic butterfly discharging; The central control
05	Measuring system of water			1	Measuring system with electronic balance; The central control
06	filler bin	SYN50T		2	With Silo material level instrument, warehouse top precipitator, unloading valve disc, current mouth, blowing arch breaker
07	screw conveyer	LSY219-7.5M		1	Connect with , universial feeding hole
08	Contral room			1	Accroding to user’s requiry.
09	Pneumatic system			1	With 0.8m³air compressor

					;
