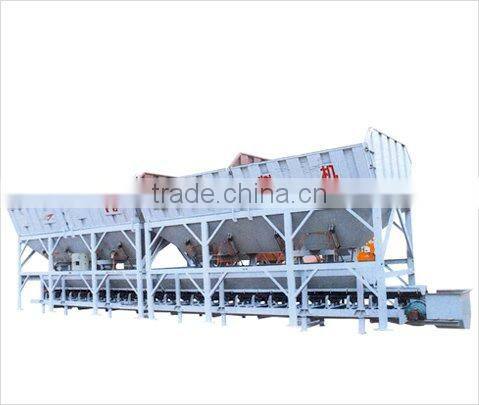

Help CenterPLD2400Q Concrete Batching Plant (S)
Related Products
Specifications
1.discharging form: Pneumatic power2.No.of Weighing aggregate:2/3/4
Concrete batching machines series PL are a kind of aggregate automatic dispensing equipments supporting the use of concrete mixers.
Concrete batching machines series PL are a kind of aggregate automatic dispensing equipments supporting the use of concrete mixers. They can complete the batching process with aggregates like sands and stones etc. according to the users concrete ratio. This series of products can be used with concrete mixers series JS or concrete mixing console to make simple or standard concrete mixing plants. They are ideal devices producing high-quality concrete for every kind of industrial or civil, large and medium-sized construction projects or precast plants.
This series of products can be used with concrete mixers series JS or concrete mixing console to make simple or standard concrete mixing plants. They are ideal devices producing high-quality concrete for every kind of industrial or civil, large and medium-sized construction projects or precast plants.
COMMODITY NAME |
concrete batching plant |
MODEL |
PLD2400Q |
SPECIFICATION |
1.discharging form: manual operation/ air operated 2.No.of Weighing aggregate:2/3/4 |
BRAND NAME |
Tiema |
PLACE OF ORIGIN |
China |
|
weighing bucker nominal capacity |
2.4m³ |
storage hopper |
4*12m³ |
the precision of the system batching |
±2% |
Charging height |
2734mm |
MAX.PRODUCTIVITY |
120m³/H |
the measurement method |
E-Metrics |
total power |
11KW |
OUTLINE DIMENSION |
10040*3318*3820(mm) |
WEIGHT |
8500KG |
————————————————————————————————————————————————
