2015 new design PVC thread 3pc ball valve
| 1.Product Name: | 2015 new design PVC thread compact ball valve |
| 2.Raw Material: | PVC |
| 3.Color: | white,gray,beige |
| 4.Size | 1/2'' - 4''; 20mm - 110mm ; DN15 - DN100 |
| 5. Connector: | Socket, Female, Male |
| 6. Standard: | ANSI, DIN, JIS, CNS |
| 7. Packing: | each in a poly bag, then in a mater carton |
Product Features:
1) Anti-UV
2) 100% pressure testing before delivery
3) seperated stem and ball instead of stem ball one-piece
4) Spiral welded joints,the sealing is better

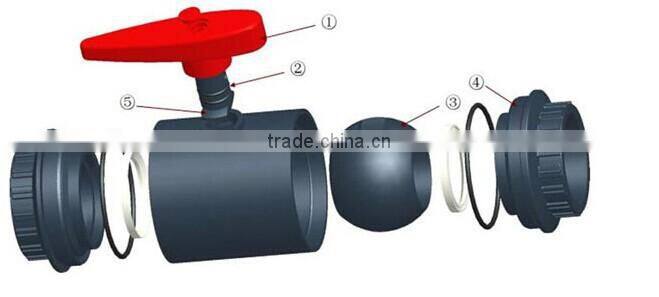

Structure Chart and Technical Specification:
| Unit: MM | |||||||||||||||
| SIZE | d | d1 | d2 | D | L | L1 | H | W | operating torque | ||||||
| ANSI | DIN | JIS | CNS | ANSI | DIN | JIS | CNS | (N-M) | |||||||
| 1/2"(15) | 15 | 21.54 | 20.3 | 22.3 | 22.4 | 21.23 | 20.1 | 21.78 | 21.9 | 41 | 79 | 22 | 63 | 70 | 2 |
| 3/4"(20) | 20 | 26.87 | 25.3 | 26.3 | 26.4 | 26.57 | 25.1 | 25.7 | 25.9 | 49.2 | 106.4 | 31.5 | 75 | 80 | 2.5 |
| 1"(25) | 25 | 33.65 | 32.3 | 32.33 | 34.5 | 33.27 | 32.1 | 31.67 | 33.9 | 56 | 116 | 35 | 85 | 90 | 4 |
| 1 1/4"(32) | 32 | 42.42 | 40.3 | 38.43 | 42.5 | 42.04 | 40.1 | 37.57 | 41.9 | 65.5 | 125.7 | 35 | 100.5 | 100 | 4.5 |
| 1 1/2"(40) | 40 | 48.56 | 50.3 | 48.46 | 48.6 | 48.11 | 50.1 | 47.54 | 47.9 | 78 | 136.5 | 37 | 120 | 130 | 6 |
| 2"(50) | 50 | 60.63 | 63.3 | 60.56 | 60.6 | 60.17 | 60.1 | 59.44 | 59.9 | 95 | 149.3 | 38 | 135.5 | 130 | 6.5 |
| 2 1/2"(65) | 65 | 73.38 | 75.3 | 76.6 | 76.7 | 72.85 | 75.1 | 75.87 | 75.9 | 119 | 197.5 | 53 | 158.8 | 150 | 8 |
| 3"(80) | 75 | 89.31 | 90.3 | 89.6 | 89.7 | 88.7 | 90.1 | 88.83 | 88.9 | 135 | 207.6 | 51 | 191 | 200 | 12 |
| 4"(100) | 97 | 114.76 | 110.4 | 114.7 | 115 | 114.1 | 110.1 | 114 | 113.8 | 174 | 254 | 60 | 237 | 260 | 16 |

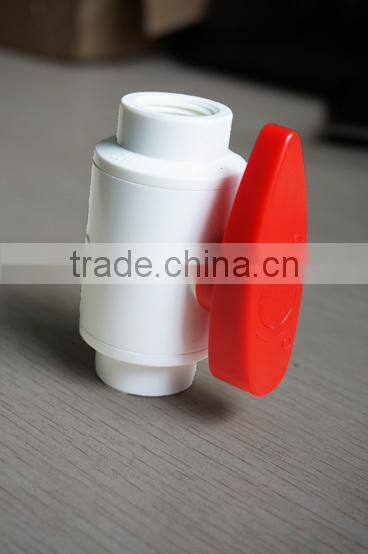

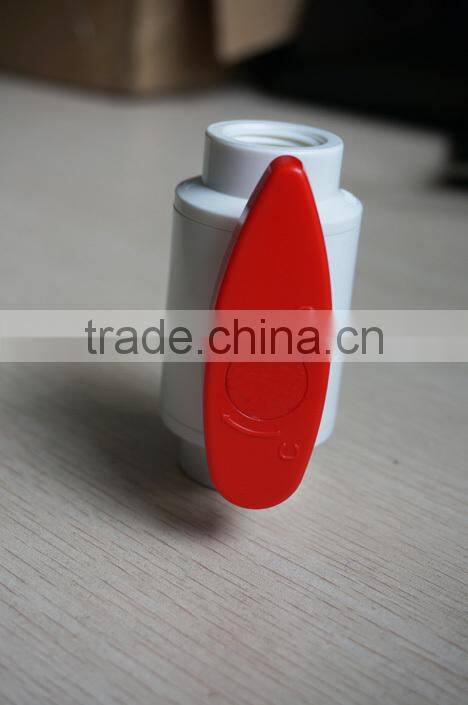

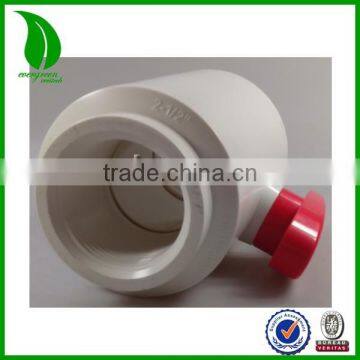

Real Products Picture:
Similar PVC Ball Valve for your Choice:
Packaging:
1. Normal packing
2. As per customer's request
Shipping:
Sea shipment
Air shipment
Courier shipment
Service Advantage:
1. 10 years manufacturing and exporting experience in agriculture field.
2. Professional technical support and solution by Chief Engineer.
3. Strict quality control system & team, high reputation in the market.
4. Quick, efficient and professional response within 24 hours, 14 hours online services.
5. Multilingual communication services (English, Spanish, French, Portuguese, Japanese etc.)
6. Full range of irrigation products for choice.
7. Accept sample order before Mass Order.
8. OEM/ODM services.
