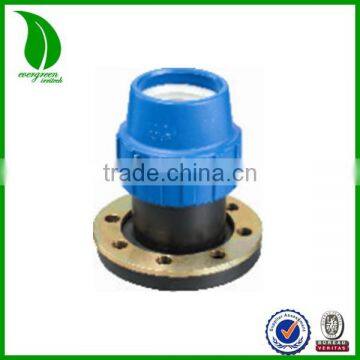

Product Name: Compression Flange Adaptor
Products specification:
Main Material |
PP |
Product Color |
Gray, Blue, black or customized |
Product Size |
16,20,25,32,40,50,63,75,90,110 1/2”,3/4”,1”,1-1/4”,1-1/2”,2”,3”,4” |
Working Pressure |
PN16-10 |
Connection |
Flang and socket |
Standard |
DIN,JIS,ANSI,BS |
Material List:
Part |
Material |
Color |
Body |
Polypropylene block copolymer(PP-B) of exceptional mechanical properties even at high temperature. |
black |
Nut |
Polyprolene with dye master of high stability to UV rays and solidity to heat(8 grade according to standard DIN 54004) |
blue |
Clinching ring |
Polyacetal resin(POM)with high mechanical resistance white and hardness |
white |
Blocking bush |
Polypropylene |
black |
O Ring gasket |
Special elastomeric acrylonitrile rubber(NBR) for alimentary use |
black |
Reinforcing ring |
AISI 430(UNI X8Cr17,W.nr 14828)Stainless steel for female threads for 1/2”to 4” |
silver |
Product Feature:
1) light weight, convenient handling and corrosion-resistant
2) chemical stability , fluid resistance
3) anti-aging, long life, non-toxic
4) Smooth inner wall ,reducing pressure loss and increasing flow speed
5) Low noise ,reduced by 40% compared to galvanized steel pipes
6) Easy and fast installation, making cost minimized
7) Apply to construction, electrical conduit, agricultural irrigation, industrial sewage.
Exploded View:
Working Picture:
More Popular Series for Choice:
Packaging:
1. Normal packing
2. As per customer's request
Shipping:
Sea shipment
Air shipment
Courier shipment
Service Advantage:
1. 10 years manufacturing and exporting experience in agriculture field.
2. Professional technical support and solution by Chief Engineer.
3. Strict quality control system & team, high reputation in the market.
4. Quick, efficient and professional response within 24 hours, 14 hours online services.
5. Multilingual communication services (English, Spanish, French, Portuguese, Japanese etc.)
6. Full range of irrigation products for choice.
7. Accept sample order before Mass Order.
8. OEM/ODM services.
