9501 6 Inch Butterfly Safety Valve for Sea Water Control
- China port
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Butterfly | |
| Pressure | Medium Pressure | Power | Hydraulic | |
| Material | Casting | Temperature of Media | Medium Temperature | |
| Media | Water | Port Size | 2"-24" | |
| Place of Origin | Zhejiang, China | Model Number | 9501 | |
| Brand Name | EVERGREEN | Application | General |
Product Description
9501 6 inch butterfly safety valve for sea water control
Parameter:
Material | Iron |
Color | Gray,Blue or customized |
thickness | 1.2mm-2.5mm |
Specifications | DN100-DN250 |
Working temperature | for cold water ≤ 60 °C during transfer |
Working Pressure | From diameter 16mm to 63mm, PN16; above 63mm, PN10 |
Conventional pressure | 0.1Mpa-2.5Mpa Note: You can also according to customer requirements for pipe material, thickness, size and pressure in areas such as customized |
Connection | flanged |
Size: | 4-24" |
Standard:
Design standard: GB/T12238-2008, ISO 10631-1994 OR BS EN593-1998, BS 5155, MSS SP-67
FLANGE CONNECTION: GB/T17241.6-208, JIS B2212-B2214-1999, JIS B2220-2004, JIS B2210-1984, ANSI B16.5-2009, ANSI B16.47-2006, ISO 7005-2 OR BS EN1092-2002(PN6, PN10, PN16, Class150, 5K, 10K, 16K)
Face-to-face dimension: GB/T12221-2005, ISO 5752-1988 OR BS EN558-1
WORKING PRESSURE: GB/T13927-2008, JB/T9092-1999, ISO 5028-1993 OR BS 5755-1-1986
Top flange: ISO5211 standard
Features & Application:
Adavantages
1) light weight, convenient handling and corrosion-resistant
2) chemical stability , fluid resistance
3) anti-aging, long life, healthy and non-toxic
4) Smooth inner wall ,reducing pressure loss and increasing flow speed
5) Low noise ,reduced by 40% compared to galvanized steel pipes
6) Soft colors and excellent design, suitable for installation either exposed or hidden
7) Easy and fast installation, making cost minimized
Application
Pipe fittings are applied to construction, electrical conduit, agricultural irrigation, industrial sewage and other projects using .
1) Cold and hot water supply systems for civil and industrial constructions, e.g.in residential buildings, hospitals, hotels, school and office buildings, shipbuilding
2) Drinking water systems and food industry pipe works
3) Central air conditioning system
4) Irrigating system for gardens and green houses
5) Public and sport facilities such as swimming pools and stadiums
6) For rainwater utilization systems

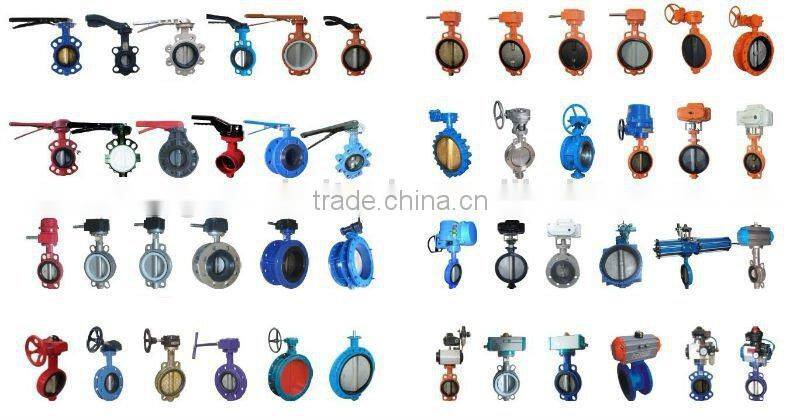

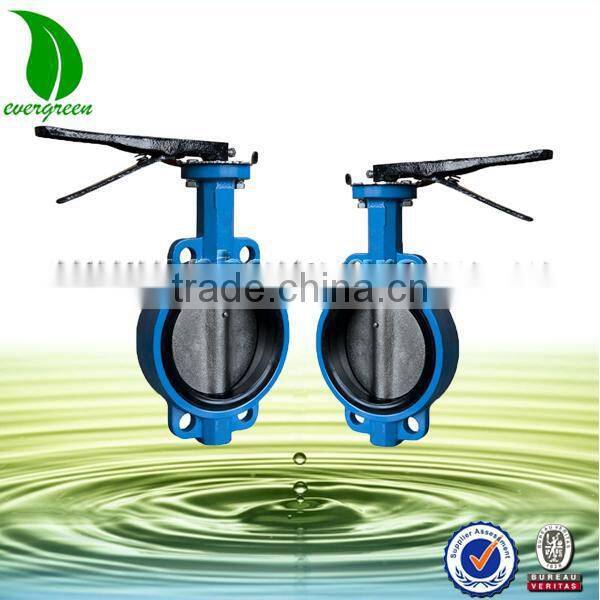

Product picture:
Packaging:
1.Normal Packing
2.As per customers'request
Shipping:
Sea shipment
Air shipment
Courier shipment
Quick Response:
Attn: Grace
Tel and whatsapp: +86-180 0665 5726
TradeManager: CN200845070
Skype: nbevergreen05
Evergreen is a professional supplier in field of irrigation
Services advantage:
1. Quick, efficient and professional response within 24 hours, 14 hours online services
2. 10 years manufacturing and exporting experience in agriculture field.
3. Technical support and solution by chief engineer.
4. Strict quality control system & team, high reputation in the market.
5. Full range of irrigation products for choice
6. OEM/ODM services
7. Accept sample order before Mass Order
8. Multilingual communication services (English, Spanish, French, Portuguese, Japanese.etc.)
