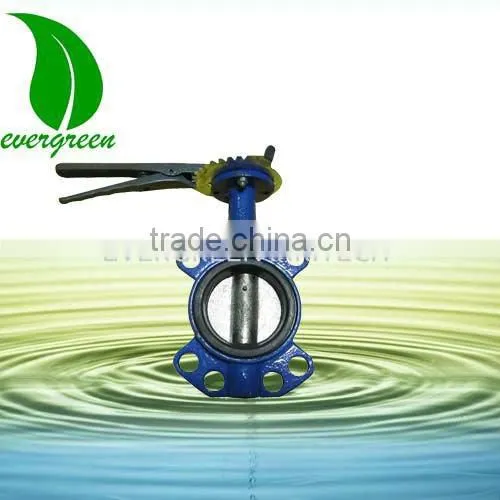

Iron butterfly valve with handle lever type
Standard:
Design standard:GB/T12238-2008, ISO 10631-1994 OR BS EN593-1998, BS 5155, MSS SP-67
FLANGE CONNECTION:GB/T17241.6-208, JIS B2212-B2214-1999, JIS B2220-2004, JIS B2210-1984, ANSI B16.5-2009, ANSI B16.47-2006, ISO 7005-2 OR BS EN1092-2002(PN6, PN10, PN16, Class150, 5K, 10K, 16K)
Face-to-face dimension: GB/T12221-2005, ISO 5752-1988 OR BS EN558-1
WORKING PRESSURE:GB/T13927-2008, JB/T9092-1999, ISO 5028-1993 OR BS 5755-1-1986
Top flange: ISO5211 standard

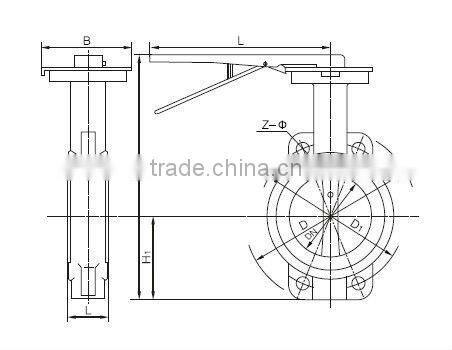

| DN(mm) | D | D1 | Z-O | L | H | H1 | A | B |
| 40 | 150 | 110 | 4-19 | 43 | 220 | 68 | 240 | 98 |
| 50 | 165 | 125 | 4-19 | 43 | 235 | 68 | 240 | 98 |
| 65 | 185 | 145 | 4-19 | 46 | 250 | 75 | 240 | 98 |
| 80 | 200 | 160 | 8-19 | 46 | 275 | 85 | 240 | 98 |
| 100 | 220 | 180 | 8-19 | 52 | 315 | 105 | 270 | 108 |
| 125 | 250 | 210 | 8-19 | 56 | 340 | 120 | 320 | 108 |
| 150 | 285 | 240 | 8-23 | 56 | 375 | 135 | 320 | 108 |
| 200 | 340 | 295 | 8-23 | 60 | 470 | 165 | 365 | 155 |
Packaging:
1. Normal packing
2. As per customer's request
Shipping:
Sea shipment
Air shipment
Courier shipment
Quick Response:
NINGBO EVERGREEN IRRITECH CO., LTD.
Attn: Grace
Tel and whatsapp: +86-180 0665 5726
TradeManager: CN200845070
Skype: nbevergreen05
Services advantage:
1. Quick, efficient and professional response within 24 hours, 14 hours online services.
2. 10 years manufacturing experience in agriculture field.
3. Technical support and solution by chief engineer.
4. Strict quality control system & team, high reputation in the market.
5. Full range of irrigation products for choice.
6. OEM/ODM services.
7. Accept sample order before Mass Order.
8. Multilingual communication services (English, Spanish, French, Portuguese, Japanese. etc.)
