Specifications
Plastic Sheet (Polycarbonate Pearly GREEN Solid Flat)100% Virgin Mitsubishi resin
Thickness 1.7mm~15mm
For Greenhouses
VULCAN PLASTICS

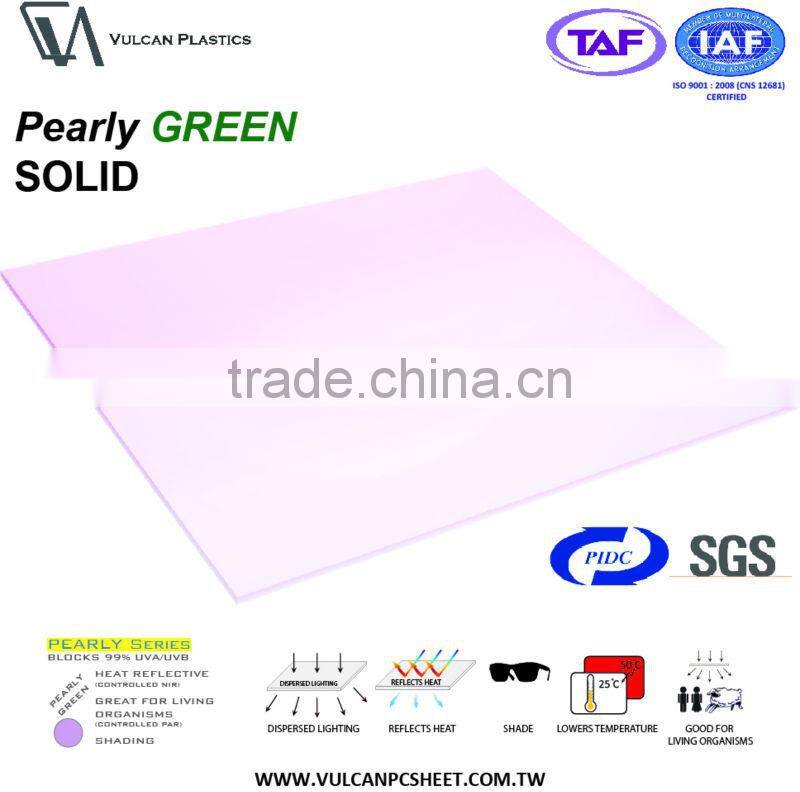

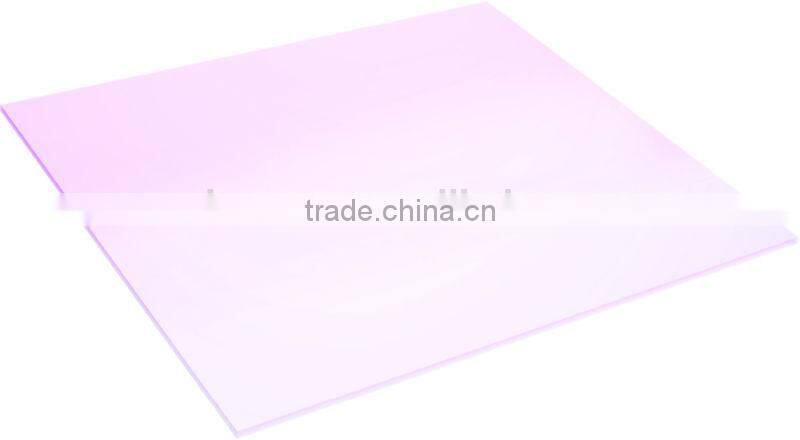

Polycarbonate PEARLY GREEN SOLID FLAT sheets
Good to be GREEN
PEARLY GREEN Technology: Good to be GREEN
GREEN is beneficial to living organisms.
VULCAN Polycarbonate Solid Flat PEARLY GREEN sheet was developed specially for living organisms and general purposes.
PEARLY GREEN pigment reflects rather than absorbs heat producing far-red solar radiation without affecting the transmittance of the GREEN spectrum, and retains health benefiting GREEN light. This makes it easier to control the climate, particularly in the summer, and maintain optimum room temperature.*
*A large proportion of the heat increasing far-red light is reflected.
VULCAN Polycarbonate Solid Flat Pearly Green sheets have a Lilac / Greenish Hue and suitable for use in archetecture. The maximum transmission of the passing light is in the green area of the visible light - exactly where the human eye is most light sensitive.
Pearly Green compared with sheets using different coating methods.
VULCAN Polycarbonate Solid Flat Pearly GREEN sheet has a Lilac/Greenish Hue, and creates a significant drop in temperature (Depending on the individual application conditions, rooms are up to 15°c cooler compared to non-pigmented systems), owing to its ability to block harmful UV and IR rays. Since Pearly GREEN was specially designed for humans and living organisms, and focuses more on it's cooling abilities.
The Transmission Spectrum chart of VULCAN Polycarbonate Pearly RED and Pearly GREEN.
Solid Flat Sheet Properties
VULCAN Polycarbonate SOLID FLAT sheets are designed specifically for buildings and construction. Sheets above 6mm are capable of stopping bullets and are most often used for security purposes. It’s high impact strength and lightweight compared to glass, ease of installation, fireproof and weather resistant properties make VULCAN Solid Flat sheets the perfect choice over glass, FRP and Acrylic*. VULCAN Plastics currently have two machines dedicated to Solid Flat sheets production.
*Polycarbonate impact strength: 250 times over glass, 10 times over FRP and Acrylic.
Machinary | Width | Wave Span | Wave Height | Thickness | Production Length | |||
Min. | Max. | Min. | Max. | 20' | 40' | |||
Toshiba - Hitachi | 1212mm | 2100mm | - | - | 2.0mm | 15mm | Max. | Max. |
5800mm | 11600mm | |||||||
Breyer | 1212mm | 2100mm | - | - | 1.7mm | 12mm | Max. | Max. |
5800mm | 11600mm | |||||||
Specifications – Toshiba Hitachi Co-Extrusion Machine
- Profile: Polycarbonate Solid Flat
- Raw Material: 100% Virgin Resin from Mitsubishi Japan, Bayer Germany, Sabic (GE).
- UV Coating: Optical Grade SD Polyca UV400 Coating (Sumitomo Dow Chemicals Japan)
- Additional Proprietary Coating: LiteGuide, Ti-Lite, Pearly RED, Pearly GREEN
- Standard Material/Colors: Clear, Bronze, Blue, Green, Opal.
- Thickness: 2.0mm~15mm
- Width: 1212mm~2100mm
- Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request)
Specifications – Breyer Machine
- Profile: Polycarbonate Solid Flat
- Raw Material: 100% Virgin Resin from Mitsubishi Japan, Bayer Germany, Sabic (GE).
- UV Coating: DOUBLE SIDED Optical Grade SD Polyca UV400 Coating (Sumitomo Dow Chemicals Japan)
- Standard Material/Colors: Clear, Bronze, Blue, Green, Opal
- Propriety Material: LiteGuide, Ti-Lite, Pearly RED, Pearly GREEN
- Thickness: 1.7mm~12mm
- Width: 1212mm~2100mm
- Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request)
Product Strengths
Base Material
- 100% Virgin UV included raw material ensures that your sheets can withstand harmful UV rays for at least one year.
UV400 Coating
- Optical Grade SD Polyca UV400 coating as used on lenses, glasses, and sunglasses. 99.5% of harmful UV wavelengths between 290nm~400nm are blocked.
PEARLY GREEN Coating
- With particle sizes ranging from 10~60μm, PEARLY GREEN is suitable for general-purpose infrared blocking applications.
Production Method
- Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)
High impact resistance
- 250 times the impact strength over glass and 10 times over FRP and Acrylic.
Fire Retardant
- Polycarbonate sheets produced with 100% Virgin material have a melting point of at least 190 degrees Celsius and produce only odorless smoke when burned.
Design Flexibility
- VULCAN Polycarbonate sheets can be tailored with different coatings to provide different light transmission rates and properties. Customers can choose between LiteGuide, Pearly RED, Pearly GREEN, Ti-Lite, and Valuview.
Quality Standards
VULCAN Polycarbonate sheets are produced with the highest of standards available in the industry. We are the first Polycarbonate manufacture in Asia to incorporate clean rooms for all of our extrusion lines. Our latest Breyer Solid Flat sheet machine is installed in a Class 5000 clean room (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).
Machinery
We have a total of 5 co-extrusion lines, 2 for corrugated sheets and 3 for solid sheets. Our machines are imported from Toshiba-Hitachi Japan, Omipa Italy and Breyer Germany. Our co-extrusion machine uses feedblocks from the industry leading EDI (Extrusion Dies Industries) company and controlled by the also industry leading Dynisco company computers.
Applicable Areas
Agricultural Greenhouse
Garden Greenhouse
Flower Greenhouse
Multi-span Greenhouse
Singe-span Greenhouse
Greenhouse roofing
Greenhouse Walls
Aquaculture Greenhouse
Polycarbonate Roofing
Raw Material and Machinery
VULCAN Polycarbonate SOLID FLAT sheets are double sided, UV400 co-extruded with Extrusion Dies Industries (EDI) feedblocks, using SD Polyca Optical Grade UV400 material from Sumitomo Dow Chemicals Japan, thus providing maximum protection against harmful UV rays, both inside and out.
VULCAN Polycarbonate SOLID FLAT sheets are produced from Asia's larget polycarbonate extrusion machine.
Toshiba - Hitachi
Breyer
VULCAN Polycarbonate SOLID FLAT sheets can reach a thickness of 15mm.
Impurity leads to less quality, which is why VULCAN Polycarbonate SOLID FLAT sheets are produced in Class 5000 clean rooms; the cleaner the environment, the cleaner the sheets, and hence a longer lifespan.
Other proprietary material from VULCAN Plastics
