Plastic Polycarbonate Corrugated Sheet for Greenhouse Roof (Pearly RED TRIMDEK)
- Kaohsiung
- T/T
You May Like
-
UV Resistant Transparent Solid Corrugated Polycarbonate Sheets (Valuview Clear Series)
-
Plastic Polycarbonate Solid / Corrugated Sheets (Valuview Bronze Series)
-
Plastic Polycarbonate Silver Laminated Sheet (Ti-Lite Metallic Blue Series)
-
Plastic Polycarbonate Silver Laminated Sheet (Ti-Lite Metallic Green Series)
-
Sun Shading Solid Corrugated Polycarbonate Sheet (Ti-Lite Metallic Silver)
-
Colored Polycarbonate Sheets in Profiles (Valuview Opal Series)
Product Details
| Place of Origin | Taiwan, China | Brand Name | VULCAN Plastics Polycarbonate Sheet | |
| Model Number | Polycarbonate Pearly RED TRIMDEK |
Product Description
VULCAN PLASTICS
Polycarbonate PEARLY RED TRIMDEK Sheet
Controlled Photosynthetically Active Radiation to stimulate Plant Growth
PEARLY RED Technology: Controlled Photosynthetically Active Radiation to stimulate Plant Growth
Near RED light make plants grow.
VULCAN PEARLY RED filters out Far Red Light* (735nm) which hinders plant growth and keeps Phytochromes activating near red light (665nm), Plants grow when the phytochromes are exposed to near red light, whereas exposure to far-red light halts the growth process.
* Far red light is at the far end of the visible spectrum, close to the infrared region.
VULCAN Polycarbonate Corrugated Pearly RED sheet has an eye catching Reddish / Greenish Hue, and is specially designed for plants and vegetation. The special Pearly RED pigment filters out unwanted far Infrared and keeps the near red light which plants need for better growth. Additional weather Resistant properties ensure a longer lifespan.
The Transmission Spectrum chart of VULCAN Polycarbonate Pearly RED and Pearly GREEN
Pearly RED Coating
- With particle sizes ranging from 5nm~25nm, the Pearly RED pigment is tailored to have a transmission spectrum that matches photosynthesis requirements of vegetation quite closely. The result is cool greenhouses and other enclosed ambients.
Heat Reflective Properties:
- Controlled NIR (700~2500nm): Temperature drop of 7°c depending on the relative temperature and humidity.
Light Transmission Rate:
- Controlled PAR (400~700nm): Excellent shading Properties - 56% light transmission rate.
Production Method
- Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)

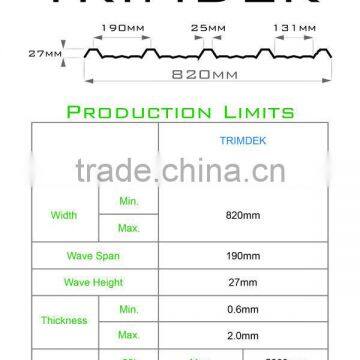

TRIMDEK (190/27)
Apart from using the best raw materials, VULCAN Polycarbonate TRIMDEKprofile sheet differs from other brand products by having added grooves at the 131mm area to allow faster drainage. VULCAN TRIMDEK profile sheets have a long lifespan and is extensively tried and true in the Americas; choose between five different material grades to suit your needs.
Width | Wave Span | Wave Height | Thickness | Production Length | |||
Min. | Max. | Min. | Max. | 20' | 40' | ||
5 Corrugations | 190mm | 27mm | 0.6mm | 2.0mm | Max. | Max. | |
820mm | 5800mm | 11600mm | |||||
Specifications
- Profile: Polycarbonate TRIMDEK (190/27) 5 Corrugations
- Raw Material: 100% Virgin Optical Grade resin from Bayer Germany.
- UV Coating: Optical Grade SD Polyca UV400 Coating (Sumitomo Dow Chemicals Japan)
- PEARLY RED Coating: Weather resistant grade material developed with a renown pigment manufacturer in Germany.
- Color: Reddish / Greenish hue.
- Thickness: 0.6mm~2.0mm
- Width: 670mm~1060mm
- Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request)
- Warranty: 10 years. (5 for yellowing, 10 for usage)
Product Strengths
Base Material
- 100% Virgin UV included raw material ensures that your sheets can withstand harmful UV rays for at least one year.
UV400 Coating
- Optical Grade SD Polyca UV400 coating as used on lenses, glasses, and sunglasses. 99.5% of harmful UV wavelengths between 290nm~400nm are blocked.
High impact resistance
- 250 times the impact strength over glass and 10 times over FRP and Acrylic.
Fire Retardant
- Polycarbonate sheets produced with 100% Virgin material have a melting point of at least 190 degrees Celsius and produce only odorless smoke when burned.
Quality Standards
VULCAN Polycarbonate sheets are produced with the highest of standards available in the industry. We are the first Polycarbonate manufacture in Asia to incorporate clean rooms for all of our extrusion lines. Our latest Breyer Solid Flat sheet machine is installed in a Class 5000 clean room (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).
Machinery
We have a total of 5 co-extrusion lines, 2 for corrugated sheets and 3 for solid sheets. Our machines are imported from Toshiba-Hitachi Japan, Omipa Italy and Breyer Germany. Our co-extrusion machine uses feedblocks from the industry leading EDI (Extrusion Dies Industries) company and controlled by the also industry leading Dynisco company computers.
Log onto our Youtube Channel: /user/VULCANPLASTICSTW for a brief tour of our factory.
Applicable Areas
Signs and Billboards
Agricultural Greenhouse
Garden Greenhouse
Flower Greenhouse
Multi-span Greenhouse
Singe-span Greenhouse
Greenhouse roofing
Greenhouse Walls
Aquaculture Greenhouse
Polycarbonate sound barriers
Polycarbonate Highway barriers
Polycarbonate Skylight
Polycarbonate Warehouse
Polycarbonate Roofing
Warehouse Roofing
Warehouse Skylight
Industrial Skylight
Interior decoration
Car Park
Glazing
Patios
VULCAN Polycarbonate Sheets can be made to order and cut to length as per customer request. Any specification of either profile within their respetive production range on the Profile Table above can be produced.
Minimum Order Quantity is 10 tons per profile.
All sheets are co-extruded with SD Polyca Optical Grade UV400 coating and are warranted for 10yrs under normal circumstances*.
*Warranty details are listed on our online Installation Manual .tw/download/VP%20Corrugated%20Sheet%20Installation%20Instructions.pdf, failure to comply shall void warranty.
VULCAN PLASTICS was established in 2007 with the goal of exporting Polycarbonate Sheets of the highest level. With steady progress, we obtained ISO 9001 Certification in the year 2008.
Starting from 1991, we have established a strong foothold in the Polycarbonate Sheet Manufacturing Industry in Taiwan. Following market trends closely and constantly in pursuit of quality and perfection, we continue to develop high-class, multi-functional Polycarbonate Sheets to satisfy customer expectations.
We are now in pursuit of a higher goal, and aim to expand our sales throughout the globe.
Through extensive testing, we have seen what the sun and excessive heat does to a poor product. Vulcan uses only first class, non-recycled material to ensure the lifespan of all our products, which in turn ensures the longlivity of your merchandise.
We are also the first Polycarbonate manufacturer in Asia to incorporate Class 5000 clean rooms for our extrusion lines. (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).
For More information, visit our
Website: .tw
E-Catalogue: .tw/download/VULCAN%20Polycarbonate%20Sheets%20Catalogue.PDF
Youtube Channel: /user/VULCANPLASTICSTW for a brief tour of our factory.
We will be more than happy to assist you in choosing the right VULCAN Polycarbonate sheet for your application.
