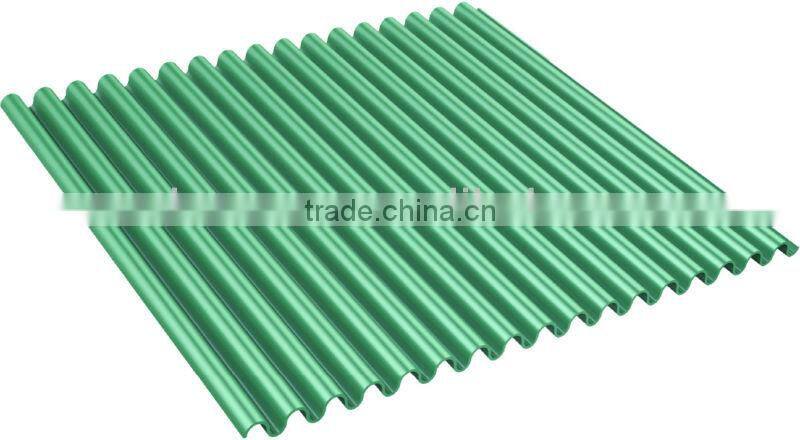

UV Coated Heat Reflective Bayer Polycarbonate Corrugated Sheet (Ti-Lite Metallic Green MINI)

 VULCAN PLASTICS

Polycarbonate Ti-Lite Metallic Green MINI Sheet

Exceptional Shading and without Heat

As we know, polycarbonate is the clearest of all plastic resins.  How do we add shading properties effectively?  Coloring is clearly not the best solution.

At VULCAN Plastics we developed Ti-Lite; integrating TiO2 (Titanium Dioxide) along with other secret ingredients to cope with the blazing sun.

The result is a product with excellent shading properties (46% light transmission rate), and exceptional heat reflective properties (temperature drop of 7°c~15°c depending on the relative temperature and humidity).

Production Method

• Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)

Ti-Lite Technology

• Ti-Lite provides excellent shading properties (Reduced VIS – 380~780nm), and exceptional heat reflective properties (Controlled NIR – 780~2500nm).

Light Transmission Rate:

• Excellent shading Properties – 46% light transmission rate

Heat Reflective Properties:

• Temperature drop of 7°c~15°c depending on the relative temperature and humidity.

MINI (32/9)

VULCAN Polycarbonate Corrugated MINI (32/9) sheet offers unique reflection and refraction properties, which creates a suitible lighting enviroment for greenhouse plants, especially flowers. VULCAN Polycarbonate Corrugated MINI (32/9) sheet is used extensively in countries with advanced agricultural needs, such as Japan.

m

Specifications

• Profile: Polycarbonate MINI (32/9) Miniature Circular Corrugated

• Raw Material: 100% Virgin Resin from Mitsubishi Japan, Bayer Polycarbonate MINI (32/9) Miniature Circular Corrugated Germany, Sabic (GE).
• UV Coating: Optical Grade SD Polyca UV400 Coating (Sumitomo Dow Chemicals Japan)
• Ti-Lite Technology: Added TiO2 and other heat reflective + blocking material.
• Color: Metallic Silver

• Thickness: 0.6mm~2.0mm
• Width: 670mm~1060mm
• Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request)
• Warranty: 10 years. (5 for yellowing, 10 for usage)


Product Strengths

Base Material

• 100% Virgin UV included raw material ensures that your sheets can withstand harmful UV rays for at least one year.



UV400 Coating

• Optical Grade SD Polyca UV400 coating as used on lenses, glasses, and sunglasses. 99.5% of harmful UV wavelengths between 290nm~400nm are blocked.
• With UV400 coating, VULCAN Polycarbonate sheets are able to last 10 years or more.



Ti-Lite Technology

• Ti-Lite provides excellent shading properties (46% light transmission rate), and exceptional heat insulation (temperature drop of 7°c~15°c depending on the relative temperature and humidity).

Production Method

• Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)

High impact resistance

• 250 times the impact strength over glass and 10 times over FRP and Acrylic.

Fire Retardant

• Polycarbonate sheets produced with 100% Virgin material have a melting point of at least 190 degrees Celsius and produce only odorless smoke when burned.

Quality Standards

VULCAN Polycarbonate sheets are produced with the highest of standards available in the industry. We are the first Polycarbonate manufacture in Asia to incorporate clean rooms for all of our extrusion lines. Our latest Breyer Solid Flat sheet machine is installed in a Class 5000 clean room (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).

Machinery

We have a total of 5 co-extrusion lines, 2 for corrugated sheets and 3 for solid sheets. Our machines are imported from Toshiba-Hitachi Japan, Omipa Italy and Breyer Germany. Our co-extrusion machine uses feedblocks from the industry leading EDI (Extrusion Dies Industries) company and controlled by the also industry leading Dynisco company computers.

Applicable Areas

Agricultural Greenhouse

Garden Greenhouse

Flower Greenhouse

Multi-span Greenhouse

Singe-span Greenhouse

Greenhouse roofing

Greenhouse Walls

Aquaculture Greenhouse

Polycarbonate sound barriers

Polycarbonate Highway barriers

Polycarbonate Skylight

Polycarbonate Warehouse

Polycarbonate Roofing

Warehouse Roofing

Warehouse Skylight

Industrial Skylight

Interior decoration

Car Park

Glazing

Patios

Warehouse

VULCAN Polycarbonate Corrugated Ti-Lite sheet used on our own warehouse.

From the outside:

From the inside: Sufficient lighting with no glare

VULCAN Polycarbonate Sheets can be made to order and cut to length as per customer request.  Any specification of either profile within their respetive production range on the Profile Table above can be produced.

Minimum Order Quantity is 10 tons per profile.

All sheets are co-extruded with SD Polyca Optical Grade UV400 coating and are warranted for 10yrs under normal circumstances*.

*Warranty details are listed on our online Installation Manual .tw/download/VP%20Corrugated%20Sheet%20Installation%20Instructions.pdf, failure to comply shall void warranty.

VULCAN PLASTICS was established in 2007 with the goal of exporting Polycarbonate Sheets of the highest level. With steady progress, we obtained ISO 9001 Certification in the year 2008.

Starting from 1991, we have established a strong foothold in the Polycarbonate Sheet Manufacturing Industry in Taiwan. Following market trends closely and constantly in pursuit of quality and perfection, we continue to develop high-class, multi-functional Polycarbonate Sheets to satisfy customer expectations.

We are now in pursuit of a higher goal, and aim to expand our sales throughout the globe.

Through extensive testing, we have seen what the sun and excessive heat does to a poor product. Vulcan uses only first class, non-recycled material to ensure the lifespan of all our products, which in turn ensures the longlivity of your merchandise.

We are also the first Polycarbonate manufacturer in Asia to incorporate Class 5000 clean rooms for our extrusion lines. (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).

For More information, visit our

Website: .tw

E-Catalogue: .tw/download/VULCAN%20Polycarbonate%20Sheets%20Catalogue.PDF

Youtube Channel: /user/VULCANPLASTICSTW for a brief tour of our factory.

We will be more than happy to assist you in choosing the right VULCAN Polycarbonate sheet for your application.
