VULCAN Platics

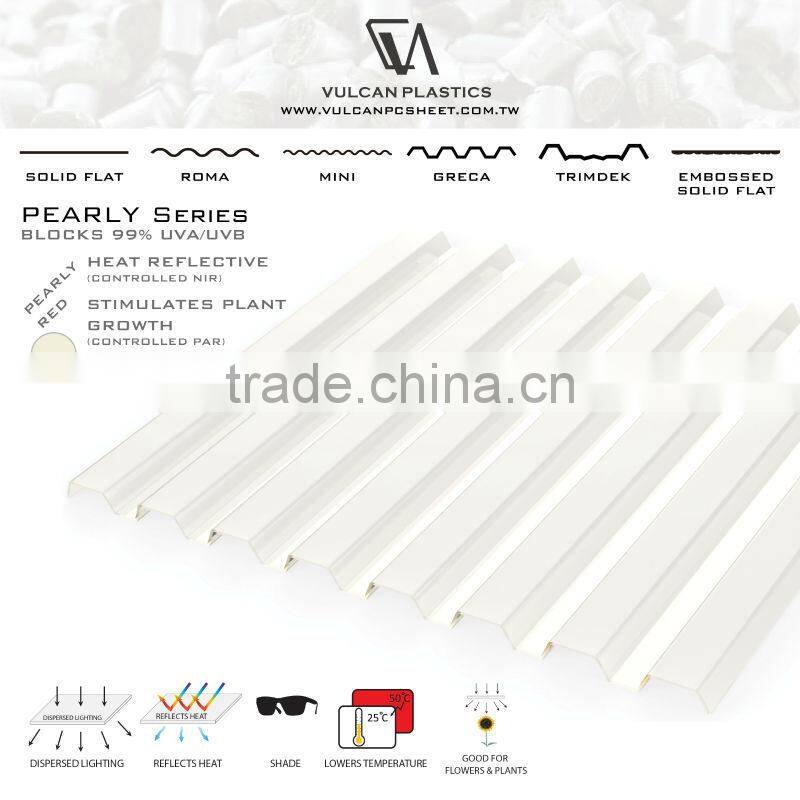

Polycarbonate Pearly RED Sheets
Sunlight Without Heat
PEARLY RED Technology: Sunlight without Heat
Near RED light make plants grow.
VULCAN PEARLY RED filters out Far Red Light* (735nm) which hinders plant growth and keeps Phytochromes activating near red light (665nm), Plants grow when the phytochromes are exposed to near red light, whereas exposure to far-red light halts the growth process.
* Far red light is at the far end of the visible spectrum, close to the infrared region.
VULCAN Polycarbonate Corrugated Pearly RED sheet has an eye catching Reddish / Greenish Hue, and is specially designed for plants and vegetation. The special Pearly RED pigment filters out unwanted far Infrared and keeps the near red light which plants need for better growth. Additional weather Resistant properties ensure a longer lifespan.
The Transmission Spectrum chart of VULCAN Polycarbonate Pearly RED and Pearly GREEN

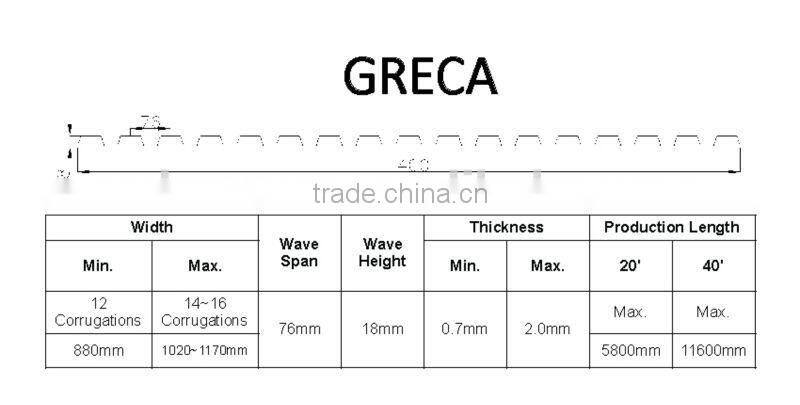

GRECA (76/18)
VULCANPolycarbonate Corrugated GRECA (76/18) sheets - the newest addition to the Corrugated profile family. Spanning 1170mm with a total of 16 corrugations, VULCAN GRECA sheet provides yet another cost effective solution for your projects. VULCAN GRECA sheets are widely used in the Americas.
Width | Wave Span | Wave Height | Thickness | Production Length | |||
Min. | Max. | Min. | Max. | 20' | 40' | ||
12 | 14~16 Corrugations | 76mm | 18mm | 0.6mm | 2.0mm | Max. | Max. |
880mm | 1020~1170mm | 5800mm | 11600mm | ||||
Specifications
- Profile: Polycarbonate GRECA (76/18) Angular Corrugated
- Raw Material: 100% Virgin Resin from Mitsubishi Japan, Bayer Germany, Sabic (GE).
- UV Coating: Optical Grade SD Polyca UV400 Coating (Sumitomo Dow Chemicals Japan)
- PEARLY RED Coating: Weather resistant grade material developed with a renown pigment manufacturer in Germany.
- Color: Reddish / Greenish Hue
- Thickness: 0.6mm~2.0mm
- Width: 880mm~1170mm
- Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request)
- Warranty: 10 years. (5 for yellowing, 10 for usage)
Product Strengths
Base Material
- 100% Virgin UV included raw material ensures that your sheets can withstand harmful UV rays for at least one year.
UV400 Coating
- Optical Grade SD Polyca UV400 coating as used on lenses, glasses, and sunglasses. 99.5% of harmful UV wavelengths between 290nm~400nm are blocked.
Pearly RED Coating
- With particle sizes ranging from 5nm~25nm, the Pearly RED pigment is tailored to have a transmission spectrum that matches photosynthesis requirements of vegetation quite closely
Production Method
- Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)
High impact resistance
- 250 times the impact strength over glass and 10 times over FRP and Acrylic.
Fire Retardant
- Polycarbonate sheets produced with 100% Virgin material have a melting point of at least 190 degrees Celsius and produce only odorless smoke when burned.
Design Flexibility
- VULCAN Polycarbonate sheets can be tailored with different coatings to provide different light transmission rates and properties. Customers can choose between LiteGuide, Pearly RED, Pearly GREEN, Ti-Lite, and Valuview.
Quality Standards
VULCANPolycarbonate sheets are produced with the highest of standards available in the industry. We are the first Polycarbonate manufacture in Asia to incorporate clean rooms for all of our extrusion lines. Our latest Breyer Solid Flat sheet machine is installed in a Class 5000 clean room (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).
Machinery
We have a total of 5 co-extrusion lines, 2 for corrugated sheets and 3 for solid sheets. Our machines are imported from Toshiba-Hitachi Japan, Omipa Italy and Breyer Germany. Our co-extrusion machine uses feedblocks from the industry leading EDI (Extrusion Dies Industries) company and controlled by the also industry leading Dynisco company computers.
Applicable Areas
Signs and Billboards
Agricultural Greenhouse
Garden Greenhouse
Flower Greenhouse
Multi-span Greenhouse
Singe-span Greenhouse
Greenhouse roofing
Greenhouse Walls
Aquaculture Greenhouse
Polycarbonate sound barriers
Polycarbonate Highway barriers
Polycarbonate Skylight
Polycarbonate Warehouse
Polycarbonate Roofing
Warehouse Roofing
Warehouse Skylight
Industrial Skylight
Interior decoration
Car Park
Glazing
Patios
Raw Material
As with all of our polycarbonate products, VULCAN Pearly uses 100% Virgin Material from Mitsubishi Japan, Bayer Germany, Sabic (GE), and Optical Grade SD Polyca UV400 Coating resin from Sumitomo Dow Chemicals Japan to protect itself from harmful UV rays.
VULCAN Polycarbonate Sheets are produced using advanced Co-Extrusion process to ensure an evenly UV coated surface. We use feedblocks from EDI (Extrusion Dies Inc.) and the extrusion process is controlled from Dynisco systems.
Feedblocks: EDI (Extrusion Dies Industries) to ensure even material flow.
Co-extrusion process is fully computer controlled by Dynisco systems.
Impurity leads to less quality, which is why VULCAN Polycarbonate sheets are produced in clean rooms; the cleaner the environment, the cleaner the sheets, and hence a longer lifespan.
Class 5000 Clean Rooms
Optional Plus+ surface treatment provides added light softening properties.
(MOQ required)
