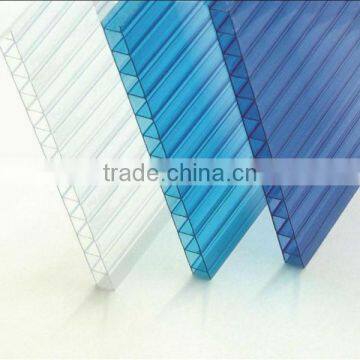

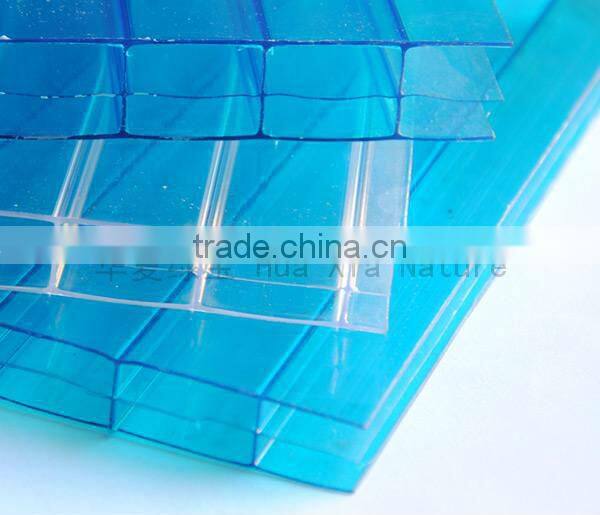

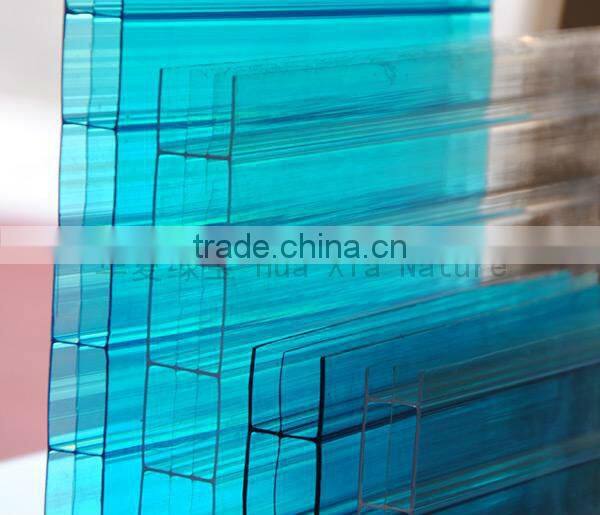

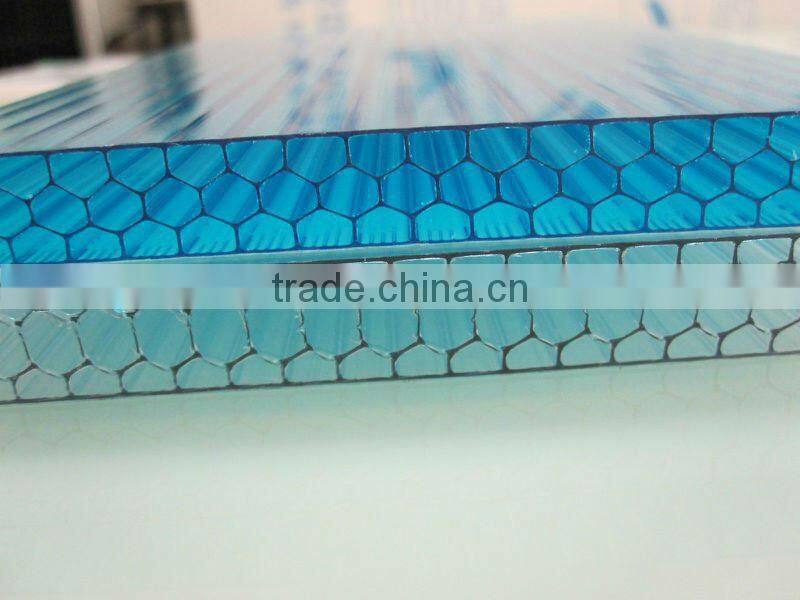

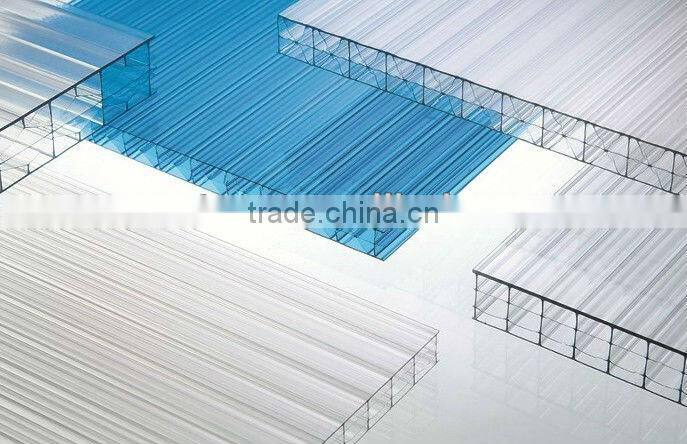

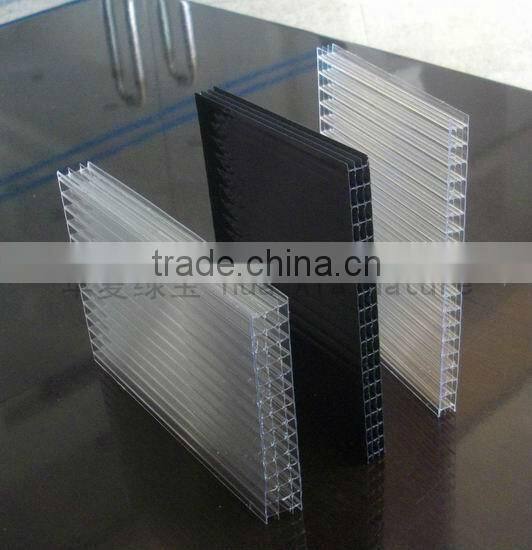

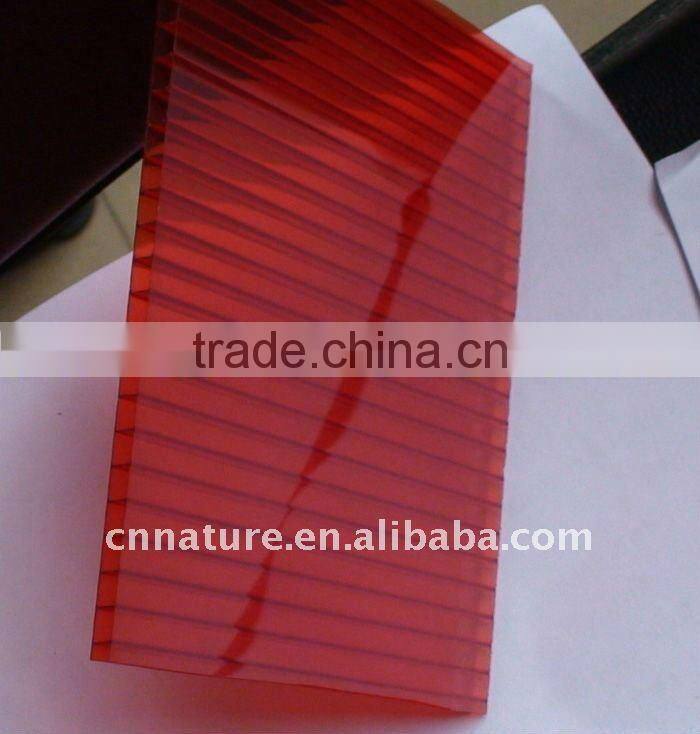

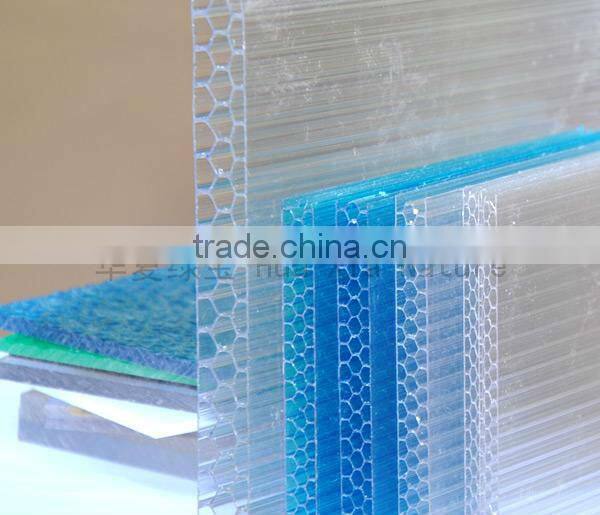

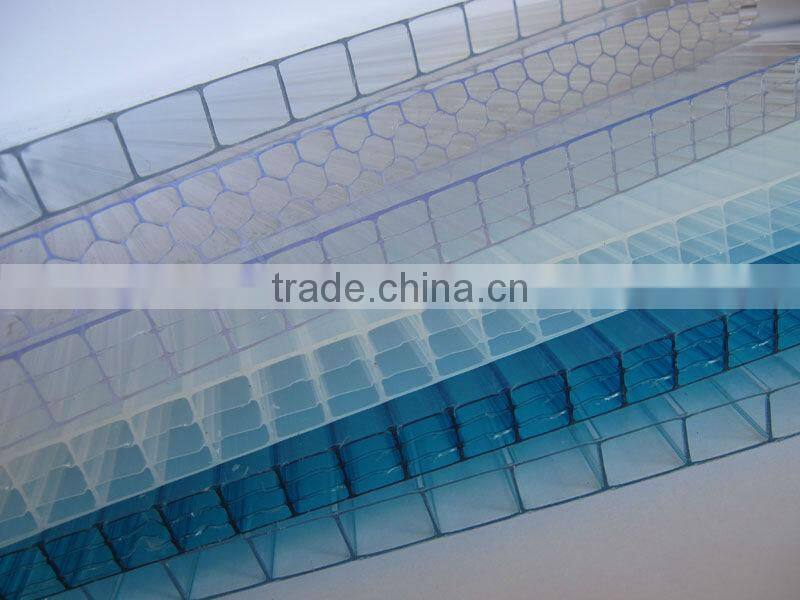

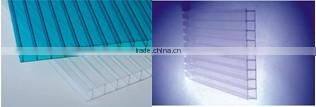

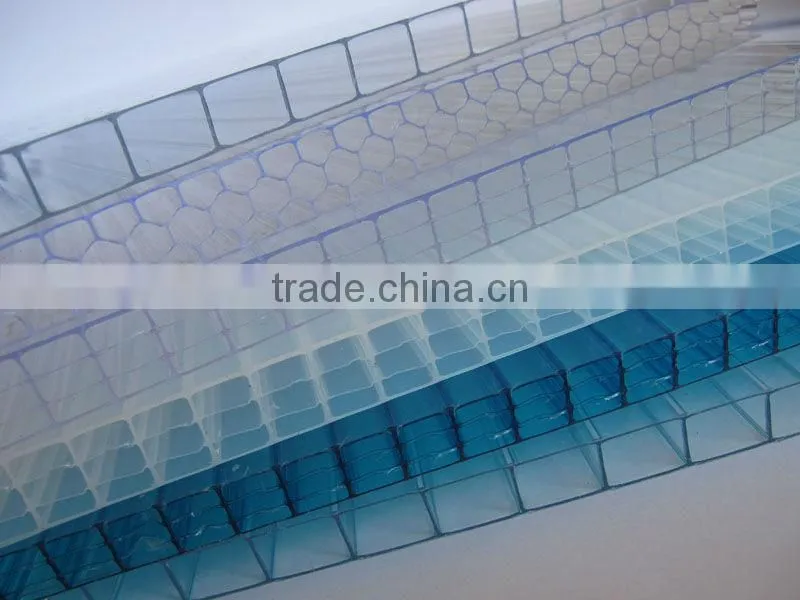

multi-wall hollow sheet&transparent polycarbonate hollow sheet

Specifications

1.Lightweight
2.UV stable
3.Strong
4.Insulating
5.Easily worked

 Macrolon multi-wall hollow sheet&polycarbonate sheet





1.Features

1) Light transmission: up to 88%
2) Impact resistance: 80 times that of glass, 15 times that of acrylic sheet
3) Temperature resistance range: -40 ~ 120oC
4) Light weight: only 1/12 of the weight of glass of the same thickness
5) Ultraviolet resistance: with UV protective layer
6) Flame resistance: rated class B1
7) Sound and heat proof

2.Specification
1) Width:1220mm--- 2100mm (our regular specification)
2) Length: 20m----50m (our regular specification)
3) available in 4mm,5mm,6mm,7.5mm,8mm,10mm,12mm,14mm,16mm ,18mm.
4) Color: clear, lake blue, green, blue, opal, bronze, gray, red ,bronze( brown),blue-green, light-  green, clear, black, clear-embossed, light-embossed ,blue-embossed
5) Customized colors and dimensions available upon requests
6)Packing :Both sides covered with PE film



3.Applications:
1) Telephone booths
2) Road signs and advertisements
3) Billboards on lamp boxes
4) Lighting and partition walls for banks, hospitals and stations
5) Greenhouses for vegetables, zoos, aquatic products
6) Sound and heat insulation for expressways

7) Instrument and war industries - windscreens, army shields

Question & answer:







What are the standard sizes of the polycarbonate solid sheet?







The max width of the polycarbonate sheet is 2.1m, so the width of the sheet should not over 2.1m. Length is not limited, any length will be ok. If the thickness of the sheet is not over 4mm, the sheet can make the roll. Each roll can be 30-60m. If the sheet is over 4mm, the general length is 5.8m or 11.8m, which is convenience to load. The thickness of the polycarbonate sheet is from 1mm to 18mm.







What is the minimum order quantity from different colors and thicknesses?







The standard colors of the polycarbonate sheet are clear, opal, blue, green and brown. If the requirement color is our standard colors. Any quantity will be acceptable. If the requirement color is special color (red, yellow, grey, etc), the MOQ is 2000sq.m each color.







How long is the delivery time of polycarbonate sheet?







The general delivery time is 7-10 days for a container. If the order is too small or less than 200 square meters, the order should make with other customer’s order, which is the same as your requirement. And the delivery time will be longer than the usual.







Can you arrange less than container shipment?



Yes, we can.







What is the weight per sq.m from each thickness?







The weight of the polycarbonate solid sheet is 1.2kg/sqm.mm



For example: the thickness of the polycarbonate solid sheet is 2mm, the weight should be 1.2*2=2.4kg/sq.m







What means of Grade A and Grade B?







For our company, Grade A means the polycarbonate solid sheet is made of 100% virgin material. Grande B means the raw material of the polycarbonate solid sheet containing the recycled material.







What is the guarantee of the polycarbonate sheet?







If the polycarbonate sheet is made of 100% virgin material (Grade A), the guarantee is 10 years. If the polycarbonate sheet is belong to Grade B, the guarantee is 5 years.









Material	Bayer,Lexan,Teijin
Width	1220mm,1560mm,1820mm,2100mm
Length	no limited
Thickness	1.2-16mm
Color	Clear,green,opal,bronze,blue,orange,red
Notes	Special color,size can be customized







Technical Features



1) Impact strength:	850J/m. About 200-350 times of common glass.
2) Light weight:	About 1/2 times of glass of the same thickness.
3) Light transmission:	80%-92% for different thickness of clear color
4) Specific gravity:	1.2 g/cm3
5) Coefficient of thermal expansion:	0.065 mm/m° C
6) Temperature range:	-40° Cto 120° C
7) Heat conductivity:	2.3-3.9 W/m2 º
8) Tensile strength:	>=60N/mm2
9) Flexural strength:	100N/mm2
10) Heat deflection temperature	140 ° C
11) Modulus of elasticity:	2, 400mPa
12) Tensile street at break:	>=65mPa
13) Elongation at break:	>100%
14) Specific heat:	1.16J/kgk
15) Soundproof index:	4mm-27dB,10mm-33dB







Applications:

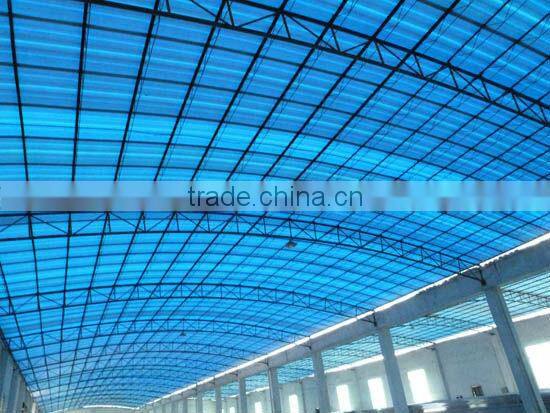

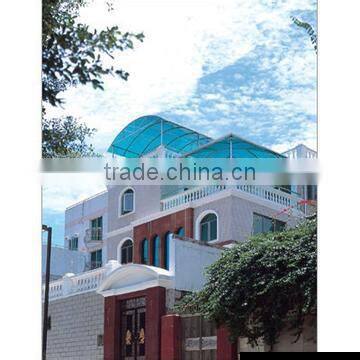

1) Roofing skylight for office building, department store, hotel, stadium, school, hospital.

2) soundproof shields on express ways.

3)LED diffused, Advertising lamp boxes, sign board.Telepohne booths.

4) Anti-riot shield, bullet resistant material, Bank ATMs.

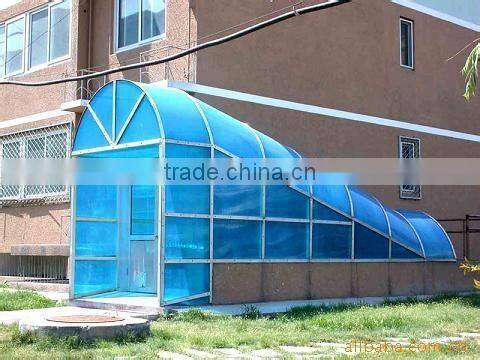

5) agricultural greenhouses, zoos, botanical gardens.

6) Swimming Pools roofing/cover/sheet

7)lighting for corridors, balcony, passages and subway entries, walkways.

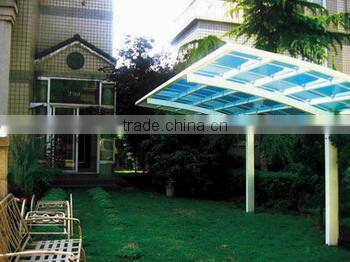

8) walls, roofs,windows,screens,shower enclosure and other indoor decoration material.

9) Instrument and machine windscreen
