LED Lighting module Accessories companies looking for distributor

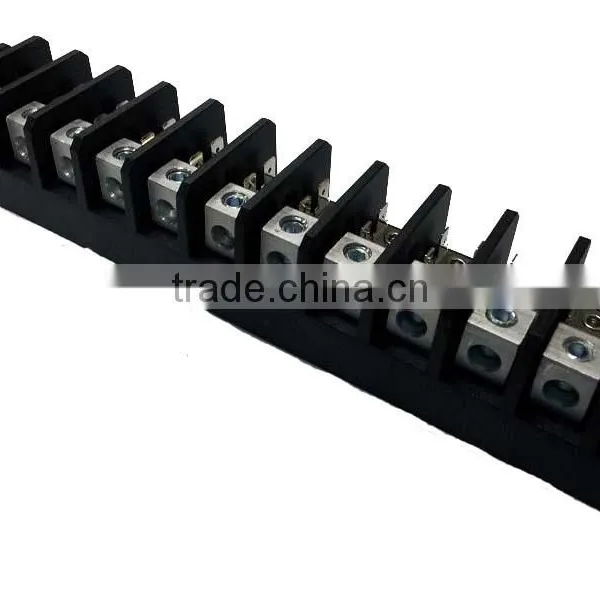

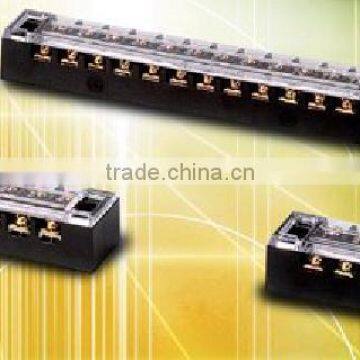

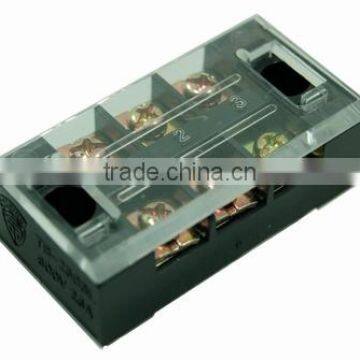

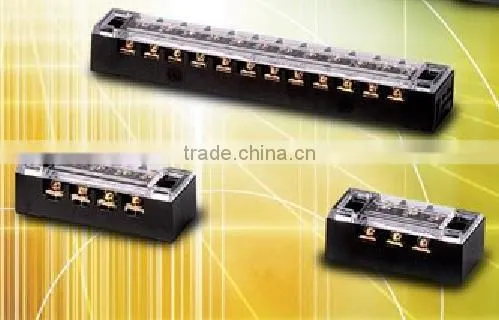

TGP-085-03A High Quality Mulit Pin Strip LED Lighting Connector
Product Description
•Item number: TGP-085-03A
•Rating: 600V, 85A, 3P

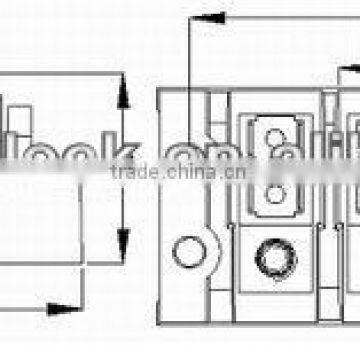

•Size: 79.0x41.0x33.2mm (LxWxH)
•Screw Size: Hexagon Socket Set Screw, 5/16-24
•Wire Size: 22.0mm2 / AWG 14-2
•Panel Mounting or free floating. Mounting holes are furnished at each end of the block.
•Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.
•UL/cUL Approved. File No. E257927
Packaging & Shipping
•Packing: 200pcs/N.W. :17.8kgs /carton
•Webpage: TGP-085 Series Power Distribution Terminal Block
| |||||||
Item No. |
TGP-085-02A |
TGP-085-03A |
TGP-085-04A |
TGP-085-05A |
TGP-085-06A |
TGP-085-07A |
TGP-085-08A |
Specifications |
|||||||

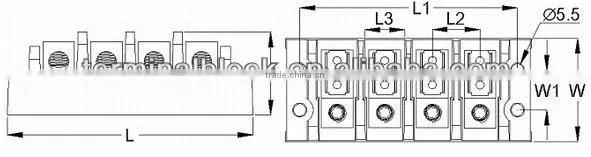

Total Length (L) [inch] |
2.354" (59.8mm) |
3.110" (79.0mm) |
3.835" (97.4mm) |
4.598" (116.8mm) |
5.362" (136.2mm) |
6.094" (154.8mm) |
6.850" (174.0mm) |
Ref. Length (L1) [inch] |
1.890" (48.0mm) |
2.638" (67.0mm) |
3.386" (86.0mm) |
4.134" (105.0mm) |
4.882" (124.0mm) |
5.630" (143.0mm) |
6.378" (162.0mm) |
| Ref. Length (L2) [inch] | 0.748" (19.0mm) | 0.748" (19.0mm) | 0.748" (19.0mm) | 0.748" (19.0mm) | 0.748" (19.0mm) | 0.748" (19.0mm) | 0.748" (19.0mm) |
| Ref. Length (L3) [inch] | 0.630" (16.0mm) | 0.630" (16.0mm) | 0.630" (16.0mm) | 0.630" (16.0mm) | 0.630" (16.0mm) | 0.630" (16.0mm) | 0.630" (16.0mm) |
| Width (W) [inch] | 1.614" (41.0mm) | 1.614" (41.0mm) | 1.614" (41.0mm) | 1.614" (41.0mm) | 1.614" (41.0mm) | 1.614" (41.0mm) | 1.614" (41.0mm) |
| Ref. Width (W1) [inch] | 0.630" (16.0mm) | 0.630" (16.0mm) | 0.630" (16.0mm) | 0.630" (16.0mm) | 0.630" (16.0mm) | 0.630" (16.0mm) | 0.630" (16.0mm) |
| Height (H) [inch] | 1.307" (33.2mm) | 1.307" (33.2mm) | 1.307" (33.2mm) | 1.307" (33.2mm) | 1.307" (33.2mm) | 1.307" (33.2mm) | 1.307" (33.2mm) |
| Screw (Line) | Hexagon Socket Set Screw, 5/16-24 | ||||||
| Rated Torque [in-lb] | 60 in-lb or 2.26 N-m | 60 in-lb or 2.26 N-m | 60 in-lb or 2.26 N-m | 60 in-lb or 2.26 N-m | 60 in-lb or 2.26 N-m | 60 in-lb or 2.26 N-m | 60 in-lb or 2.26 N-m |
| Quick Connect Size (Load) | 1/4" Q.C. 4 Tab (0.250" or 6.35 mm) | 1/4" Q.C. 4 Tab (0.250" or 6.35 mm) | 1/4" Q.C. 4 Tab (0.250" or 6.35 mm) | 1/4" Q.C. 4 Tab (0.250" or 6.35 mm) | 1/4" Q.C. 4 Tab (0.250" or 6.35 mm) | 1/4" Q.C. 4 Tab (0.250" or 6.35 mm) | 1/4" Q.C. 4 Tab (0.250" or 6.35 mm) |
| Poles | 2P | 3P | 4P | 5P | 6P | 7P | 8P |
| Electrical Specifications | |||||||
| Rated Voltage [V] | 600V | 600V | 600V | 600V | 600V | 600V | 600V |
| Rated Current [A] | 85A | 85A | 85A | 85A | 85A | 85A | 85A |
| Wire Size [AWG] | #2-14 AWG | #2-14 AWG | #2-14 AWG | #2-14 AWG | #2-14 AWG | #2-14 AWG | #2-14 AWG |
| Wire Size [mm2] | 2.0-22 mm2 | 2.0-22 mm2 | 2.0-22 mm2 | 2.0-22 mm2 | 2.0-22 mm2 | 2.0-22 mm2 | 2.0-22 mm2 |
| Materials | |||||||
| Insulator Materials | PBT | PBT | PBT | PBT | PBT | PBT | PBT |
| Color | Black | Black | Black | Black | Black | Black | Black |
| Flame Retarded Grade | UL 94V-0 | UL 94V-0 | UL 94V-0 | UL 94V-0 | UL 94V-0 | UL 94V-0 | UL 94V-0 |
| Temperature [oC] | 120oC | 120oC | 120oC | 120oC | 120oC | 120oC | 120oC |
| Approval | UL/cUL Approved. File No.E257927 | ||||||
