TF-10 53A 10mm2 Equal To Phoenix Type Din Rail Terminal Block
- 100000 Piece / Pieces per Month
- Keelung Port
- T/T Credit Card PayPal
- TB-1504 Fixed Barrier Type 4 Pole 600V 15 Amp Tyco Cable Connector
- TB-2504L Electric M4 Screw 600V 25A 4 Pole Phone Terminal Block
- TB-3503 600V 35A Fixed Barrier Shorting Three-Phase Terminal Block
- TB-3512 Industrial Fixed Type 35A 12 Way Telecom Terminal Block
- TA-100 35mm Din Rail Mount 600V 100A Junction Box Cable Connector
- TA-040 Din Rail Type 600V 40A Male Female Screw Terminal Strip
Product Details
Place of Origin: | Taiwan | Brand Name: | SHINING | Model Number: | TF-10 |
Number of Contacts: | Other, Any | Conductor Size: | Other, 28-6 AWG | Type: | Feed Through |
Packaging Details
200pcs/box, 1,600pcs/8boxes/N.W. :22.5kgs /carton
Product Description
TF-10 53A 10mm2 Equal To Phoenix Type Din Rail Terminal Block |
Gerneral Product Information | |
Item number: | TF-10 |
Rating: | 600V, 53A |
Size: | 48.0*8.0*47.0mm (L*W*H) |
Wire Size: | 10.0 mm2 (Stranded)/ 10.0 mm2 (Solid) |
Wire Size: | AWG 28~6 |
Dimensions [mm] | ||||
Item No. | Wire Range | Length (L) | Width (W) | Height (H) |
TF-2.5 | 2.5 mm2 | 48.0 mm | 5.0 mm | 47.0 mm |
TF-4 | 4.0 mm2 | 48.0 mm | 6.0 mm | 47.0 mm |
TF-10 | 10.0 mm2 | 48.0 mm | 8.0 mm | 47.0 mm |
TF-16 | 16.0 mm2 | 50.0 mm | 12.0 mm | 58.0 mm |
TF-35 | 35.0 mm2 | 58.0 mm | 16.0 mm | 71.0 mm |

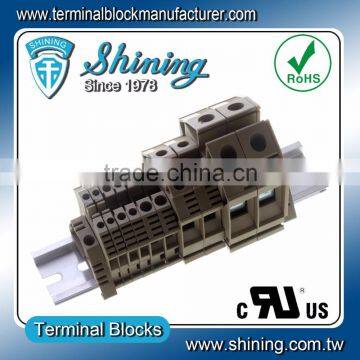

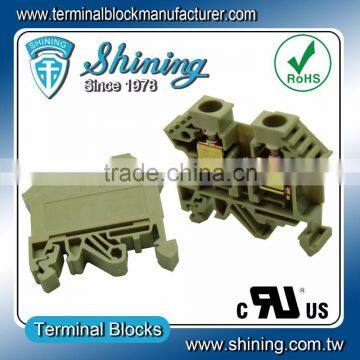

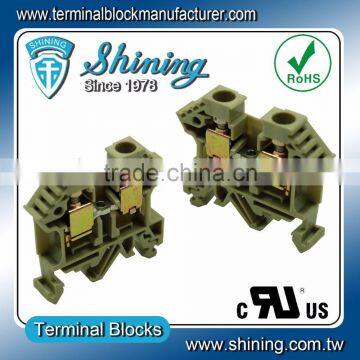

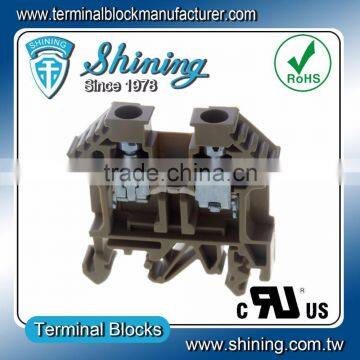

Product Photos |
Product Features |
Item Number: TF-10 Rated Voltage: 600V Rated Current: 53A Install Type: By 35mm Din Rail Pole: Any Pole Assembly is available Certificate: RoHS / UL Approved. Assembly with Din Rail TA-001A / TA-001S
The TF Series Feed Through Terminal Blocks offer savings in cost, space and time. These Terminal Blocks mount on Standard 35 x 7.5 mm DIN Rails and are design to meet world wide standards. The TF Series Terminal Blocks come in all wire ranges and no pre-treatment of the wire is necessary, even for stranded wire. A full line of accessories are available including End Plates, End Brackets (End Clamps), cross connectors for Circuit Bridge and Marking Tags. The TF Series Terminal Block plastic housing is made from Nylon with a UL94-V0 rating for 85°C. This assures ample dielectric strength for any industrial application. The Screws and Clamps are made of Steel with Zinc Plating, and together they generate a high locking action and provides an excellent vibration and corrosion resistant connection. |
Item No. | TF-2.5 | TF-4 | TF-10 | TF-16 | TF-35 | Remark |
Specifications |
| |||||
L x W x H [mm] | 48x5x47 | 48x6x47 | 48x8x47 | 50x12x58 | 58x16x71 | |
Rated Torque [N-m] | 0.34 | 0.62 | 0.11 | 1.81 | 2.82 | |
Rated Torque [in-lb] | 3.0 | 5.5 | 11.0 | 16.0 | 25.0 | |
Poles / Positions (P) | Any (n: the Number of Poles) | |||||
Electrical Specification | ||||||
Rated Voltage [V] | 600V | |||||
Rated Current [A] | 17A | 35A | 53A | 65A | 110A | |
Solid Wire Size [mm2] | 0.2~4mm2 | 0.2~6mm2 | 0.2~10mm2 | 2.5~25mm2 | 2.5~50mm2 | |
Stranded Wire Size [mm2] | 0.2~2.5mm2 | 0.2~4mm2 | 0.2~10mm2 | 2.5~16mm2 | 2.5~35mm2 | |
Wire Size [AWG] | 30~12 | 28~8 | 28~6 | 26~6 | 16~2 | |
Materials | ||||||
Insulator Materials | Nylon | |||||
Color | Beige(Gray), Blue, or other colors. (White, Black, Red, Green, ...) | |||||
Flame Retarded Grade | UL94V-0 | |||||
Temperature [℃] | 85℃ | |||||
Approval | UL/cUL approved. File No. E257927 | |||||
Accessories & Parts | ||||||
End Plate | TF-EP2.5-10 | TF-EP16 | TF-EP35 | |||
End Clamp | TF-ECL (TF-ECH) | TF-ECH | ||||
DIN Mount Rail | TA-001A / TA-001S (35mm DIN Rail) | |||||
Marker Strip (10pcs / strip) | M-MKH5X5- M-MKH5X5-10 M-MKH5X5-11 M-MKH5X5-22 M-MKV5X5-10 M-MKH5X5-N M-MKH5X5-G M-MKH5X5-L1 M-MKH5X5-11 | M-MKH6X5- (Blank) M-MKH6X5-11 (Horizontal 1~1) M-MKH6X5-10 (Horizontal 1~0) M-MKV6X5-10 (Vertical 1~0) M-MKV6X5-22 (Vertical 2~2) M-MKH6X5-N (Horizontal N) M-MKH6X5-G (Horizontal grounding symbol) M-MKH6X5-L1 (Horizontal L1)(L2, L3 are availabel) M-MKH6X5-11 (Horizontal 11~20) M-MKV6X11-380 (Vertical 380) M-MKV6X11-12V (Vertical 12V)
|
Color: White (Print: Black) Blank, N, Grounding, L1, L2, L3,... 1~0, 11~20, .../0, 1, 2, 3, ...~0v | |||
Bridge Assembly Kit 10P | TF-BAK2.5- P10 | TF-BAK4- P10 | TF-BAK10- P10 | TF-BAK16- P10 | TF-BAK35- P10 | A 10P short circuit Bridge Assembly Kit (BAK) include 10bridge screws, 10 bridge tube, and a 10P bridge bar. |
Short Circuit Bridge Kit 2P (2P~9P available) | TF-BAK2.5- P2 (P2~P9) | TF-BAK4- P2(P2~P9) | TF-BAK10- P2 (P2~P9) | TF-BAK16- P2 (P2~P9) | TF-BAK35- P2 (P2~P9) | A 2P short circuit Bridge Assembly Kit (BAK) include 2 bridge screws, 2 bridge tubes, and a 2P bridge bar. |
Bridge Screw (BS) | TF-BS2.5 | TF-BS4-16 | TF-BS35 | Small package: 25, 50, 100pcs/ per bag | ||
Bridge Tube (BT) | TF-BT2.5 | TF-BT4-16 | TF-BT35 | Small package: 25, 50, 100pcs/ per bag | ||
Bridge Bar (BB) 10P | TF-BB2.5- P10 | TF-BB4- P10 | TF-BB10- P10 | TF-BB16- P10 | TF-BB35- P10 | A 10Poles Bridge Bar |
Bridge Bar (BB) 2P (2P~9P available) | TF-BB2.5- P2 (P2~P9) | TF-BB4- P2 (P2~P9P) | TF-BB10- P2 (P2~P9) | TF-BB16- P2 (P2~P9) | TF-BB35- P2 (P2~P9) | A 2Poles Bridge Bar, 2~9P available |
Partition Plate (PT) | TF-PT2.5 | TF-PT4- 10 | TF-PT16 | TF-EP35 | Partition Plate for short circuite bridge |
Packaging |
200pcs/box, 1,600pcs/8boxes/N.W. :22.5kgs /carton |
Shipping information |
1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis. |
2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline. |
Our Services |
Shining E&E Industrial Co., Ltd. is a well-experienced manufacturer, offering Electronic Components, Plastic Products, Terminal Blocks and Fuse Holders for more than 30 years. We mainly provide Ceramic Terminal Block, Fuse Clip, Solid State Relay (SSR), Barrier Strip, Power Terminal Block, Insulators, Screw Terminal Block, Electrical Connectors, Busbar Support and Terminal Block Connector, all with superior quality. If you need more information about Electrical Terminal Blocks and Fuse Blocks, please do not hesitate to contact us. |
Shining E&E Industrial A specialized supplier of terminal blocks, fuse holders, barrier strips, and solid state relays (SSR) since 1978. |
Shining E&E Industrial Co., Ltd., founded in 1978, is a specialized manufacturer and supplier of plastic and electronic components products. We have experienced growth steadily year after year. Since 1992, our oversea factory, which is located in GuanDong Province, China, has been built to support our continuously expanding business. Awarded SGS ISO 9001:2000 certification since 2005.
We have endeavored to the design and fabrication of all kinds of plastic products and have profound OEM/ODM experience with domestic and world-famous enterprises, such as TECO, TAIAN, Wal-Mart, Kmart, Target, Springs, and Sears, and so on. At present, we are extending our business to North America, Middle America, South America, Europe, Asia, Australia, and Far East countries.
We have firmly believed in the idea of consistent quality, service, honesty, and responsibility, which is also our policy to satisfy our customers with the most competitive price, the excellent quality, and the best service. If you are interested in any of our products, please feel free to contact with us immediately. We look forward to building a long-term cooperation relationship and bringing a mutual benefits with you. We are very interested in cooperating with manufacturers in other fields and look forward to benefit for each other. "Working For A Better World" is our slogan. We deeply expect to have this world to be safer and better. |
Certificates |
FAQ |
Q: What are the proper Torque Values for Terminal Blocks? A: The torque depends on the type and size of screw/hardware used in the terminal block. Torque values can be found on our spec sheet.
Q: What are the proper using conditions and temperature for the Terminal Blocks? A: For terminal blocks made from plastic, conditions with strong acid, alkali or greasy, or the rate of humidity is more than 60% should be avoided. Temperature should be within -40°C~110°C, and do not use them in frozen or dew formed condition.
Q: How can I get your quotation? A: Please provide us informations as below: 1. Item Number. 2. Quantity. 3. Company Profile (Name, Tel, Fax, Address, and Webpage) 4. Any Other Relevant Details.
Q: How long is the lead time after placing the order? A: Lead time depends on a number of factors, such as the stock and production status. Usually the sample orders take about 2~3 business days, and the mass orders take about 7~14 business days after the order is placed.
Q: How long does the delivery time take? A: We send our goods from Taiwan, and the delivery time depends on the location of your delivery address, and the shipping way will be Express Service, Sea Shipping, Air Shipping for you reference. Express Service: The ETA will be 3~7 days after remitting the Payment. Sea Shipping and Air Shipping: It will be depended on Logistic Schedule after remitting the Payment.
Q: Which type of terminal block should I choose? A: First, you need to check how much ampere and voltage rating you require and how many wires need to be connected, and how to be connected. In addition, you can choose a way you prefer to install your terminal blocks (by screwing, plugging, welding or you can clip or screw them on a DIN rail)? Or do you have any other special requirement (heat resistant, grounding, different colors or other customized demand)? |
