TB-060 Panel Mounted 60A Copper Busbar Terminal Block Connector
- 100000 Piece / Pieces per Month
- Keelung Port
- T/T Credit Card PayPal
- TB-100 Panel Mounted Insulated 100A RCA Terminal Block Connector
- TB-125 Assembly Type Barrier 600V 125 Amp Japan Wire Connector
- TB-1512 Plactic With Brass 600V 15A 12 Pole Krone Terminal Strip
- TE-200 600V 200A M10 Screw Din Rail Surface Mount Terminal Board
- TB-3512 Insulated 600V 35A 12 Way Test Disconnect Terminal Block
- TB-2504 Panel Mounted Fixed Type 4 Pole 600V 25A AC Cable Connector
Product Details
Place of Origin: | Taiwan | Brand Name: | SHINING | Model Number: | TB-060 |
Number of Contacts: | 1 - 10 | Conductor Size: | 1- 5 AWG | Type: | Barrier |
Packaging Details
50pcs/box, 400pcs/8boxes/N.W. :16.0kgs /carton
Product Description
TB-060 Panel Mounted 60A Copper Busbar Terminal Block Connector |
Gerneral Product Information | |
Item number: | TB-060 |
Rating: | 600V, 60A |
Size: | 62.5*52.0*34.0mm (L*W*H) |
Wire Size: | 16.0 mm2 / AWG 6 |
Screw Size: | M6 |
Dimensions [mm] | ||||
Item No. | Poles (P) | Length (L) | Width (W) | Height (H) |
TB-060-01P | 1 | 20.5*1+42.0=62.5 | 52.0 mm | 34.0 mm |
TB-060-02P | 2 | 20.5*2+42.0=83.0 | ||
TB-060-03P | 3 | 20.5*3+42.0=103.5 | ||
TB-060-04P | 4 | 20.5*4+42.0=124.0 | ||
TB-060-05P | 5 | 20.5*5+42.0=144.5 | ||
TB-060-nP | n | 20.5*n+42.0 | ||
42.0 mm = Length of End Plate = 21.0 mm X 2 pcs |

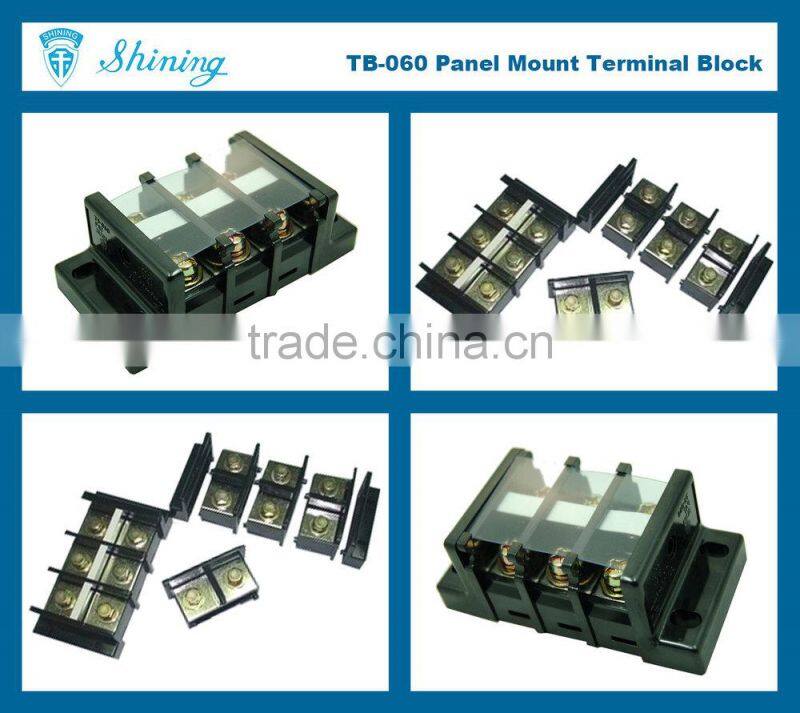

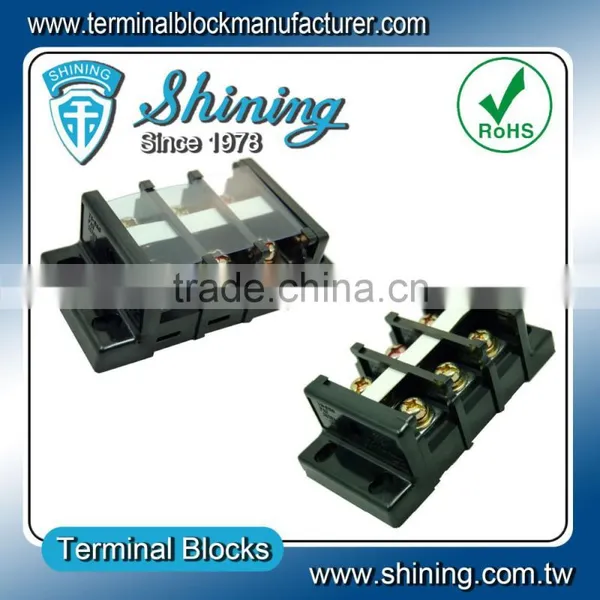

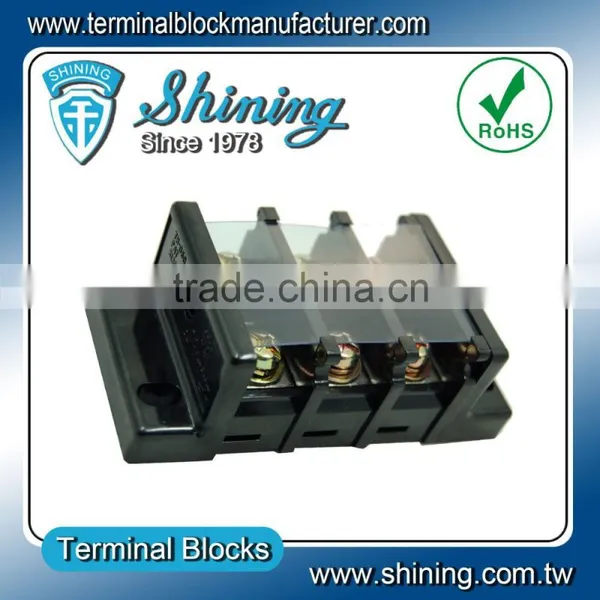

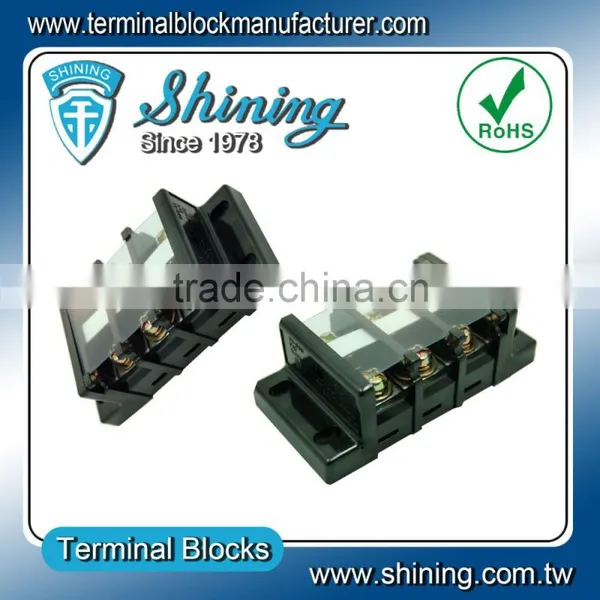

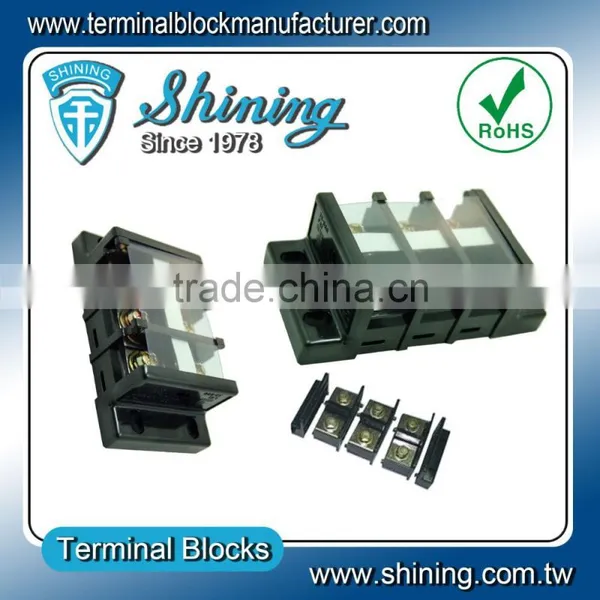

Product Photos |
Product Features |
Item Number: TB-060 Rated Voltage: 600V Rated Current: 60A Install Type: By Panel Mounted Pole: Any Pole Assembly is available Certificate: RoHS
TB Series Terminal Block are Panel Mounted Terminal Blocks, the basic color is black. The product color can be changed according to the customer requirements. If you want to install the Terminal Block on Din Rail, you can refer our TE Series 35mm Din Rail Mounted Terminal Blocks. There are reserved install holes on both sides. Load current can be 60A, 80A, 100A, 125A, 150A, 200A, 300A, 400A. The products are with a Transparent Cover or Protective Cover, whose materials are PVC, this makes the products are durable. Any number of poles can be assembled into the cartridge. About Paper Marker Strip, We can also provide Typing Service according to the customer requirements. Please see the specification sheet of our TB Series Panel Mounted Terminal Blocks Below: |
Spectification Sheet | ||||
TB Series Product Picture | ||||
Item No. | TB-060 | TB-080 | TB-100 | TB-125 |
Specifications | ||||
Total Length (L) [mm] | 20.5*n+42.0 | 20.5*n+42.0 | 26.5*n+42.0 | 26.5*n+42.0 |
Ref. Length (L1) [mm] | 20.5*n+26.5 | 20.5*n+26.5 | 26.5*n+26.5 | 26.5*n+26.5 |
Gap (A) [mm] | 16.5 | 16.5 | 22.5 | 22.5 |
Pitch (B) [mm] | 20.5 | 20.5 | 26.5 | 26.5 |
Width (W) [mm] | 52.0 | 52.0 | 64.0 | 64.0 |
Ref. Width (W1) [mm] | 30.0 | 30.0 | 35.0 | 35.0 |
Height (H) [mm] | 34.0 | 34.0 | 38.0 | 38.0 |
Ref. Height (H1) [mm] | 11.0 | 11.0 | 15.0 | 15.0 |
Screw (C) | M6 | M6 | M8 | M8 |
(Steel, Zinc Plated) | ||||
Rated Torque [N-m] | 2.5 | 2.5 | 6.0 | 6.0 |
Rated Torque [in-lb] | 22.1 | 22.1 | 53.1 | 53.1 |
Poles/Positions (P) | Any (n: the Number of Poles) | |||
Electrical Specification | ||||
Rated Voltage [V] | 600V | 600V | 600V | 600V |
Rated Current [A] | 60A | 80A | 100A | 125A |
Wire Size [mm2] | 16.0 mm2 | 25.0 mm2 | 35.0 mm2 | 50.0 mm2 |
Wire Size [AWG] | AWG 6 | AWG 4 | AWG 2 | 1 |
Materials | ||||
Insulator Materials | PC (PA66) | |||
Color | Black (White, Blue, Red, Brown, ...) | |||
Flame Retarded Grade | UL94V-2 (UL94V-0) | |||
Operating Temperature [℃] | -40℃~+110℃ (Max: +220℃) | |||
Conductor | Brass, Nickel Plated (Copper, Tin Plated) | |||
Accessories & Parts | Paper Marker Strips & Transparent Cover come with products for free. Others are optional. Potective Cover is optional for the althernative of Transparent Cover. | |||
End Plate | TB-060EP | TB-080EP | TB-100EP | TB-125EP |
End Clamp | N/A | |||
DIN Mount Rail | N/A. Apply Screws for mounting/fixing. | |||
Protective Cover | M-PCV-A060 | M-PCV-A060 | N/A | N/A |
Transparent Cover | M-CV-060 | M-CV-060 | M-CV-100 | M-CV-100 |
Paper Marker Strip (Free) | M-MKS-060 | M-MKS-060 | M-MKS-060 | M-MKS-060 |
Mounting Rod [mm] (Steel) | M-MRD-060S | M-MRD-060S | M-MRD-060S | M-MRD-060S |
Remarks | Ex: TE-060-08P (8 poles assembly of TB-060) |
TB Series Product Picture | ||||
Item No. | TB-150 | TB-200 | TB-300 | TB-400 |
Specifications | ||||
Total Length (L) [mm] | 30.0*n+44.0 | 35.0*n+44.0 | 42.0*n+50.0 | 50.0*n+50.0 |
Ref. Length (L1) [mm] | 30.0*n+27.5 | 35.0*n+27 | 42.0*n+30.5 | 50.0*n+30.5 |
Gap (A) [mm] | 26.0 | 31.0 | 37.0 | 45.0 |
Pitch (B) [mm] | 30.0 | 35.0 | 42.0 | 50.0 |
Width (W) [mm] | 70.0 | 80.0 | 106.0 | 106.0 |
Ref. Width (W1) [mm] | 40.0 | 50.0 | 60.0 | 60.0 |
Height (H) [mm] | 40.0 | 40.0 | 58.0 | 58.0 |
Ref. Height (H1) [mm] | 18.0 | 22.0 | 25.0 | 28.0 |
Screw (C) | M8 | M10 | M10 | M10 |
(Steel, Zinc Plated) | ||||
Rated Torque [N-m] | 6.0 | 10.0 | 10.0 | 10.0 |
Rated Torque [in-lb] | 53.1 | 88.5 | 88.5 | 88.5 |
Poles/Positions (P) | Any (n: the Number of Poles) | |||
Electrical Specification | ||||
Rated Voltage [V] | 600V | 600V | 600V | 600V |
Rated Current [A] | 150A | 200A | 300A | 400A |
Wire Size [mm2] | 60.0 mm2 | 100.0 mm2 | 175.0 mm2 | 280.0 mm2 |
Wire Size [AWG] | 1/0 | 3/0 | 350 | 550 |
Materials | ||||
Insulator Materials | PC (PA66) | |||
Color | Black (White, Blue, Red, Brown, ...) | |||
Flame Retarded Grade | UL94V-2 (UL94V-0) | |||
Operating Temperature [℃] | -40℃~+110℃ (Max: +220℃) | |||
Conductor | Brass, Nickel Plated (Copper, Tin Plated) | |||
Accessories & Parts | Paper Marker Strips & Transparent Cover come with products for free. Others are optional. Potective Cover is optional for the althernative of Transparent Cover. | |||
End Plate | TB-150EP | TB-200EP | TB-300EP | TB-400EP |
End Clamp | N/A | |||
DIN Mount Rail | N/A. Apply Screws for mounting/fixing. | |||
Protective Cover | N/A | N/A | N/A | N/A |
Transparent Cover | M-CV-100 | M-CV-200 | M-CV-300 | M-CV-300 |
Paper Marker Strip (Free) | M-MKS-060 | M-MKS-060 | M-MKS-060 | M-MKS-060 |
Mounting Rod [mm] (Steel) | M-MRD-060S | M-MRD-060S | M-MRD-060S | M-MRD-060S |
Remarks | Ex: TE-060-08P (8 poles assembly of TB-060) |
Packaging |
50pcs/box, 400pcs/8boxes/N.W. :16.0kgs /carton |
Shipping information |
1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis. |
2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline. |
Our Services |
Shining E&E Industrial Co., Ltd. is a well-experienced manufacturer, offering Electronic Components, Plastic Products, Terminal Blocks and Fuse Holders for more than 30 years. We mainly provide Ceramic Terminal Block, Fuse Clip, Solid State Relay (SSR), Barrier Strip, Power Terminal Block, Insulators, Screw Terminal Block, Electrical Connectors, Busbar Support and Terminal Block Connector, all with superior quality. If you need more information about Electrical Terminal Blocks and Fuse Blocks, please do not hesitate to contact us. |
Shining E&E Industrial A specialized supplier of terminal blocks, fuse holders, barrier strips, and solid state relays (SSR) since 1978. |
Shining E&E Industrial Co., Ltd., founded in 1978, is a specialized manufacturer and supplier of plastic and electronic components products. We have experienced growth steadily year after year. Since 1992, our oversea factory, which is located in GuanDong Province, China, has been built to support our continuously expanding business. Awarded SGS ISO 9001:2000 certification since 2005.
We have endeavored to the design and fabrication of all kinds of plastic products and have profound OEM/ODM experience with domestic and world-famous enterprises, such as TECO, TAIAN, Wal-Mart, Kmart, Target, Springs, and Sears, and so on. At present, we are extending our business to North America, Middle America, South America, Europe, Asia, Australia, and Far East countries.
Our main products include various automatic control components and electronic components, such as terminal blocks, euro terminal strips, double row barrier strips, single row barrier strips, connectors, power blocks, fuse holders, fuse blocks, fuse links, solid state relays, relay sockets, insulators, switches, buttons, heat sinks, and related accessories. Meanwhile, we accept the design and fabrication of steel molds as well. Besides, our other products lines also include curtain draperies, hardware, and finials, bamboo floors, tagging guns, spray guns, plastic brushes, and miscellaneous hardware and plastic products.
We have firmly believed in the idea of consistent quality, service, honesty, and responsibility, which is also our policy to satisfy our customers with the most competitive price, the excellent quality, and the best service. If you are interested in any of our products, please feel free to contact with us immediately. We look forward to building a long-term cooperation relationship and bringing a mutual benefits with you. We are very interested in cooperating with manufacturers in other fields and look forward to benefit for each other. "Working For A Better World" is our slogan. We deeply expect to have this world to be safer and better. |
