TF-10 Rail Mounted 600V 53A Screw Clamp Terminal Block Connector
- 100000 Piece / Pieces per Month
- Keelung Port
- T/T Credit Card PayPal
- TF-16 Euro Type 600V 65A Screw Clamp 16mm Din Wire Connector
- TF-G4 Euro Style Combined Type Wiring 4mm Ground Wire Connector
- TF-G2.5 Euro Type 2.5mm Equal To Phoenix Earth Terminal Block
- TF-35 Euro Type 600V 110A Screw Clamp 35mm Din Cable Connector
- TGP-085-08A Power Distribution 85A Multi Pole Terminal Connector
- TA-400 600V 400 Amp Din Rail Mounted 100 Pair MDF Terminal Block
Product Details
Place of Origin: | Taiwan | Brand Name: | SHINING | Model Number: | TF-10 |
Number of Contacts: | Other, Any | Conductor Size: | Other, 28-6 AWG | Type: | Feed Through |
Packaging Details
200pcs/box, 1,600pcs/8boxes/N.W. :22.5kgs /carton
Product Description
TF-10 Rail Mounted 600V 53A Screw Clamp Terminal Block Connector |
Gerneral Product Information | |
Item number: | TF-10 |
Rating: | 600V, 53A |
Size: | 48.0*8.0*47.0mm (L*W*H) |
Wire Size: | 10.0 mm2 (Stranded)/ 10.0 mm2 (Solid) |
Wire Size: | AWG 28~6 |
Dimensions [mm] | ||||
Item No. | Wire Range | Length (L) | Width (W) | Height (H) |
TF-2.5 | 2.5 mm2 | 48.0 mm | 5.0 mm | 47.0 mm |
TF-4 | 4.0 mm2 | 48.0 mm | 6.0 mm | 47.0 mm |
TF-10 | 10.0 mm2 | 48.0 mm | 8.0 mm | 47.0 mm |
TF-16 | 16.0 mm2 | 50.0 mm | 12.0 mm | 58.0 mm |
TF-35 | 35.0 mm2 | 58.0 mm | 16.0 mm | 71.0 mm |

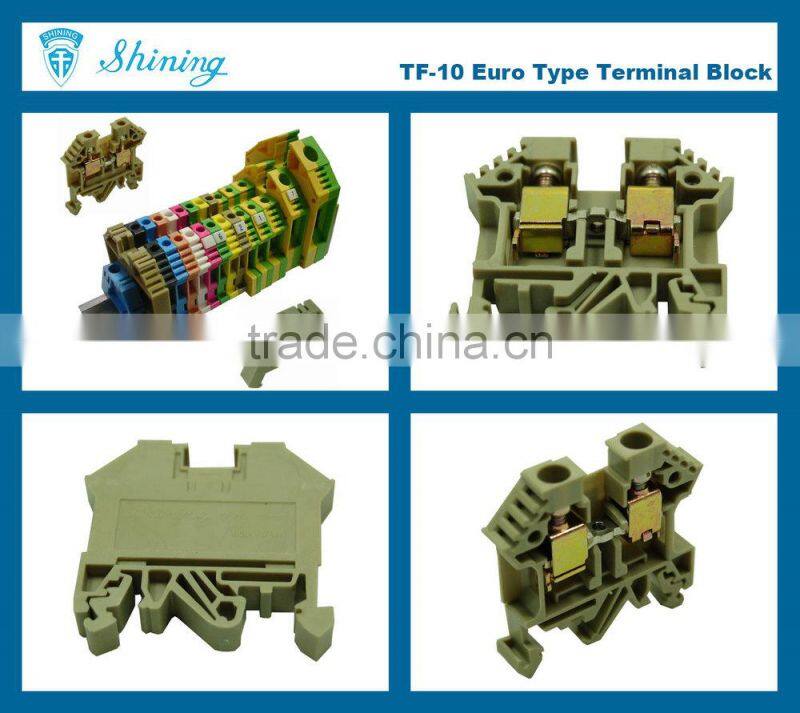

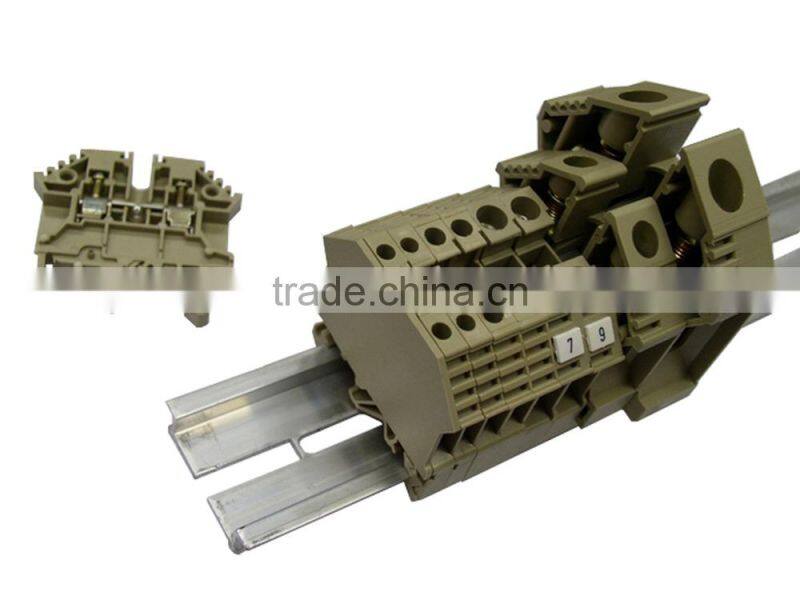

Product Photos |
Product Features |
Item Number: TF-10 Rated Voltage: 600V Rated Current: 53A Install Type: By 35mm Din Rail Pole: Any Pole Assembly is available Certificate: RoHS / UL Approved. Assembly with Din Rail TA-001A / TA-001S
The TF Series Feed Through Terminal Blocks offer savings in cost, space and time. These Terminal Blocks mount on Standard 35 x 7.5 mm DIN Rails and are design to meet world wide standards. The TF Series Terminal Blocks come in all wire ranges and no pre-treatment of the wire is necessary, even for stranded wire. A full line of accessories are available including End Plates, End Brackets (End Clamps), cross connectors for Circuit Bridge and Marking Tags. The TF Series Terminal Block plastic housing is made from Nylon with a UL94-V0 rating for 85°C. This assures ample dielectric strength for any industrial application. The Screws and Clamps are made of Steel with Zinc Plating, and together they generate a high locking action and provides an excellent vibration and corrosion resistant connection. |
Item No. | TF-2.5 | TF-4 | TF-10 | TF-16 | TF-35 | Remark |
Specifications |
| |||||
L x W x H [mm] | 48x5x47 | 48x6x47 | 48x8x47 | 50x12x58 | 58x16x71 | |
Rated Torque [N-m] | 0.34 | 0.62 | 0.11 | 1.81 | 2.82 | |
Rated Torque [in-lb] | 3.0 | 5.5 | 11.0 | 16.0 | 25.0 | |
Poles / Positions (P) | Any (n: the Number of Poles) | |||||
Electrical Specification | ||||||
Rated Voltage [V] | 600V | |||||
Rated Current [A] | 17A | 35A | 53A | 65A | 110A | |
Solid Wire Size [mm2] | 0.2~4mm2 | 0.2~6mm2 | 0.2~10mm2 | 2.5~25mm2 | 2.5~50mm2 | |
Stranded Wire Size [mm2] | 0.2~2.5mm2 | 0.2~4mm2 | 0.2~10mm2 | 2.5~16mm2 | 2.5~35mm2 | |
Wire Size [AWG] | 30~12 | 28~8 | 28~6 | 26~6 | 16~2 | |
Materials | ||||||
Insulator Materials | Nylon | |||||
Color | Beige(Gray), Blue, or other colors. (White, Black, Red, Green, ...) | |||||
Flame Retarded Grade | UL94V-0 | |||||
Temperature [℃] | 85℃ | |||||
Approval | UL/cUL approved. File No. E257927 | |||||
Accessories & Parts | ||||||
End Plate | TF-EP2.5-10 | TF-EP16 | TF-EP35 | |||
End Clamp | TF-ECL (TF-ECH) | TF-ECH | ||||
DIN Mount Rail | TA-001A / TA-001S (35mm DIN Rail) | |||||
Marker Strip (10pcs / strip) | M-MKH5X5- M-MKH5X5-10 M-MKH5X5-11 M-MKH5X5-22 M-MKV5X5-10 M-MKH5X5-N M-MKH5X5-G M-MKH5X5-L1 M-MKH5X5-11 | M-MKH6X5- (Blank) M-MKH6X5-11 (Horizontal 1~1) M-MKH6X5-10 (Horizontal 1~0) M-MKV6X5-10 (Vertical 1~0) M-MKV6X5-22 (Vertical 2~2) M-MKH6X5-N (Horizontal N) M-MKH6X5-G (Horizontal grounding symbol) M-MKH6X5-L1 (Horizontal L1)(L2, L3 are availabel) M-MKH6X5-11 (Horizontal 11~20) M-MKV6X11-380 (Vertical 380) M-MKV6X11-12V (Vertical 12V)
|
Color: White (Print: Black) Blank, N, Grounding, L1, L2, L3,... 1~0, 11~20, .../0, 1, 2, 3, ...~0v | |||
Bridge Assembly Kit 10P | TF-BAK2.5- P10 | TF-BAK4- P10 | TF-BAK10- P10 | TF-BAK16- P10 | TF-BAK35- P10 | A 10P short circuit Bridge Assembly Kit (BAK) include 10bridge screws, 10 bridge tube, and a 10P bridge bar. |
Short Circuit Bridge Kit 2P (2P~9P available) | TF-BAK2.5- P2 (P2~P9) | TF-BAK4- P2(P2~P9) | TF-BAK10- P2 (P2~P9) | TF-BAK16- P2 (P2~P9) | TF-BAK35- P2 (P2~P9) | A 2P short circuit Bridge Assembly Kit (BAK) include 2 bridge screws, 2 bridge tubes, and a 2P bridge bar. |
Bridge Screw (BS) | TF-BS2.5 | TF-BS4-16 | TF-BS35 | Small package: 25, 50, 100pcs/ per bag | ||
Bridge Tube (BT) | TF-BT2.5 | TF-BT4-16 | TF-BT35 | Small package: 25, 50, 100pcs/ per bag | ||
Bridge Bar (BB) 10P | TF-BB2.5- P10 | TF-BB4- P10 | TF-BB10- P10 | TF-BB16- P10 | TF-BB35- P10 | A 10Poles Bridge Bar |
Bridge Bar (BB) 2P (2P~9P available) | TF-BB2.5- P2 (P2~P9) | TF-BB4- P2 (P2~P9P) | TF-BB10- P2 (P2~P9) | TF-BB16- P2 (P2~P9) | TF-BB35- P2 (P2~P9) | A 2Poles Bridge Bar, 2~9P available |
Partition Plate (PT) | TF-PT2.5 | TF-PT4- 10 | TF-PT16 | TF-EP35 | Partition Plate for short circuite bridge |
Packaging |
200pcs/box, 1,600pcs/8boxes/N.W. :22.5kgs /carton |
