Specifications

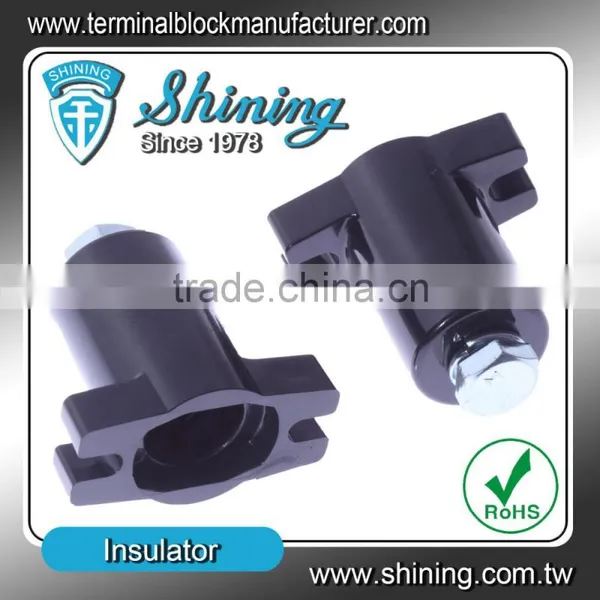

SL-2540 Electrical Wire Cable Clamp 1.2 KV Low Voltage InsulatorDimensions:45*25*40mm
Rated Voltage:1.2 KV
Working Temp:110C
SL-2540 Electrical Wire Cable Clamp 1.2 KV Low Voltage Insulator |
| Gerneral Product Information | |
| Item number: | SL-2540 |
| Dimension: | 45X25X40mm |
| Rate Voltage: | 1.2KV |
| Working Temperature: | 110°C |
| Insulator Material: | Thermoplastic |
| Color: | Black |
| Default Screw: | M8 |
| Rated Torque(N-m): | 6 |
| Series Name | ET-12 | SL-2540 | SL-3550 | SL-4050F | SL-3035 | SL-3040 |
| Picture | | | | | | |
| Dimensions | 142*36*70 mm | 45*25*40 mm | 64*36*50 mm | 66*40*49 mm | 30*32*35 mm | 30(40)*40 mm |
| L*W*H [mm] | ||||||
| Rated Voltage [V] | 11 KV | 1.2 KV | 1.2 KV | 1.2 KV | 6.6 KV | 6.6 KV |
| Working Temp. | +1000C | +1100C | +1100C | +1100C | +1100C | +1100C |
| Insulator Material | Resin | Thermoplastic | Thermoplastic | Thermoplastic | Epoxy | Epoxy |
| Color | Black | Black | Black | Black | Red | Red |
| Default Screw | M10 | M8 | M10 | M10 | M8 | M8 |
| Alternative Screw | N/A | M6, | M8, M12, | M8, M12, | N/A | N/A |
| (MOQ required) | 1/4", 5/16" | 5/16", 3/8", 1/2" | 5/16", 3/8", 1/2" | |||
| Rated Torque [N-m] | 10 | 6 | 10 | 10 | 6 | 6 |
| Drawing | ET-12 Drawing |
Packaging |
| 300pcs/1ctn / N.W. :8.0kgs /carton |
Shipping information |
| 1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis. |
| 2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline. |
Our Services |
| Shining E&E Industrial Co., Ltd. is a well-experienced manufacturer, offering Electronic Components, Plastic Products, Terminal Blocks and Fuse Holders for more than 30 years. We mainly provide Ceramic Terminal Block, Fuse Clip, Solid State Relay (SSR), Barrier Strip, Power Terminal Block, Insulators, Screw Terminal Block, Electrical Connectors, Busbar Support and Terminal Block Connector, all with superior quality. If you need more information about Electrical Terminal Blocks and Fuse Blocks, please do not hesitate to contact us. |
Shining E&E Industrial A specialized supplier of terminal blocks, fuse holders, barrier strips, and solid state relays (SSR) since 1978. |
Shining E&E Industrial Co., Ltd., founded in 1978, is a specialized manufacturer and supplier of plastic and electronic components products. We have experienced growth steadily year after year. Since 1992, our oversea factory, which is located in GuanDong Province, China, has been built to support our continuously expanding business. Awarded SGS ISO 9001:2000 certification since 2005. We have endeavored to the design and fabrication of all kinds of plastic products and have profound OEM/ODM experience with domestic and world-famous enterprises, such as TECO, TAIAN, Wal-Mart, Kmart, Target, Springs, and Sears, and so on. At present, we are extending our business to North America, Middle America, South America, Europe, Asia, Australia, and Far East countries. Our main products include various automatic control components and electronic components, such as terminal blocks, euro terminal strips, double row barrier strips, single row barrier strips, connectors, power blocks, fuse holders, fuse blocks, fuse links, solid state relays, relay sockets, insulators, switches, buttons, heat sinks, and related accessories. Meanwhile, we accept the design and fabrication of steel molds as well. Besides, our other products lines also include curtain draperies, hardware, and finials, bamboo floors, tagging guns, spray guns, plastic brushes, and miscellaneous hardware and plastic products. We have firmly believed in the idea of consistent quality, service, honesty, and responsibility, which is also our policy to satisfy our customers with the most competitive price, the excellent quality, and the best service. If you are interested in any of our products, please feel free to contact with us immediately. We look forward to building a long-term cooperation relationship and bringing a mutual benefits with you. We are very interested in cooperating with manufacturers in other fields and look forward to benefit for each other. "Working For A Better World" is our slogan. We deeply expect to have this world to be safer and better. |
Certificates |
1.Material and color can be customized.
2.For modification, there will be surcharge.
3.Drawings on the websites are for reference only.
4.For more detail you can visit: .tw
