Home > Products > Accessories > TA-002H Mounted on 35mm Rail Cap Bearing Bracket Stopper End Clamp

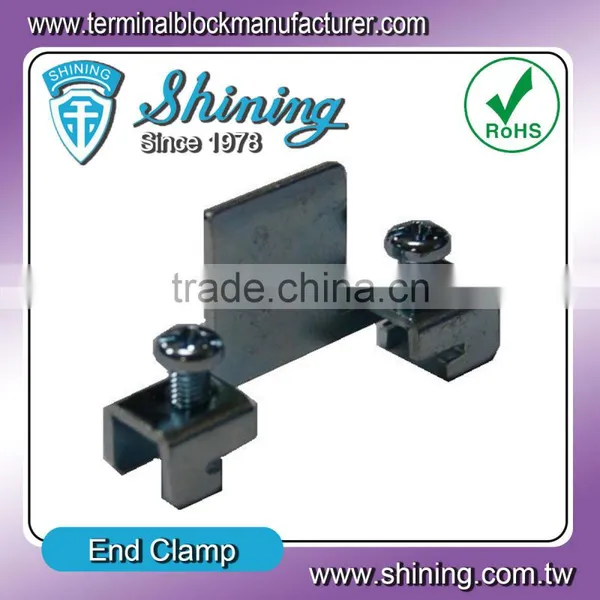

TA-002H Mounted on 35mm Rail Cap Bearing Bracket Stopper End Clamp
- 100000 Piece / Pieces per Month
- Keelung
- Credit Card
You May Like
-
TS-001 For Plastic Terminal Block 25mm Aluminum Metal Din Rail
-
TA-001S 2014 Hot Sale 1000mm 35 7.5mm Steel Galvanized Din Rail
-
TA-001A Made In Taiwan Shining Electrical 35mm Standard Din Rail
-
TF-ECL Din Rail Double Ended Clamp Spacer Stopper End Bracket
-
TE-002 Terminal Block Clamps Stopper Rail End Din Rail Mounting Clip
-
TF-ECH Cap Bracket End Clamp Spacer 35mm Din Rail End Stopper
Product Details
Place of Origin | Taiwan | Brand Name | Shining | |
Model Number | TA-002H | Usage | Other, Din Rail End Clamp | |
Material | Metal | Structure | G Clamp | |
Standard or Nonstandard | Standard |
100pcs/bag/N.W. :1.38kgs
1,000pcs/ctn/N.W. :13.8kgs
Product Description
Specifications
TA-002H Mounted on 35mm Rail Cap Bearing Bracket Stopper End ClampDimension: 41x10.5x28mm
Material: Steel
Suit to 35mm Rail
TA-002H Mounted on 35mm Rail Cap Bearing Bracket Stopper End Clamp
•Item number: TA-002H
•Dimension: 41x10.5x28mm (L*W*H),
•Suitable for Din Rail: TA-001A/ TA-001S
•Material: Steal
•Suitable for Series: TA/ TD/ TE/ TR/ FS/ FB Terminal Block & Fuse Holder
•Color: White Zinc-plated
•Packing: 100pcs/bag/N.W. :1.38kgs
1,000pcs/ctn/N.W. :13.8kgs
•Webpage: Din Rail End Clamp
Part Number | TA-002 | TA-002H | TE-002 | TF-ECL | TF-ECH | TS-0021 | |
Part name | end clamp | end clamp | end stop | end stop | end stop | end clamp | |
Pictures | |||||||
Ava. DIN Rail | TA-001A TA-001S (35mm) | TA-001A TA-001S (35mm) | TA-001A TA-001S (35mm) | TA-001A TA-001S (35mm) | TA-001A TA-001S (35mm) | TS-001 (25mm) | |
Dimensions L*W*H [mm] | 41*8*16 | 46*10.5*28 | 42*9.5*22 | 44*7.5*31 | 53*8*46.5 | 24*10*27 | |
Material | Steel | Steel | PC | Nylon | Nylon | Steel | |
Color | Zinc plating | Zinc plating | Grey, Black | Grey; (Blue) | Grey; (Blue) | Zinc Plating | |
Suitable production (Application) | TA, TD, TE, TR, FS, FB | TA, TD, TE, TR, TF-2.5, TF-4, TF-G2.5, TG-G4 FS, FB | TA, TD, TE, TR, FS, FB | TA, TD, TE, TR TF-2.5, TF-4, TF-G2.5, TG-G4 FS, FB | TA, TD, TE, TR TF, TF-G, FS, FB | TD, TS | |
Min. Package | 100pcs/0.86kgs | 100pcs/1.38kgs | 100pcs/0.49kgs | 100pcs/0.55kgs | 50pcs/0.85kgs | 100pcs/1.13kgs | |
Standard Package | 2Kpcs/17.2/ 18kgs/1.0'/ctn | 1Kpcs/13.8/ 14.4kgs/ctn | 3Kpcs/15.0/ 15.7kgs/1.40'/ctn | 2Kpcs/11/ 11.6kgs/1'/ctn | 1Kpcs/17/ 17.6kgs/0.85'/ctn | 1.6Kpcs/18.1/ 19kgs/ctn |
