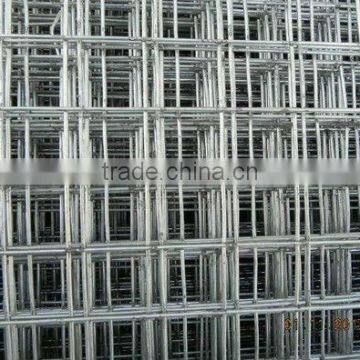

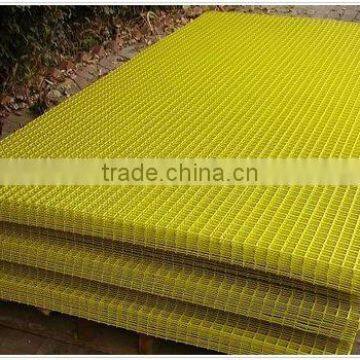

1x1 Welded Wire Mesh Panel (iso9001 & Yinghangyuan Factory)

Name: 1x1 Welded Wire Mesh Panel (iso9001 &amp; Yinghangyuan Factory)
Brand: sanxing
SKU: 141868760
Availability: InStock

Anping Sanxing Wire Mesh Factory

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

sanxing

Model Number:

sx-5594

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name sanxing

Model Number sx-5594

Material Other, Low-Carbon Iron Wire, Low-Carbon Iron Wire

Type Welded Mesh

Application Construction Wire Mesh

Hole Shape Square

Aperture 5/8-4inch

Wire Gauge 0.4-3.5mm

Welded wire mesh

Assortments
Material : low carbon steel wire, stainless steel wire,

galvanized steel wire, PVC coated iron wire in blue ,

green ,yellow and other colures.

Wire diameter: BWG 12-24

Width: 0.5-2.5m

Usage: industry and agriculture construction,

transportation and mining for all such purposes as poultry houses,

egg baskets, runway enclosures, floor heating draining rack, fruit drying screen, fence, etc.

Packing: Moist-proof paper, shrink bag, loose packing, (Customization is also available)

Specification List of Welded Wire Mesh
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	9.6mm x 9.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request.

APPEARANCE

DETAILS

PACKING

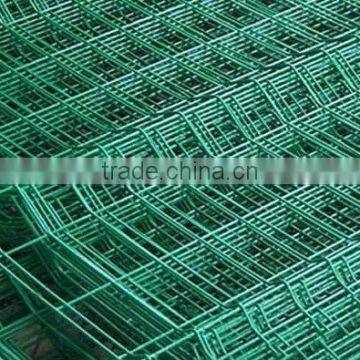

PVC Coated Welded Mesh
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21
3/4" x 3/4"	19mm x 19mm	16,17,18,19,20,21
1" x 1"	25.4mm x 25.4mm	15,16,17,18,19,20
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.2m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request.
