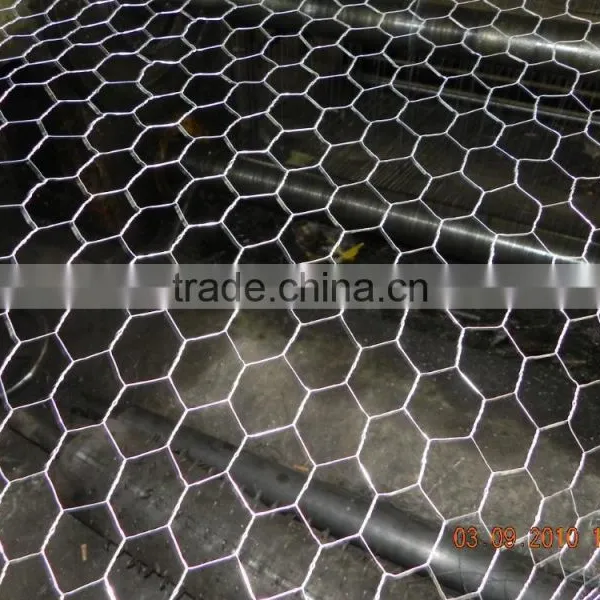

Hexagonal wire netting
Material:low carbon steel wire,stainless steel wire etc.
Application:It is extensively used in building as reinforcement of the roof and floor,
it is also used as fence for poultry cage, fish garden and children playground.
Characteristics
(1)Straight twist, reverse twist, double twist.

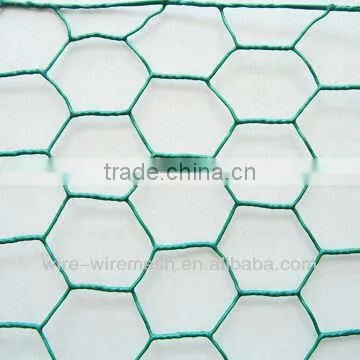

(2 ) PVC coated hexagonal wire mesh is coated PVC with galvanized wire surface then weaved
to various specification hexagonal mesh,
UV Resistance, aging resistance and weather resistance .

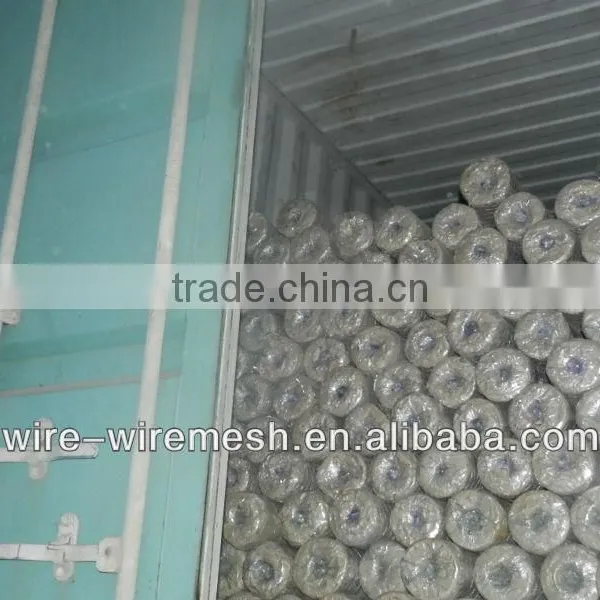

Packing:wrapped with waterproof paper and then plastic film bags. cartons or pallets, it also
can be wrapped according to the customers' requirements
Galvanized Hexagonal Wire Netting | ||||||||||||
mesh | Min. Gal.V | Width | Wire Gauge (Diameter) | |||||||||
Inch | mm | Tolerance(mm) |
|
|
| |||||||
3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | 27, 26, 25, 24, 23 | |||||||
1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | 25, 24, 23, 22, 21 | |||||||
5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | 27, 26, 25, 24, 23, 22 | |||||||
3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | 25, 24, 23, 22, 21, 20, 19 | |||||||
1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | 25, 24, 23, 22, 21, 20, 19, 18 | |||||||
1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 | |||||||
1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | 23, 22, 21, 20, 19, 18 | |||||||
2" | 50mm | ±6.0 | 1.2mm- 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 | |||||||
2-1/2" | 65mm | ±7.0 | 1.0mm- 30 | 1' - 2M | 21, 20, 19, 18 | |||||||
3" | 75mm | ±8.0 | 1.4mm- 30 | 2' - 2M | 20, 19, 18, 17 | |||||||
4" | 100mm | ±8.0 | 1.6mm- 30 | 2' - 2M | 19, 18, 17, 16 | |||||||
PVC Coated Hexagonal Wire Netting | ||||||||||||
Mesh | Wire Gauge (MM) | Width | ||||||||||
Inch | MM | - | - | |||||||||
1/2" | 13mm | 0.6mm - 1.0mm | 2' - 2M | |||||||||
3/4" | 19mm | 0.6mm - 1.0mm | 2' - 2M | |||||||||
1" | 25mm | 0.7mm - 1.3mm | 1' - 2M | |||||||||
1-1/4" | 30mm | 0.85mm - 1.3mm | 1' - 2M | |||||||||
1-1/2" | 40mm | 0.85mm - 1.4mm | 1' - 2M | |||||||||
2" | 50mm | 1.0mm - 1.4mm | 1' - 2M | |||||||||
Heavy Hexagonal Wire Netting | ||||||||||||
Mesh Size(mm) | Metal Wire Diameter(mm) | PVC Wire Diameter(mm) | The biggest width(m) | |||||||||
60x80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 4.3 | |||||||||
80x100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 4.3 | |||||||||
80x120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 4.3 | |||||||||
100x120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 4.3 | |||||||||
100x150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 4.3 | |||||||||
120x150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 4.3 | |||||||||
1. honestly first
2. reasonable price
3.best quality and service
4. free sample
APPERANCE
DETAILS
PACKING
WE HAVE OUR OWN FACTORY
QUALITY CERTIFICATE
