Fence Netting
Fence netting has two kind of classification:
1)Fence according to appearance size is divided into:
Rail Fence, Iron Fence, tube column, frame vertical and horizontal straight wire mesh square wire mesh fence,
square (round) tube column, Stadium District, fence, flat twist rod.
2) According to surface treatment were divided into
hot dipped galvanized fence netting
electric galvanized fence netting
PVC fence netting

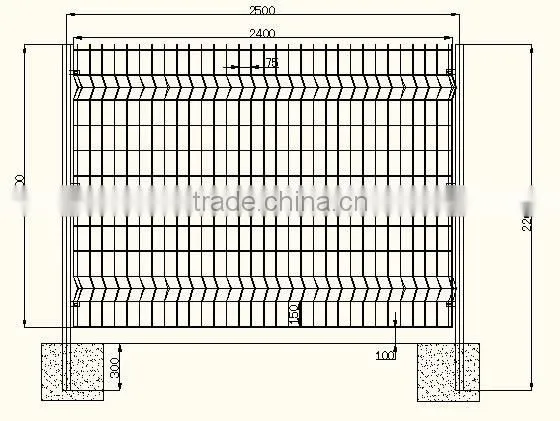

specification of railway fences | spot weled by 4mm diameter quality mild steel wire,finished by hot-dip zinc coating,pvc coating |
Opening(mm) | 75x150 |
LXW(mm) | 1620x3000 |
Pvc coating thicknes(mm) | 0.7-0.8mm |

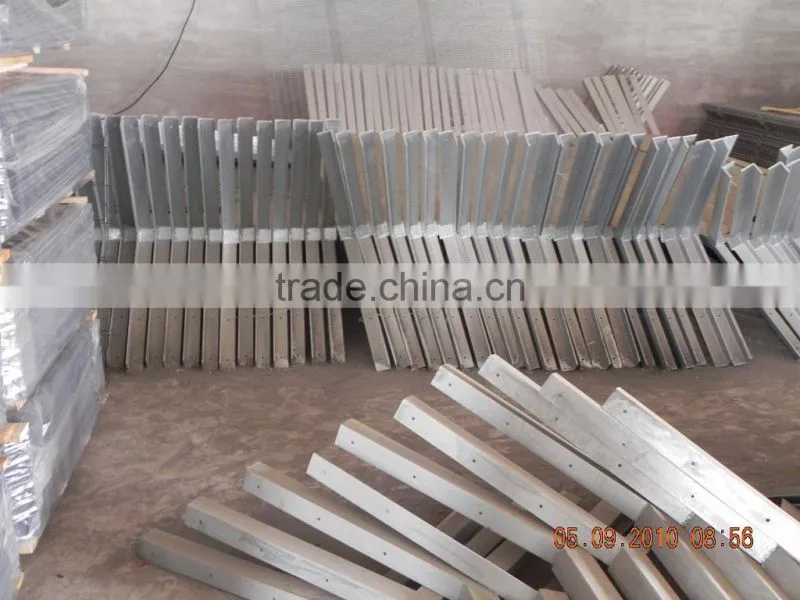

Support post(mm) | diameter 48x3x2057 |
Holding seal(mm) | 210x30x3 |
Base for fence(mm) | 500x300x300 |
Fence Height(mm) | Panel width(cm) | Wire Diameter(mm) | Mesh Size(mm) | Folds No | Post Style | Post Size(mm) | Post length(cm) |
103 |
200 225 250 |
3.5 4.0 4.5 5.0 6.0 8.0 |
50x50 50x100 50x150 50x200 60x120 | 2 | Square post 1 | 40x60x1.5 | 150 |
123 | 2 | 40x60x1.8 | 170 | ||||
150 | 2/3 | 40x60x2 | 197 | ||||
153 | 2/3 | Square post 2 | 60x60x1.5 | 200 | |||
170 | 3 | 60x60x1.8 | 217 | ||||
173 | 3 | 60x60x2 | 220 | ||||
180 | 3 | 60x60x2.5 | 227 | ||||
193 | 3 | Peach post | 50x70 | 240 | |||
200 | 3/4 | 70x100 | 250 | ||||

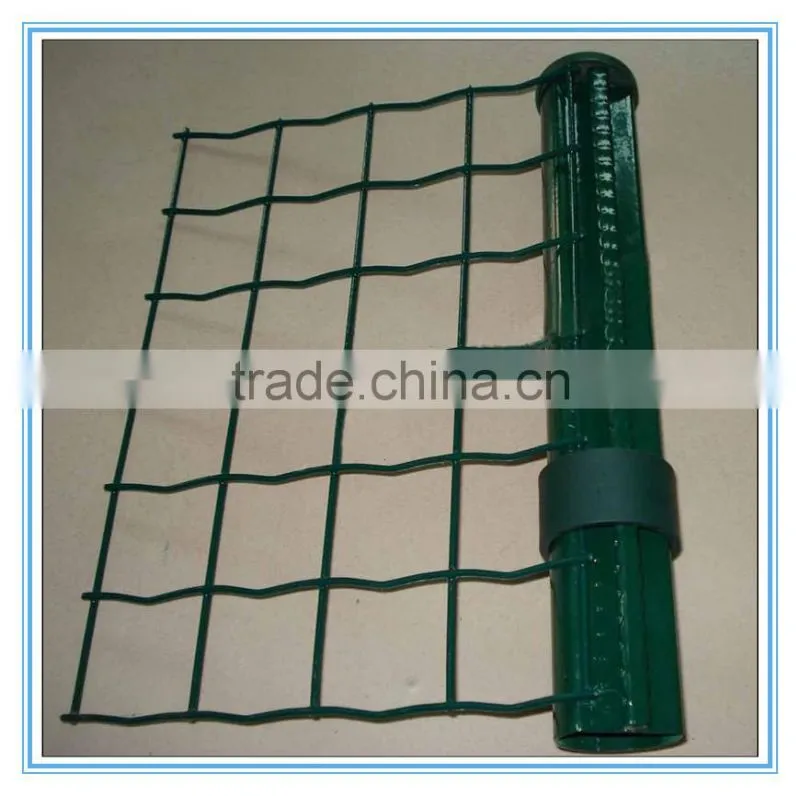

203 | 3/4 | Holland post | 48x1.5 | 250 | |||
240 | 4 | 290 |

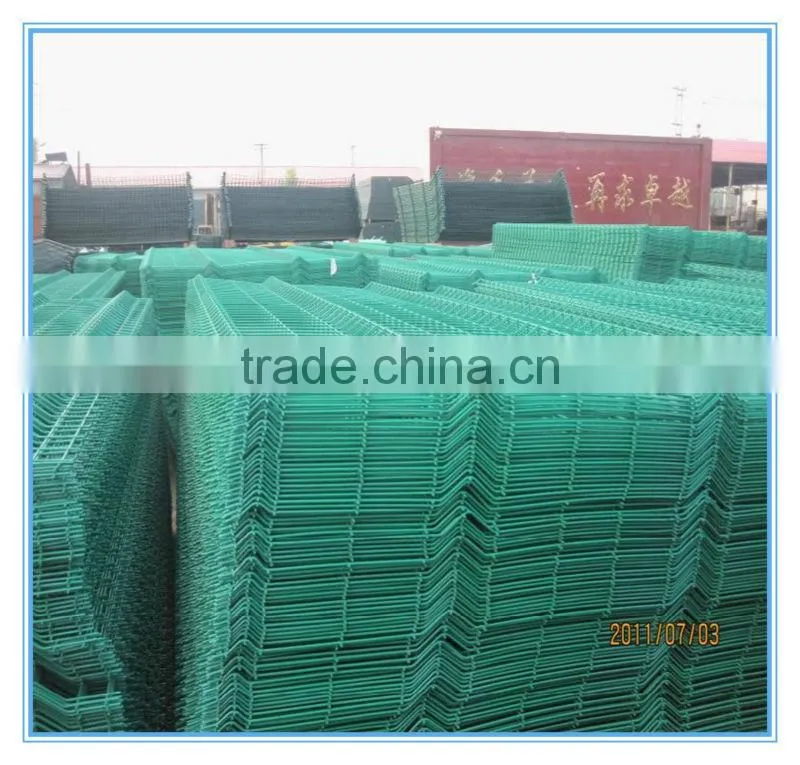

Appearance
Material:Low carbon steel wire, PVC coated wire
Characteristic: strong resistance strength. Good corrosion resistance, anti aging, nice appearance, easy and quick installation.

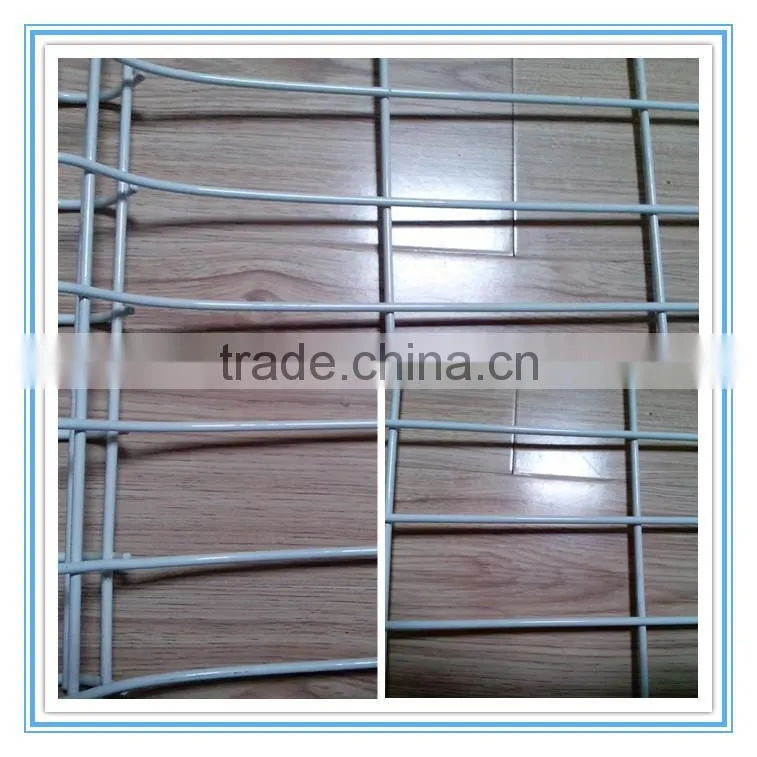

Let you know the details
Processing: PVC coated after welding of steel wire. Electro galvanizing, hot-dip galvanizing or PVC coating can be done separately.

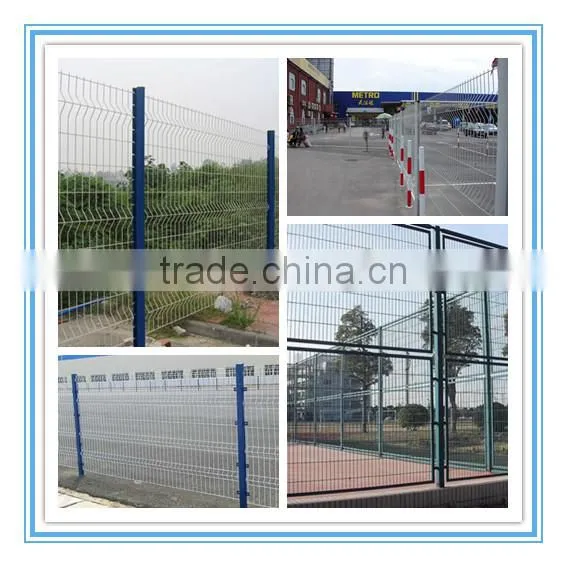

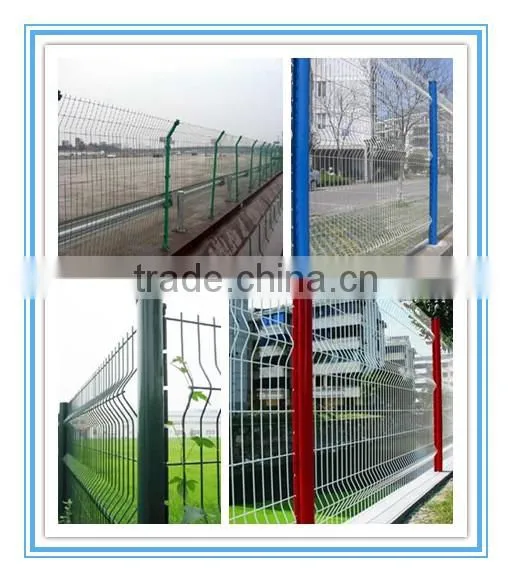

Use: Prevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry

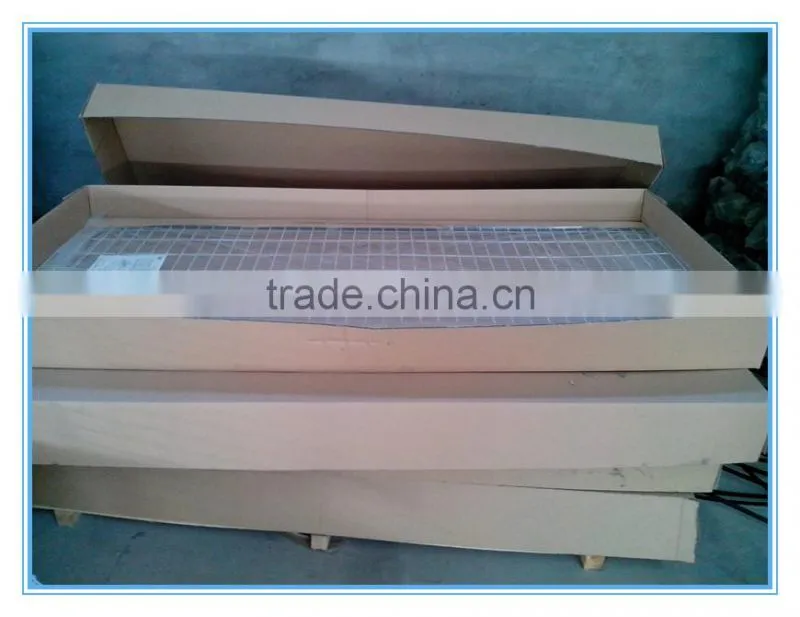

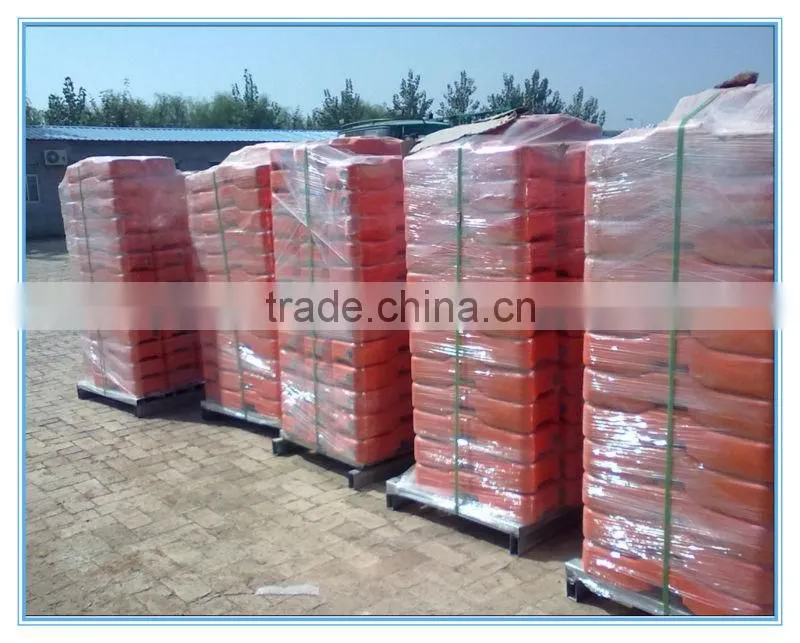

Package: waterproof paper and pallet or as customer's requirements
We are a 25 years professional manufacturer and have our own factory,high quality certificate
