Inexpensive Cold Formed Steel Framing Kitset Small Home
- 160000 Square Meter / Square Meters per Month
- Qingdao Port Canton Shanghai Port
- T/T
You May Like
-
Inexpensive Cold Formed Steel Framing Kitset Town Houses
-
Best Seller LGS Modular Prefabricated Townhouses
-
Best Seller Lgs Modular Bungalow Plans
-
Inexpensive Cold Formed Steel Framing Kitset House Prices
-
Inexpensive Cold Formed Steel Framing Kitset Tiny Houses
-
Inexpensive Cold Formed Steel Framing Kitset Home and Gardon
Product Details
| Place of Origin | Shandong, China | Brand Name | TITAN HOUSE | |
| Model Number | TN-CH-33 | Material | Steel | |
| Use | House, Other, House, Kitset Small Home |
Product Description
Inexpensive Cold Formed Steel Framing Kitset Small Home
Titan keeps a strict control of quality and efficient construction. More and more demands for TITAN HOUSE shows that TITAN's light gauge steel house will bring our contractors a high profit and praise. Titan also promises the homeowners a stable, comfortable and safe home for life.
Standards of Materials

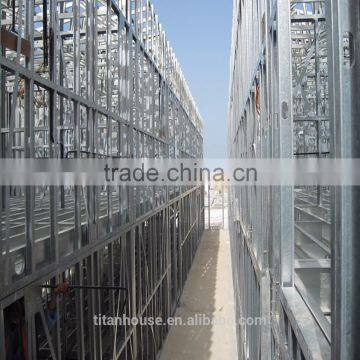

Steel Wall Framing
NZS3404 Steel Structures Standard
AS/NZS 4600:2005 Cold-formed Steel Structures
The National Association of Steel Framed Housing (NASH) – Residential and Low-rise Steel Framing
Aluminum Windows
NZS4211: 2008 Specification for the performance of windows.
Aluminum profile sliding windows with AS2047
Fiber-cement Sheet Cladding
AS/NZS 2908: Cellulose-cement products
| Contrast of Different Prefab Houses | ||||
| Types&Terms | Light Gauge Steel House | EPS Cement Sandwich Panel House | Rockwool Sandwich Panel House | |
Life Span | 70 Yrs | 5-10 Yrs | 10 Yrs | |
| Fire Resistance Period | 2.5H-3H | 2H | 1.5H-2H | |
| Seismic Magnitude | 9 | 5 | 5 | |
Insulation | Excellent | Good | Bad | |
Maintenance | Period | 5 Yrs | 1 Yr | 1 Yr |
Items | Roof Tiles Inspection | Exterior Wall Waterproof Inspection | Safty Inspection | |
| Comment | Easy to Replace | Troublesome | Waste Money | |
Anti-termite | Y | Y | Y | |
Eco-friendly | Recycling | All the Materials Can Be Recycled | Cannot Be Recycled | |
Building Rubbish | None | Lots of Building Rubbish | None | |
Construction with all decoration | Period | 30 Days | 45days | 15 Days |
Labour | 6 Workers | 10 Workers | 6 Workers | |
Cost Performance | High | Low | Low | |
Inexpensive Cold Formed Steel Framing Kitset Small Home

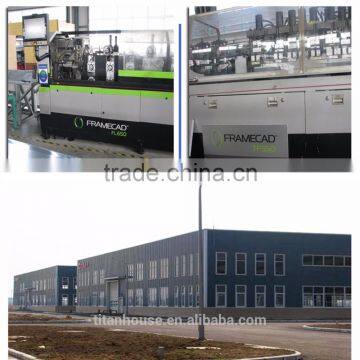

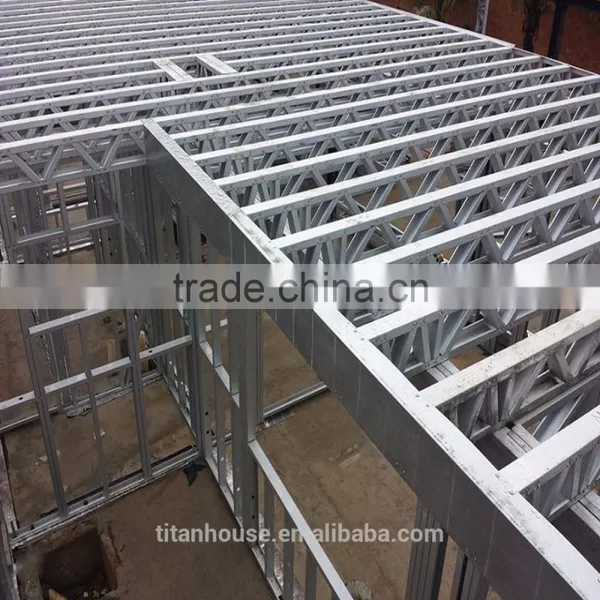

Titan light gauge steel house is new type of steel structure house. The steel frame is produced by the most advanced machine system imported from New Zealand and the USA.
The outstanding features of light gauge steel house are as followings:
A. Stable & Earthquake-proof
Galvanized steel keel with construction board is the main loading-bearing system. Such building system possesses a more stable wholeness and light dead load that make it possible to prevent earthquake of 9 magnitude and hurricane in speed of 50m/s. High-rise building is also available to build with light steel.
B. Industrializing Production
The quatity of light gauge steel frame used in Titan house projects can be calculated by CAD drawing and the production is strictly controlled by computer. The accuracy of the size can reach to the level of millimter which makes it easier to construct.
C. Quick Installation
The construction of light gauge steel house completely achieve the factory prefabrication and on-site assemblage. The whole building process is under dry construction which is ecofriendly and convenient. The quick installation helps recovery money rapidly of all the light gauge steel real estate projects.
D. Flexible Space Division & More Space Utilization
The span of light gauge steel can reach to 6-15 meters which makes the customers devide space more freely. Due to the wall of light gauge steel house is twice thicker than ordinary brick-concrete house, the percentage of usable area can reach to 92% which is 7%-10% larger than ordinary construction. So, light gauge steel is widely used in apartement buildings, church and hotels, ect.
E: Energy-saving & Eco-friendly

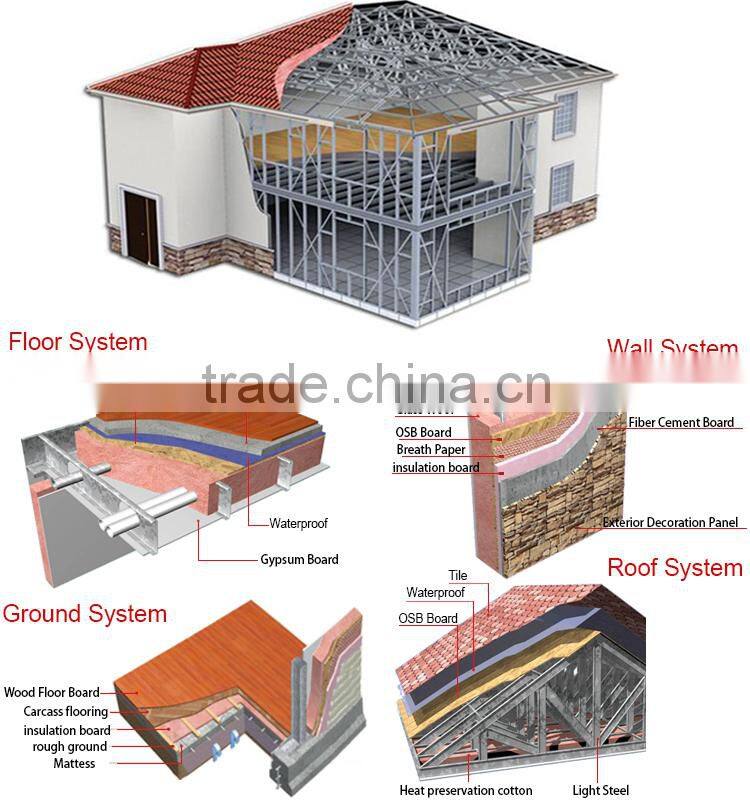

The wall system of light gauge steel belongs to compound wall system. The performance of insulation and soundproof is much better than concrete house. The percentage of energy saving is around 60%-70% compared with concrete house. All the light steel struction and 80% other materials can be recycled that can meet with the requirement of eco-friendly. Therefore, light steel building system is also suitable for school, hospital and shops.
Inexpensive Cold Formed Steel Framing Kitset Small Home
| Light Gauge Steel Frame of Structural System | ||
| No. | Types | Titan Advantages |
| 1 | Gr550, 0.8mm with Z275 zinc coating | -More than 10 yrs experience in producing light gauge steel frame. -Possessing the most complete machinery equipment in China. -Any specification of light gauge steel can be produced. -According with Australia Standard, New Zealand Standard, North American Standard, ect. -Light gauge steel can be purchased saperately according to customers' requirements. -Fast dilivery guaranteed ( within 15 days in general). -High quality guaranteed ( as to customers' requirements). -After-sale guaranteed (Titan will be responsible for the whole building project until it totally completed).
|
| 2 | Gr550, 1.0mm with Z275 zinc coating | |
| 3 | Gr350, 1.2mm with Z275 zinc coating | |
| 4 | Gr550, 0.8mm with AZ150 zinc coating | |
| 5 | Gr550, 1.0mm with AZ150 zinc coating | |
| 6 | Gr350, 1.2mm with AZ150 zinc coating | |
Inexpensive Cold Formed Steel Framing Kitset Small Home
Inexpensive Cold Formed Steel Framing Kitset Small Home
1.Q: Could you please design a new and unique light steel prefab house for me?
A: Absolutely! We are able to provide you with not only construction scheme and structural drawings, but landscape design! Besides, detailed drawings and 3D models are surely included. One-stop service is our outstanding superiority with no doubt.
2.Q: What should I provide to build a light steel prefab house?
A: So easy! Sketch drawing would be a better reference for us. However, you will never mind if you don’t have any. Simply notify us your requirements, such as the area, usage and the storeys of the house. Before long, you’ll possess an amazing design.
3.Q: How could I ensure the cost of building a light steel prefab house?
A: Firstly, the designing scheme should be accepted. Then, the kinds of building materials should be confirmed since different types and qualities make various prices. After that, we will send you a detailed quotation.
4.Q: How Long does it take to build a light steel prefab house?
A: It depends on the size of the house. Generally, the construction period of is 1 month of a 200-square-meter house by a construction team of 5-6 people. It only costs one week to build the steel structure frame.
5.Q: Is it difficult to build a prefab house?
A: totally not, you can build the house independently according to the construction drawings as long as you know how to use an electric tool.
6.Q: Does this kind of house can only be used in residential building?
A: Absolutely not. It can be used in all kinds of buildings, such as hotel, commercial office, school, entertainment club, light industrial workshop, ect.
7.Q: Is light steel prefab house stable?
A: Set your hearts at rest! You are completely safe living in light steel prefab house even if there are hurricanes of 200km/h and 9-grade earthquake outside.
8.Q: what are the advantages of light steel prefab house comparing to the traditional building?
A: Better isolation of sound and heat,Better fireproof and anti-seismic,Wind resistance,Time and labour saving,More usable area,Excellent termite-proof capability
9.Q: Does light steel prefab house look different from the ordinary one?
A: Yes. Light steel prefab house is more beautiful and suitable for any style.
