Marquee Wedding Party at Customized Wedding Church Tent

>> Photos of Our Tents

Detail specifications:

Customized designs are available.


>> Specification

Size:

1) Span Width: 10m,12m,15m, 20m, 25m, 30m, 40m.

2) Length: not limited,extendable by 5m/unit.

3) Eave Height: 3.4m, 4.0m & 5.4m, customizing possible.

Framework:

1) Hard pressed aluminium 6082/T6

2) Connectors are made of hot dip galvanized steel according to DIN EN ISO 1461.

3) Durable, easy set up, lightweight, maintainance-free

Fabric Material:

1) Double PVC-coated polyester textile. Any colors, patterns and prints are available.

2) Waterproof; Flame retardant according to DIN 4102, fire class B1

3) 850g/sqm block out PVC for roof; 650g/sqm translucent PVC for sidewall

Flooring systems:

1) Timber sub-frame with pressure treated wooden floorboards

2) Galvanised steel sub-frame with pressure treated wooden floorboards

3) Cassette ring beam floor

4) Weighted cassette flooring system

Character & Features

1) Wind load: 80-102 km/h

2) Snow load: customized on request

3) Easy and fast to install and dismantle

4) Portable, flexible, durable. Convenient to transport and store.

>> Optional Accessories

1) Roof Covers:             Transparent, Translucent, block out PVC covers;

2) Sidewall:                    Soft PVC,Glass, ABS, Steel sheet, Sandwich panel;

3) Doors:                        Glass door, Sliding door, Rolling door, Double-wing door, Aluminum;

4) Lining Decoration:    Roof lining, Wall Curtain, Lighting;

5) Flooring,Rain gutter,Ventilation system, Extended Ramps;

6) Transport and storage rack for doors

and many more...

>> Warranty

Material of Marquee

  Aluminum profile: solid, 100% hard pressed, four-groove aluminum hollow profile (GB6063/T5, GB6061/T6) whose use life can be 15 to 20 years.

  PVC Fabric cover: completely waterproof with high quality double PVC-coated polyester textile. Flame retardant according to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.

  Steel Connector: hot-dip galvanized steel, zinc thickness over 80um.

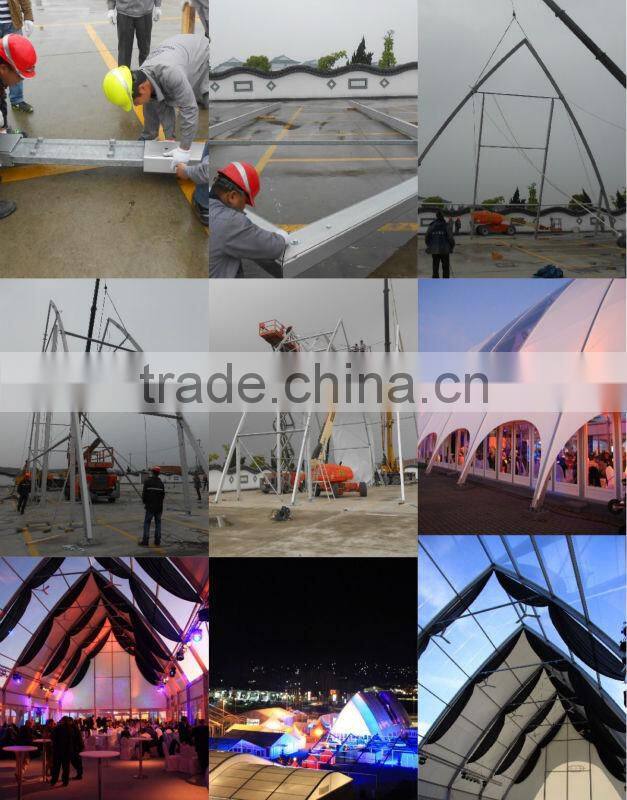

Easy set up

 >> Certification

>> Packaging

1) aluminum profiles packed in film.
2) hardware packed in steel case.
3) roof pvc packed in pvc or oxford bag.

>> Payment and shippment

At present we accept payment made by T/T,L/C,Western Union,MoneyGram,Paypal,Escrow.

30% as deposit,balance shall be cleared before delivery.

The delivery time would be 15-30 days after receipt of deposit.

>> About Us

HUAYE Tent Manufacture Co.,Ltd is an industry leading company specialising in the design, manufacture and supply of temporary and semi-permanent clear-span demountable tent systems. It supplies both the private and public sectors including the hospitality and events industry, the military, aid organisations, retail and general industry.

Our product series:

Why Choose us:

• A leading manufacturer of marquee tent systems and industrial buildings.
• A diverse range of over 600 different temporary structures systems for multiple applications.
• State-of-the-art production facility able to produce up to 60,000m² of new structures per week.
• Components are CNC machined and finished by hand ensuring a consistent high quality finish.
• Dedicated technical team of CAD / CAM designers and stability engineers for custom projects.
• European Standards guarantee high quality, professionally engineered and fully certified structures.
• In- house technical sales force, strategically located worldwide providing local knowledge and support.
• Short production lead-times can always be achieved irrespective of the size of order.
• A globally recognised brand you can trust, providing complete peace of mind.
• Competitive pricing policy across all product lines – ensuring customer satisfaction.

Please contact us directly, we will offer you good quality, reasonable price and best service. As one of the leading tent manufacturers in China, we solve your spacing problem!

Wenjuan Guan

Mob:    +86 177 1267 6522

Tel:      +86 512 8689 6699-6603

Fax:     +86 8689 6698

Feel free to contact us in English, German, Russian, and Chinese!

HUAYE Tent Manufacture Co.,Ltd

596 DewangRoad,German Industrial Park, Kunshan City,
Jiangsu Provice,China 215333.
