Temporary Warehouse Structures Prefab Warhouse Building Movable Warehouse

Temporary Warehouse Structures Prefab Warhouse Building Movable Warehouse photo-1
Temporary Warehouse Structures Prefab Warhouse Building Movable Warehouse photo-2
Temporary Warehouse Structures Prefab Warhouse Building Movable Warehouse photo-3
Temporary Warehouse Structures Prefab Warhouse Building Movable Warehouse photo-4
Temporary Warehouse Structures Prefab Warhouse Building Movable Warehouse photo-5
Temporary Warehouse Structures Prefab Warhouse Building Movable Warehouse photo-6
US$ 40 - 60 MOQ: 9 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HUAYE-CSS
Model Number:
WST002 prefab warehouse
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name HUAYE-CSS
Model Number WST002 prefab warehouse
Type Warehouse Tent
Scale Heavy Duty
Capacity 1000sqm2

Temporary warehouse structures prefab warhouse building movable warehouse

Temporary warehouse structures prefab warhouse building movable warehouse

Temporary warehouse structures prefab warhouse building movable warehouse



 >>>Specification of our warehouse tent

Span Width

Bay Distance

Eave Height

Ridge Height

Main profile

8m/26.2'

3m/16.4'

3m

4.53m

48x84x3mm(3-channel)

10m/32.8'

3m/16.4'

3m

4.85m

48x84x3mm(3-channel)

12m/39.4'

3m/16.4'

3m

5.16m

48x84x3mm(3-channel)

15m/49.2'

5m/16.4'

4m

5.62m

120x48x3mm(4-channel)

16m/52.5'

5m/16.4'

4m

5.72m

48x120x3mm(4-channel)

18m/59'

5m/16.4'

4m

6.01m

48x120x3mm(4-channel)

The length can be extended by 5m bay such as 15m, 20m, 25m......Customized design available.

For the outdoor temporary warehouse tent

>>> Application of our  Temporary warehouse structures prefab warhouse building movable warehouse
       Widely used for wedding, events, parties, Celebration, sports and tradeshows.
 Temporary warehouse structures prefab warhouse building movable warehouse
>>> Material Description of our warehouse tent .
        with high quality of material, the Temporary warehosue tent can be used over 20years
 -Frame:    hard pressed extruded aluminiumalloy
- Roof    :    waterproof &  flame retardant PVC coated fabric
-Wall:         thermal insulation ABS solid wall
-Connect:   galvanized steel parts for   prefab warhouse building movable warehouse
Temporary warehouse structures prefab warhouse building movable warehouse
>>> Features of our ourdoor Temporary warehouse  building movable warehouse


Weather :       all weather situation,  -30 degree Celsius~+70 degree Celsius

Wind load:     max. 100km/h (can be reinforced)

Snow load:    75kg/sqm(snow can't stay if use big degree roof pitch design)

Assemble:       Easy up and dismantled, movable.

Interior:           No pole inside, 100% available interior space.

Compatible:       Interchangeable parts between sizes

Customized:    Size/color/design is customized.

Accessories:    Full line accessories

The ourdoor tent could be suitable for all ground situation by our fixing solution

Temporary warehouse structures prefab warhouse building movable warehouse

>>>Accessories of our  Temporary warehouse structures prefab warhouse building movable warehouse

Roof :     blocked out roof, transparent cover, inflatable roof cover

Windows:    french dome, square window, mesh window, glass window  for glass wall

Flooring System:   VIP cassette flooring, simple cassette flooring, PVC floor

Doors:     double-wing glass door, single-wing glass door, glass fire door, aluminium door,

                rolling shutter(automatic or manual)

Wall:          soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall

Fixing Methods:    ground anchors, weight plate, expandable bolts

Rain Gutter:    inner rain gutter,  rain gutter between two similar tents, steel gutter

Liner :    color romantic roof liners decoration, as you like

Curtains:        c olor romantic side wall curtains, as you like

Other Optional Items:     lighting, AC, carpet, installation tools etc.

Temporary warehouse structures prefab warhouse building movable warehouse

Click here for more: Warehouse tent, event tents, wedding tent

Packaging & Shipping





  Professional Packing for Tents Transportation



1)aluminum frame packed in membrane film

 2)hardware packed in solid carton box

 3)  roof and sidewall in professional PVC carry bag

4) Glass elements packed in professional steel rack to protect damage during transportation.

Temporary warehouse structures prefab warhouse building movable warehouse



Company Information

 >>> Certificate of our  Temporary warehouse structures prefab warhouse building movable warehouse

Temporary warehouse structures prefab warhouse building movable warehouse

 >>> About Huaye

Temporary warehouse structures prefab warhouse building movable warehouse


 >> > Our SEREIS besides warehouse tent series
     Tips: please click the Shape type to see more

Shape  Type

Span Width

Bay Distance

Eave Height

Pagoda Structures

3m~20m

Same with width

2.3m/2.5m/3m

A Frame

3m~60m



3m/5m



2.3m~10m



Shaped design

6m~25m



3m/5m



2.3m~3m



High Peak

6m~15m



3m/5m



2.3m~3m



Curve Roof

3m~30m



3m/5m



2.3m~3m



Multi-level structures

10m~40m



5m

2 & 3 storey



Industrial structure

5m~30m



5m



3m~7m



This is just general introduction, for more details please contact our sales engineer for in-depth discussion.

Temporary warehouse structures prefab warhouse building movable warehouse

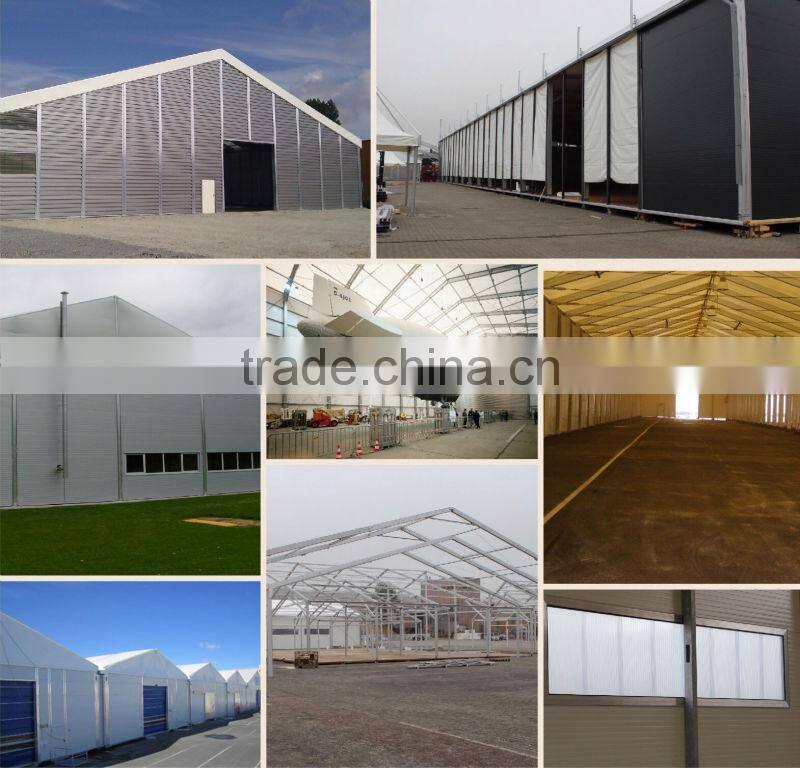

>>> Our Project
