world leading German tent factory located near Shanghai, China.

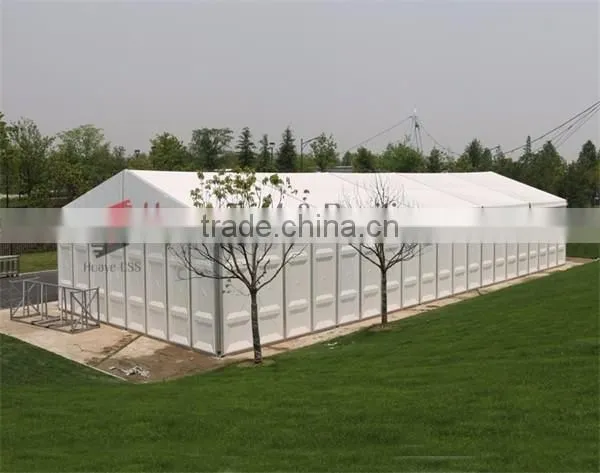

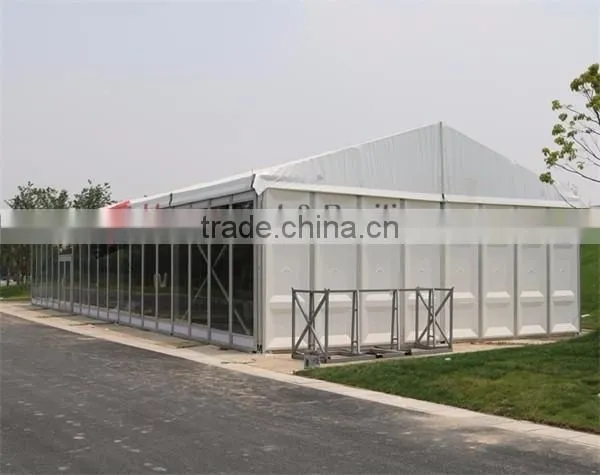

>> Exemplary Photos of Our Shelter
Our Shanghai Disneyland Projects
Floor size: 10*25 m
Wall height: 4.0 m
Ridge height: 5.6 m
Roof cover: 850 GSM double PVC coated polyester fabric
Walling: ABS solid wall [Imported from Germany]
Walling: Aluminum frame glass panels
size: 9 x 33 sq.m --- wall: 2.5 m --- ridge height: 4.1 m
PVC cover for roof --- glass panels for wall --- 2 pcs of double-wing glass doors
wind loading: 80 km/h
Our suzhou project for China Prime Minister and Taiwan Vice President
size: 20 x 30 sq.m --- wall: 4.0 m --- ridge height: 7.3 m
PVC cover for roof --- PVC cover for wall --- French style transparent PVC windows
wind loading: 102 km/h
>> Detail specifications:
Span width |
Side height |
Bay distance |
Main profile size |
10.00m |
2.50, 3.40, 4.00m |
5.00m |
150x120x4mm, 200x120x4mm |
12.00m |
2.50, 3.40, 4.00m |
5.00m |
200x120x4mm |
15.00m |
3.40, 4.00m |
5.00m |
150x120x4mm, 200x120x4mm |
20.00m |
3.40, 4.00, 5.40 m |
5.00m |
200x120x4mm |
25.00m |
3.40, 4.00, 5.40 m |
5.00m |
200x120x4mm |
30.00m |
4.00, 5.40 m |
5.00m |
300x120x4mm |
40.00m |
4.00, 5.40 m |
5.00m |
300x120x4mm |
Customized designs are available.
>> Main components description
It's a self-supporting anodised Aluminum framework structure.
Hot-dip galvanized steel connectors are used to connect the Aluminum beams.
The standard anchoring is realised with stakes and expansion screws.
The stability is ensured using wind bracing.
[Framework] Hard-pressed Aluminum hollow profiles
Huaye uses GB 6082-T6 class (German-standard), top standard in China tent factories.
[Roof cover] 850 gsm double PVC-coated polyester fabric
Huaye's PVC cover passed fire testing such as DIN 4102 B1(German), M2 (French)
[Connectors] Hot-dip galvanized steel parts
Huaye buy connectors from professional supplier, who's steel complies with DIN 1461 (German-standard)
>> Certification
>> Packaging
1) aluminum profiles packed in film.
2) hardware packed in steel case.
3) roof and sidewall in PVC bag.
>> Payment and shippment
T/T 30% as deposit --- T/T 70% balance before delivery
We delivery within 25 days after order confirmed and deposit received.
(25 days is standard lead time, we also accept urgent order once we have raw material stock. try us.)
>> About Us
HUAYE Tent Manufacture Co.,Ltd is an industry leading company specialising in the design, manufacture and
supply of temporary and semi-permanent clear-span demountable tent systems. It supplies both the private and
public sectors including the hospitality and events industry, the military, aid organisations, retail and general industry.
>> Successful cases
>> Why Choose us:
- A leading manufacturer of marquee tent systems and industrial buildings.
- A diverse range of over 600 different temporary structures systems for multiple applications.
- State-of-the-art production facility able to produce up to 60,000m² of new structures per week.
- Components are CNC machined and finished by hand ensuring a consistent high quality finish.
- Dedicated technical team of CAD / CAM designers and stability engineers for custom projects.
- European Standards guarantee high quality, professionally engineered and fully certified structures.
- In- house technical sales force, strategically located worldwide providing local knowledge and support.
- Short production lead-times can always be achieved irrespective of the size of order.
- A globally recognised brand you can trust, providing complete peace of mind.
- Competitive pricing policy across all product lines – ensuring customer satisfaction.
Please contact us directly, we will offer you good quality, reasonable price and best service.
As one of the leading tent manufacturers in China, we solve your spacing problem!
