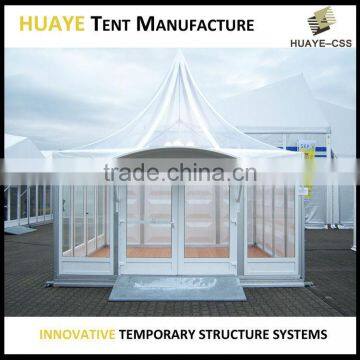

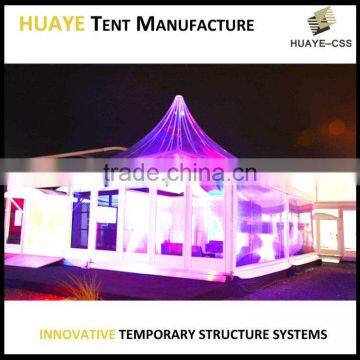

Pagoda Tent Marquee for Wedding Event Party 3x3m, 4x4m, 5x5m, 6x6m, 8x8m, 10x10m

>> Specification

Size:

1) Span Width: 3m,4m,5m,6m,8m,9m,10m,

other types of tents up to 12m,15m,20m,25m,30m,35m,40m,45m,50m.

2) Length: not limited,extended by 3m/unit or 5m/unit.

3) Eave Height: 2.5m,3m,4m,5m, accept customized.

Framework:

1) Hard pressed aluminium 6082/T6

2) Connectors are made of hot dip galvanized steel according to DIN EN ISO 1461.

3) Durable, easy set up, lightweight, maintainance-free

Fabric Material:

1) Double PVC-coated polyester textile. Any colors, patterns and prints are available.

2) Waterproof; Flame retardant according to DIN 4102, fire class B1

3) 850g/sqm block out PVC for roof;  650g/sqm translucent PVC for sidewall

Character & Features:

1) Wind load: 80-102 km/h

2) Snow load: customized on request

3) Easy and fast to install and dismantle

4) Portable, flexible, durable. Convinent to transport and store.

Detail specifications:

Customized designs are available.

1) Roof Covers: Transparent, Translucent, block out PVC covers;

2) Sidewall: Soft PVC,Glass, ABS, Steel sheet, Sandwich panel;

3) Doors: Glass door, Sliding door, Rolling door, Double-wing door, Aluminum;

4) Lining Decoration: Roof lining, Wall Curtain, Lighting;

5) Flooring,Rain gutter,Ventilation system, Extended Ramps;

6) Transport and storage rack for doors

and many more...

>> Easy Installation

 <img

 >> Warranty

Material of Marquee

   Aluminum profile: solid, 100% hard pressed, four-groove aluminum hollow profile (GB6063/T5, GB6061/T6) whose use life can be 15 to 20 years.

   PVC Fabric cover: completely waterproof with high quality double PVC-coated polyester textile.

 Flame retardant according to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.

   Steel Connector: hot-dip galvanized steel, zinc thickness over 80um.

>> Payment and shippment

At present we accept payment made by T/T,L/C,Western Union,MoneyGram,Paypal,Escrow.

30% as deposit,balance shall be cleared before delivery.

The delivery time would be 15-30 days after receipt of deposit.
