Welcome to: Huaye Tent Manufacture

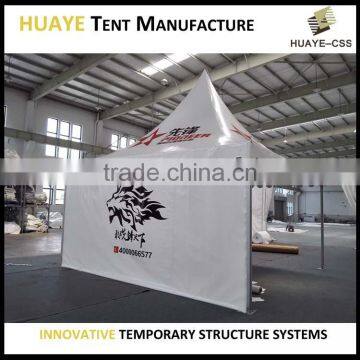

Custom Printed Tents and Canopy Graphics
Drawings:
| Span width | Side height | Bay distance | Main profile size |
| 3.00m | 2.50m | 3.00m | 63x63x2mm / 100x48x3mm |
| 4.00m | 2.50m | 4.00m | 63x63x2mm / 100x48x3mm |
| 5.00m | 2.50m | 5.00m | 63x63x2mm / 100x48x3mm |
| 6.00m | 2.50m | 6.00m | 100x48x3mm |
| 8.00m | 2.50m | 8.0m | 130x70x3mm |
| 10.00m | 2.50m | 10.0m | 130x70x3mm |
| 12.00m | 2.50m/3.00m | 12.0m | 130x70x3mm |
| 15.00m | 2.50m/3.00m | 15.0m | 200x120x4mm |
Customized designs are available.
Material
Framework:
1) Hard pressed aluminium 6082/T6
2) Connectors are made of hot dip galvanized steel according to DIN EN ISO 1461.
3) Durable, easy set up, lightweight, maintainance-free
Fabric Material:
1) Double PVC-coated polyester textile. Any colors, patterns and prints are available.
2) Waterproof; Flame retardant according to DIN 4102, fire class B1
3) 850g/sqm block out PVC for roof; 650g/sqm translucent PVC for sidewall
Character & Features
1) Wind load: 80-102 km/h
2) Snow load: customized on request
3) Easy and fast to install and dismantle
4) Portable, flexible, durable. Convenient to transport and store.
Optional Accessories
Character & Features
1) Short set-up lead time, e.g. 20 x 100 square meters, we could finish in 2-3 days if have 10 people
2) Movable and Relocatable, easy to set-up or dismantle
3) No central poles inside, 100 % inner space can be used
4) Simple to extend and modify
5) Customized possible
Easy set up
Life span of Material
Aluminum profile: solid, 100% hard pressed, four-groove aluminum hollow profile (GB6082/T6) whose use life can be 30 years if maintains well.
PVC Fabric cover: completely waterproof with high quality double PVC-coated polyester textile. Flame retardant according to DIN4102 B1, UV resistant, tear resistant, self-cleaning ability, can be used for 8 to 10 years if maintains well.
Steel Connector: hot-dip galvanized steel, zinc thickness over 80um; whose life span is 20 years if maintains well.
>> Certification of our tent
Professional Packing for Tents Transportation
2) Hardware packed in solid carton box
3) Roof and sidewall in professional PVC carry bag
>> Shipping service
Experienced Shipping Service for Exporting
1. We can check the shipping price for you, and recommend shipping agents to you.
2. You could always arrange the shipping by your own agents.
3. We usually export from Shanghai port.
Project name: Columbia concert venue
Type of tent: Polygonal roof
Date: March, 2015
Size: 48 x 90 meters, 6 m side height, 13 m ridge height, (accomadated 6,000 people)
Project name: Olympic sailing center at Qiangdao, Shandong, China
Type of tent: A-shape tent
Date: Jan, 2015
Size: 30 x 35 meters, 4.0 m side height, 8.9 m ridge height
Our excellent customer put camouflage net to cover the roof.
Project name: China Car Rally 2015, basement tent for SKODA team
Type of tent: Double-layer tent
Date: May, 2015
Size: 7 x 20 square meters, 6.8 m side height (3.4 m each layer), 8 m ridge height
>> Huaye Products
Our extensive range of temporary structure systems provides the perfect framework for multiple applications. From the smallest Pagoda through to our innovative multi-level structure systems there are virtually no limits in terms of design, size, functionality and accessory options from which to select.
Pagoda tent A frame tent Large tent Curved tent Multi-sided tent Multi-level tent
>> About Us
HUAYE Tent Manufacture Co.,Ltd is an industry leading company specialising in the design, manufacture and supply of temporary and semi-permanent clear-span demountable tent systems. It supplies both the private and public sectors including the hospitality and events industry, the military, aid organisations, retail and general industry.
Our factory
Why Choose us:
- A leading manufacturer of marquee tent systems and industrial buildings.
- A diverse range of over 600 different temporary structures systems for multiple applications.
- State-of-the-art production facility able to produce up to 60,000m² of new structures per week.
- Components are CNC machined and finished by hand ensuring a consistent high quality finish.
- Dedicated technical team of CAD / CAM designers and stability engineers for custom projects.
- European Standards guarantee high quality, professionally engineered and fully certified structures.
- In- house technical sales force, strategically located worldwide providing local knowledge and support.
- Short production lead-times can always be achieved irrespective of the size of order.
- A globally recognised brand you can trust, providing complete peace of mind.
- Competitive pricing policy across all product lines – ensuring customer satisfaction.
Please contact us directly, we will offer you good quality, reasonable price and best service. As one of the leading tent manufacturers in China, we solve your spacing problem!
Mob: +86 185 5055 8736
Tel: +86 512 8689 6699-6603
Fax: +86 8689 6698
Feel free to contact us in English, German, Russian, and Chinese!
HUAYE Tent Manufacture Co.,Ltd
596 DewangRoad,German Industrial Park, Kunshan City,
Jiangsu Provice,China 215333.
