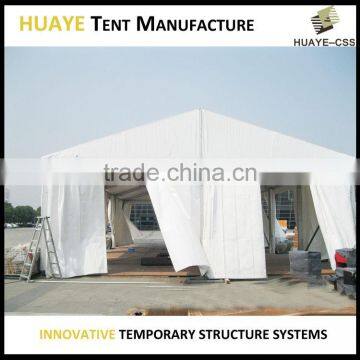

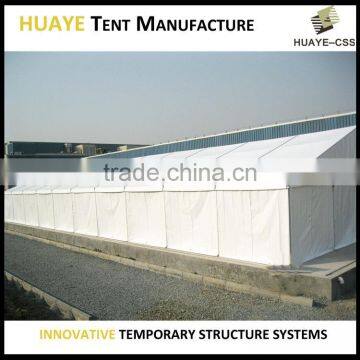

Help CenterHigh Quality Aluminum Structure Canopy Army 20 Person Military Tents
Related Products
-
High Quality Waterproof China Medical Hospital Tents Military Marquee TentsUS$ 45 - 85MOQ: 9 Square Meters -
Best Quality 9 m Span Party Tent for SaleUS$ 35 - 95MOQ: 50 Square Meters
-
Snow Resistant 8x6 Army Tent for Sale Army ApplicationUS$ 35 - 50MOQ: 1 Piece
-
Military Tent for SaleUS$ 45 - 95MOQ: 1 Set
-
Clear Span Structure Large Waterproof Army Tent for us ArmyUS$ 35 - 50MOQ: 1 Piece
You will see more details of aluminum structure canopy army 20 person military tents
Material
Framework: Hard pressed aluminium 6005 T6 (10um)- 48x84x3mm SH2.6m
Roof : PVC coated fabric, 850g/sqm, blocked out (flame retardant B1, waterproof)
Wall: PVC coated fabric, 650g/sqm, translucent(flame retardant B1, waterproof)
Connector: Hot dip galvanized steel over 70um
Demension of the aluminum structure canopy army 20 person military tents
Span width: 6m
Length: 6m
Eave height: 2.6 m
Bay distance: 3 m
Ridge Height: 3.68 m
Net weight: 278kgs
Volume: 1.2CBM
Wind resistance: 80km/h
Roof degree: 20°
More size availbe besides the 20person military tent
Span Width |
3m |
4m |
5m |
6m |
8m |
10m |
12m |
15m |
Bay distance |
3m |
4m |
5m |
6m |
4m |
5m |
6m |
5m |
Length |
3m |
4m |
5m |
6m |
8m |
10m |
12m |
15m |
Eave Height |
2.3m |
2.3m |
2.3m |
2.3m |
3m |
3m |
3m |
3m |
Peak Height |
4.86m |
4.87m |
5.69m |
5.79m |
7.05m |
7.35m |
7.75m |
9.12m |
Also accept customers’ design, OEM is available here.
Optional Accessories you can choose to equipment the army tent.
Roof : waterproof and fireproof fabric, white color, green color or any color your want
Windows: mesh window, screen window, rolling window for military tent.
Doors: soft PVC door, PVC rolling door suitable for army accomondate tent.
Wall: soft PVC fabric wall, steel plate wall
Fixing Methods: ground anchors, weight plate, expandable bolts
Rain Gutter: inner rain gutter, rain gutter between two similar tents, steel gutter
Other Optional Items: lighting, AC, carpet, installation tools etc.
Application: suitable for 20person or more solider accommodation temporarty army tent.
--The certificate we have for the 20person soliders accomodation army tent
Warranty:
Aluminum profile: solid, 100% hard pressed, four-groove aluminum hollow profile use life can be 15 to 20 years.
PVC Fabric cover: completely waterproof with high quality double PVC-coated polyester textile.
flame retardant according to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Steel Connector: hot-dip galvanized steel, zinc thickness over 80um.
Payment and shipping time:
At present we accept payment made by T/T,L/C,Western Union,MoneyGram,Paypal,Escrow.
30% as deposit,balance shall be cleared before delivery.
The delivery time would be 15-30 days after receipt of deposit.
Professional Packing for Tents Transportation
2)hardware packed in solid carton box
3) roof and sidewall in professional PVC carry bag
4) Glass elements packed in professional steel rack to protect damage during transportation.
Experienced Shipping Service for Exporting
1. We can check the shipping price for you, and recommend shipping agents to you.
2. You could always arrange the shipping by your own agents.
3. We usually export from Shanghai port.
Shape Type |
Span Width |
Bay Distance |
Eave Height |
Pagoda tent |
3m~20m |
Same with width |
2.5m |
"A" Shape |
3m~60m |
3m/5m |
2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
Domelike |
3m~40m |
3m/5m |
2.6m/3m/3.23m/3.88m/3.92m |
High Peak |
3m~10m |
3m/4m/5m/6m/8m/10m |
2.5m/2.6m |
Curve Shape |
15m~40m |
5m |
3.87m/3.89m |
Polygon |
10m~60m |
5m |
4m |
Cube Structure |
10m~30m |
5m |
5m |
This is just general introduction, for more details please contact our sales engineer for in-depth discussion. | |||
HUAYE Tent (Kunshan) Co.,Ltd is an award winning company specialising in the design, manufacture and supply of temporary and semi-permanent clear-span demountable tent systems. It supplies both the private and public sectors including the hospitality and events industry, the military, aid organisations, retail and general industry.
W hy Choose us:
- A renowned leading Germany- based manufacturer of marquee tent systems and industrial buildings.
- A diverse range of over 600 different temporary structures systems for multiple applications.
- State-of-the-art production facility able to produce up to 60,000m² of new structures per week.
- Components are CNC machined and finished by hand ensuring a consistent high quality finish.
- Dedicated technical team of CAD / CAM designers and stability engineers for custom projects.
- European Standards guarantee high quality, professionally engineered and fully certified structures.
- In- house technical sales force, strategically located worldwide providing local knowledge and support.
- Sho
rt production lead-times can always be achieved irrespective of the size of order. - A globally recognised brand you can trust, providing complete peace of mind.
- Competitive pricing policy across all product lines – ensuring customer satisfaction.
If you are interested in our tent,please feel free to contact me.We will offer you good quality,reasonable price and best ser
vice.As one of the leading tent manufacturer in China,we know what you want.
