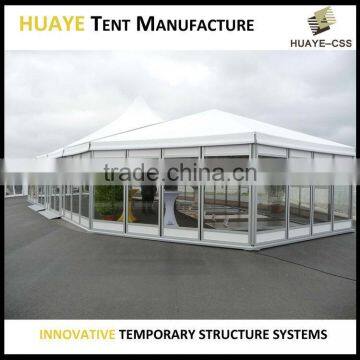

Help CenterUnforgettable Aluminum Frame Large Tent With High Peak Roof for All Kinds of Events Now on Sale
Related Products
-
Low Price Good Quality Groundbreaking Ceremony Event Tents for SaleUS$ 35 - 70MOQ: 1 Set -
Outdoor Summer Event PVC TentUS$ 45 - 95MOQ: 1 Square Meter
-
Cheap Price Good Quality Purchase Event TentsUS$ 35 - 70MOQ: 1 Square Meter
-
Pagoda Tent for Promotion Birthday WeddingUS$ 45 - 95MOQ: 1 Square Meter
-
Glass Wedding Tents With Pagoda and Glass Walls and Wedding Decoration for SaleUS$ 45 - 95MOQ: 1 Set
The aluminum frame large tent with high peak roof support your business. Its special high peak roof will make your event unforgettable to your guests.
>> Specification
Size:
1) Span Width: 10m,15m,20m
2) Length: not limited,extendable by 5m/unit
3) Eave Height: 2.4m/ 3.00m, customizing possible.
Framework:
1) Hard pressed aluminium 6082/T6
2) Connectors are made of hot dip galvanized steel according to DIN EN ISO 1461.
3) Durable, easy set up, lightweight, maintainance-free
Fabric Material:
1) Double PVC-coated polyester textile. Any colors, patterns and prints are available.
2) Waterproof; Flame retardant according to DIN 4102, fire class B1
3) 850g/sqm block out PVC for roof; 650g/sqm translucent PVC for sidewall
Flooring systems
1) Timber sub-frame with pressure treated wooden floorboards
2) Galvanised steel sub-frame with pressure treated wooden floorboards
3) Cassette ring beam floor
4) Weighted cassette flooring system
Character & Features:
1) Wind load: 80 km/h
2) Snow load: customized on request
3) Easy and fast to install and dismantle
4) Portable, flexible, durable. Convinent to transport and store.
Detail specifications:
Span width | Side height | Bay distance | Main profile size |
10.00m | 2.40m/ 3.00m | 5.00m | 130x70x3mm (4-channel) |
15.00m | 2.40m/ 3.00m/4.00m | 5.00m | 220x100x4mm (4-channel) 225x101x3.5mm/5.5mm (4-channel) |
20.00m | 4.00m | 5.00m | 220x100x4mm (4-channel) 225x101x3.5mm/5.5mm (4-channel) |
Customized designs are available.
1) Roof Covers: Translucent, obaque block out PVC covers;
2) Sidewall: Soft PVC,Glass, ABS, Steel sheet, Sandwich panel;
3) Doors: Glass door, Sliding door, Rolling door, Double-wing door, Aluminum;
4) Lining Decoration: Roof lining, Wall Curtain, Lighting;
5) Flooring,Rain gutter,Ventilation system, Extended Ramps;
6) Transport and storage rack for doors
and many more...
>> Application of Our Tents
>> Easy Installation
>> Certification
>> Warranty
Material of Marquee
Aluminum profile: solid, 100% hard pressed, four-groove aluminum hollow profile (GB6063/T5, GB6061/T6) whose use life can be 15 to 20 years.
PVC Fabric cover: completely waterproof with high quality double PVC-coated polyester textile. Flame retardant according to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Steel Connector: hot-dip galvanized steel, zinc thickness over 80um.
>> Packaging
1) aluminum profiles packed in film.
2) hardware packed in steel case.
3) roof and sidewall in PVC bag.
>> Payment and shippment
At present we accept payment made by T/T, L/C, Western Union, Money Gram, Paypal, Escrow.
30% as deposit,balance shall be cleared before delivery.
The delivery time would be 15-30 days after receipt of deposit.
>> About us
HUAYE Tent Manufacture Co.,Ltd is an industry leading company specialising in the design, manufacture and supply of temporary and semi-permanent clear-span demountable tent systems. It supplies both the private and public sectors including the hospitality and events industry, the military, aid organisations, retail and general industry.
Why choose us:
- A renowned leading China- based manufacturer of marquee tent systems and industrial buildings.
- A diverse range of over 600 different temporary structures systems for multiple applications.
- State-of-the-art production facility able to produce up to 60,000m² of new structures per week.
- Components are CNC machined and finished by hand ensuring a consistent high quality finish.
- Dedicated technical team of CAD / CAM designers and stability engineers for custom projects.
- European Standards guarantee high quality, professionally engineered and fully certified structures.
- In- house technical sales force, strategically located worldwide providing local knowledge and support.
- Short production lead-times can always be achieved irrespective of the size of order.
- A globally recognised brand you can trust, providing complete peace of mind.
- Competitive pricing policy across all product lines – ensuring customer satisfaction.
If you are interested in our tent,please contact me directly. We will offer you good quality, reasonable price and best service. As one of the leading tent manufacturer in China, we know what you want.
Mob: +86 177 1267 6522
Tel: +86 512 8689 6699-6603
Fax: +86 8689 6698
Feel free to contact us in English, German, Russian, and Chinese!
HUAYE Tent Manufacture Co.,Ltd
596 DewangRoad,German Industrial Park, Kunshan City,
Jiangsu Provice,China 215333.
