Popular economical marquee large canvas outdoor tent large capacity event tents

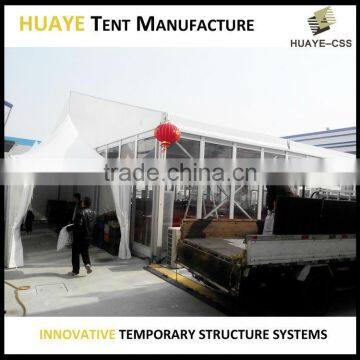

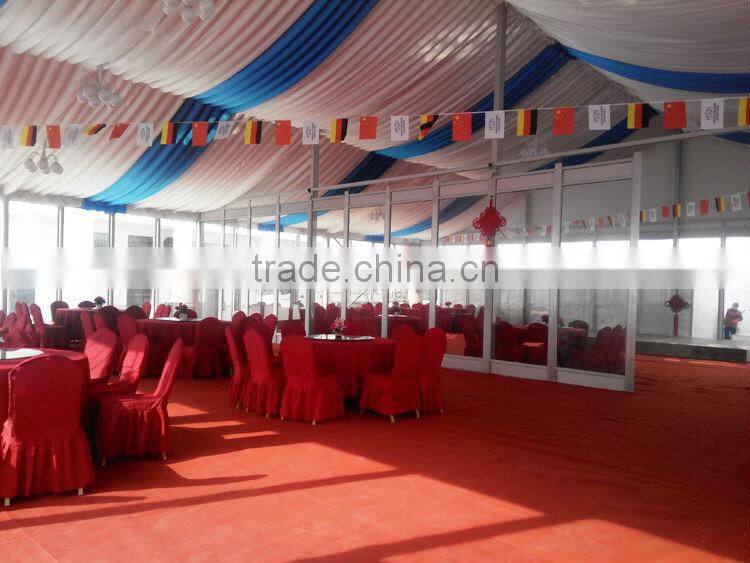

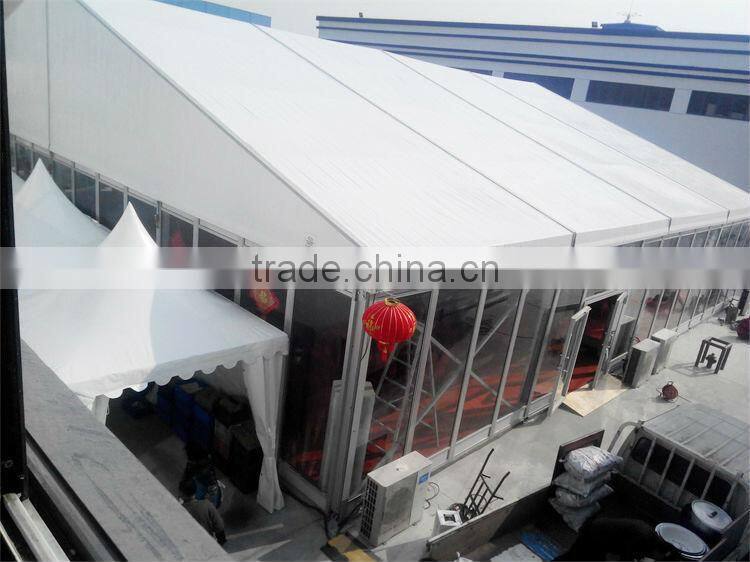

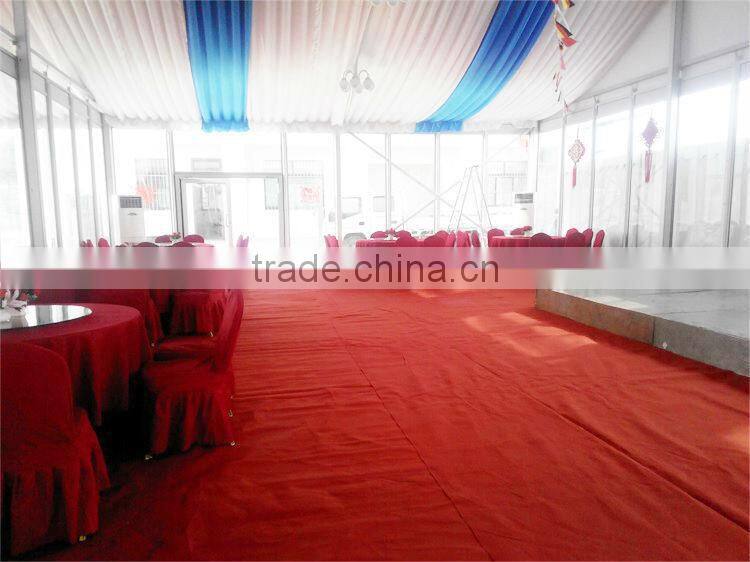

>> Photos of Our Tents
Detail specifications:
Span width | Side height | Bay distance | Main profile size |
10.00m | 3.40m,4.00m | 5.00m | 150x120x4mm, 200x120x4mm |
12.00m | 4.00m | 5.00m | 200x120x4mm |
15.00m | 3.40m,4.00m | 5.00m | 150x120x4mm, 200x120x4mm |
20.00m | 3.40m,4.00m,5.40m | 5.00m | 200x120x4mm |
25.00m | 3.40m,4.00m,5.40m | 5.00m | 200x120x4mm |
30.00m | 4.00m,5.40m | 5.00m | 300x120x4mm |
40.00m | 4.00m,5.40m | 5.00m | 300x120x4mm |
Customized designs are available.
>> Specification
Size:
1) Span Width: 10m,12m,15m, 20m, 25m, 30m, 40m.
2) Length: not limited,extendable by 5m/unit.
3) Eave Height: 3.4m, 4.0m & 5.4m, customizing possible.
Framework:
1) Hard pressed aluminium 6082/T6
2) Connectors are made of hot dip galvanized steel according to DIN EN ISO 1461.
3) Durable, easy set up, lightweight, maintainance-free
Fabric Material:
1) Double PVC-coated polyester textile. Any colors, patterns and prints are available.
2) Waterproof; Flame retardant according to DIN 4102, fire class B1
3) 850g/sqm block out PVC for roof; 650g/sqm translucent PVC for sidewall
Flooring systems:
1) Timber sub-frame with pressure treated wooden floorboards
2) Galvanised steel sub-frame with pressure treated wooden floorboards
3) Cassette ring beam floor
4) Weighted cassette flooring system
Character & Features
1) Wind load: 80-102 km/h
2) Snow load: customized on request
3) Easy and fast to install and dismantle
4) Portable, flexible, durable. Convenient to transport and store.
>> Optional Accessories
1) Roof Covers: Transparent, Translucent, block out PVC covers;
2) Sidewall: Soft PVC,Glass, ABS, Steel sheet, Sandwich panel;
3) Doors: Glass door, Sliding door, Rolling door, Double-wing door, Aluminum;
4) Lining Decoration: Roof lining, Wall Curtain, Lighting;
5) Flooring,Rain gutter,Ventilation system, Extended Ramps;
6) Transport and storage rack for doors
and many more...
>> Warranty
Material of Marquee
Aluminum profile: solid, 100% hard pressed, four-groove aluminum hollow profile (GB6063/T5, GB6061/T6) whose use life can be 15 to 20 years.
PVC Fabric cover: completely waterproof with high quality double PVC-coated polyester textile. Flame retardant according to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Steel Connector: hot-dip galvanized steel, zinc thickness over 80um.
Easy set up
>> Certification of our tent
>> Professional Packing for Tents Transportation
2)hardware packed in solid carton box
3) roof and sidewall in professional PVC carry bag
4) Glass elements packed in professional steel rack to protect damage during transportation
>> Payment and shippment
Experienced Shipping Service for Exporting
1. We can check the shipping price for you, and recommend shipping agents to you.
2. You could always arrange the shipping by your own agents.
3. We usually export from Shanghai port.
>> About Us
HUAYE Tent Manufacture Co.,Ltd is an industry leading company specialising in the design, manufacture and supply of temporary and semi-permanent clear-span demountable tent systems. It supplies both the private and public sectors including the hospitality and events industry, the military, aid organisations, retail and general industry.
Our factory:
>> Huaye Products Our extensive range of temporary structure systems provides the perfect framework for multiple applications. From the smallest Pagoda through to our innovative multi-level structure systems there are virtually no limits in terms of design, size, functionality and accessory options from which to select.
Our tent shape type:
| Shape Type | Span Width | Bay Distance | Eave Height |
| Pagoda tent | 3m~20m | Same with width | 2.5m |
| Dome shape | 3m~60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
| High peak design | 3m~10m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
| Cuved shape | 15m~40m | 5m | 3.87m/3.89m |
| Polygon | 10m~60m | 5m | 4m |
| Customized | 10m~30m | 5m | 5m |
| This is just general introduction, for more details please contact our sales engineer for in-depth discussion. | |||
Our products:
Why choose us:
- A leading manufacturer of marquee tent systems and industrial buildings.
- A diverse range of over 600 different temporary structures systems for multiple applications.
- State-of-the-art production facility able to produce up to 60,000m² of new structures per week.
- Components are CNC machined and finished by hand ensuring a consistent high quality finish.
- Dedicated technical team of CAD / CAM designers and stability engineers for custom projects.
- European Standards guarantee high quality, professionally engineered and fully certified structures.
- In- house technical sales force, strategically located worldwide providing local knowledge and support.
- Short production lead-times can always be achieved irrespective of the size of order.
- A globally recognised brand you can trust, providing complete peace of mind.
- Competitive pricing policy across all product lines – ensuring customer satisfaction.
Please contact us directly, we will offer you good quality, reasonable price and best service. As one of the leading tent manufacturers in China, we solve your spacing problem!
