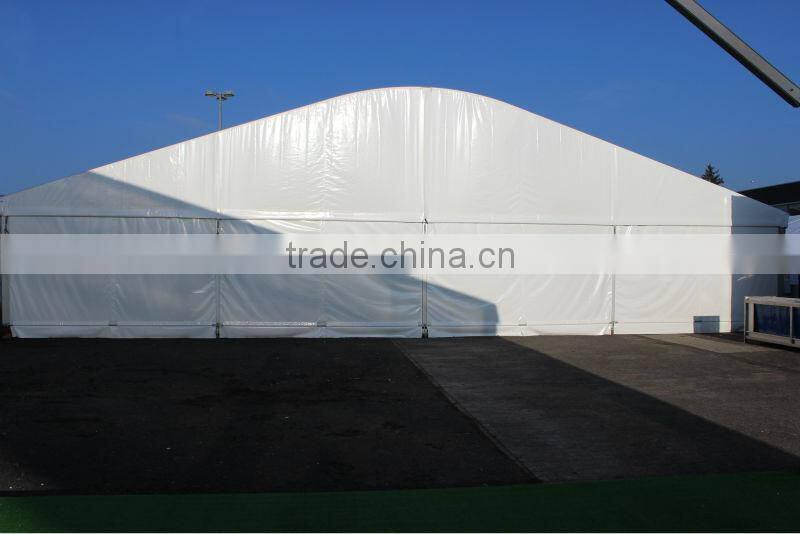

Big Concert Hall Tent Party Tent Curved Roof

>> Photos

Detail specifications:

>> Specification

Size:

1) Span Width: 3m,4m,5m,6m,8m,9m,10m,12m,15m,20m,25m,30m,35m,40m,45m,50m,55m,60m.

2) Length: not limited,extendable by 3m/unit or 5m/unit.

3) Eave Height: 2.5m,3m,4m,5m,6m,7m, customizing possible.

4) Main profile: depends on the size of the tent

Framework:

1) Hard pressed aluminium 6082/T6.

2) Connectors are made of hot dip galvanized steel according to DIN EN ISO 1461.

3) Durable, easy set up, lightweight, maintainance-free.

Fabric Material:

1) Double PVC-coated polyester textile. Any colors, patterns and prints are available.

2) Waterproof; Flame retardant according to DIN 4102, fire class B1.

3) 850g/sqm block out PVC for roof;  650g/sqm translucent PVC for sidewall.

Character & Features:

1) Wind load: 80-102 km/h.

2) Snow load: customized on request.

3) Easy and fast to install and dismantle.

4) Portable, flexible, durable. Convinent to transport and store.

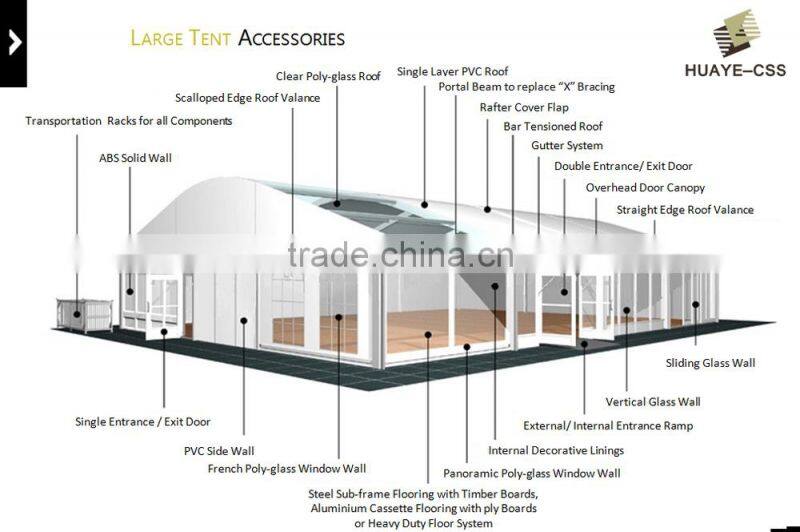

>> Optional Accessories

1) Roof Covers: Transparent, Translucent, block out of PVC covers.

2) Sidewall: Soft PVC, Glass, ABS, Steel sheet, Sandwich panel.

3) Doors: Glass door, Sliding door, Rolling door, Double-wing door, Aluminium.

4) Flooring System, rain gutter, ventilation System, extended Ramps.

5) Transport and storage rack for doors.

and many more......

>> Certification

>> Warranty

Material of Marquee

   Aluminum profile: solid, 100% hard pressed, four-groove aluminum hollow profile (GB6063/T5, GB6061/T6) whose use life can be 15 to 20 years.

   PVC Fabric cover: completely waterproof with high quality double PVC-coated polyester textile.

 Flame retardant according to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.

   Steel Connector: hot-dip galvanized steel, zinc thickness over 80um.

>> Packaging

1) aluminium profilespacked in film

2) hardware packed in steel case

3) roof and sidewall in PVC bag

>> Payment and shippment

At present we accept payment made by T/T,L/C, Western Union, Money Gram, Paypal, Escrow.

30% as deposit, balance shall be cleared before delivery.

The delivery time would be 15-30 days after receipt of deposit.

>> About us

HUAYE Tent Manufacture Co.,Ltd is an industry leading company specialising in the design, manufacture and supply of temporary and semi-permanent clear-span demountable tent systems. It supplies both the private and public sectors including the hospitality and events industry, the military, aid organisations, retail and general industry.

Why Choose us:

• A leading manufacturer of marquee tent systems and industrial buildings.
• A diverse range of over 600 different temporary structures systems for multiple applications.
• State-of-the-art production facility able to produce up to 60,000m² of new structures per week.
• Components are CNC machined and finished by hand ensuring a consistent high quality finish.
• Dedicated technical team of CAD / CAM designers and stability engineers for custom projects.
• European Standards guarantee high quality, professionally engineered and fully certified structures.
• In- house technical sales force, strategically located worldwide providing local knowledge and support.
• Short production lead-times can always be achieved irrespective of the size of order.
• A globally recognised brand you can trust, providing complete peace of mind.
• Competitive pricing policy across all product lines – ensuring customer satisfaction.

Please contact us directly, we will offer you good quality, reasonable price and best service. As one of the leading tent manufacturers in China, we solve your spacing problem!
