Home > Products > FSK insulation material > aluminum foil craft paper insulation material
aluminum foil craft paper insulation material
- 100 Ton / Tons per Month
- Shanghai
- T/T Credit Card
- Terranflex® TG Composite Elastomeric Thermal Insulation
- Durkflex® BM Composite Elastomeric Thermal Insulation
- Insulation pad WH8-750-026 for Bangladesh Power Plant factory in China
- Durkflex® BP Composite Elastomeric Thermal Insulation
- Durkflex® BT Composite Elastomeric Thermal Insulation
- Durkflex® FC Elastomeric Thermal Insulation In Petrochemical Field
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Weedmat | Model Number: | FSK-1004A-1 |
Product Description

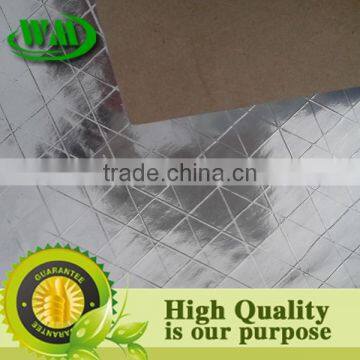

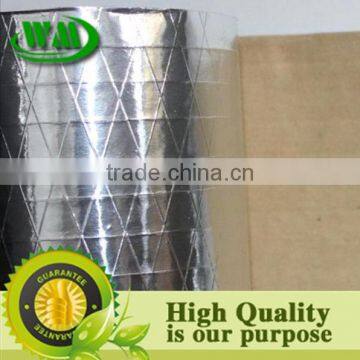

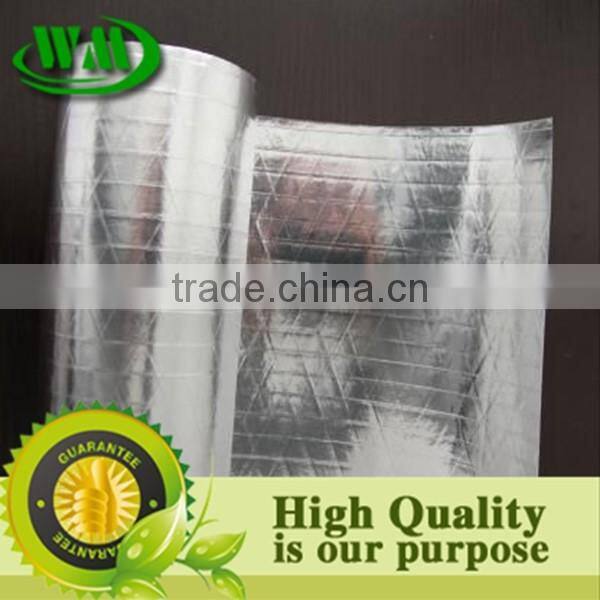

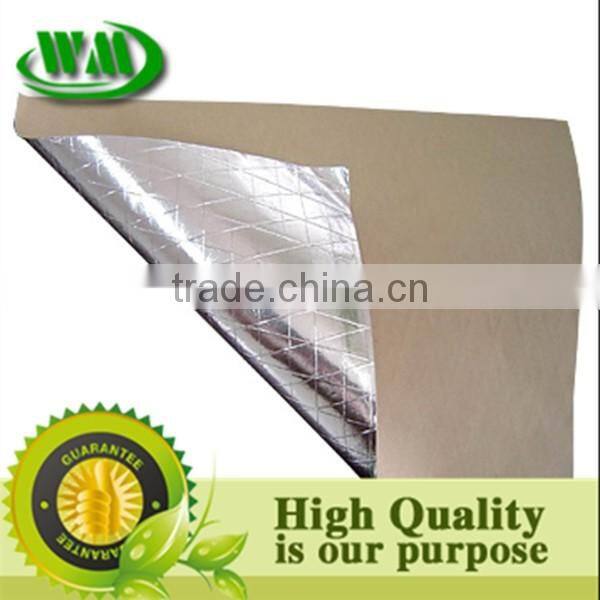

craft paper insulation material
craft paper insulation material
craft paper insulation material
Facing Composition | Description | Values (English) | Values (Metric) |
Foil | Aluminum | 0.28 mil | 7 micron |
Scrim | Tri-directional Fiberglass |
2/inch (MD) 3/inch (XD)
|
8/100 mm 12/100 mm
|
Adhesive | Flame Retardant | ------ | ------ |
Kraft | Natural | 36.6 lbs / 3000 ft2 | 60 g/ m2 |
Technical Parameters:
Physical Properties | Test Method | Values (English) | Values (Metric) |
Basis Weight | Scale | 19.4 lbs / 1000 ft2 | 80 g/ m2 |
Permeance (WVTR) | ASTM E96, Procedure A | 0.1 perm | 5.75 ng/N.s |
Tensile Strength - MD | ASTM D828 | 28.4 lbs/inch | 5.0 kN/m |
Tensile Strength - XD | ASTM D828 | 11.5 lbs/inch | 2.0 kN/m |
Bursting Strength | ASTM D774 | 43.5 psi | 30 N/cm2 |
Low Temperature Resistance |
ASTM D1790 4 hrs @-40 oF (-40 oC)
|
Remains Flexible No Delamination
|
Remains Flexible No Delamination
|
High Temperature Resistance |
ASTM D1790 4 hrs @ +240 oF (+116 oC)
|
Remains Flexible No Delamination
|
Remains Flexible No Delamination
|
Dimensional Stability | ASTM D1204 @ 150 oF (65oC) | Less than 0.5% | Less than 0.5% |
Emissivity | ASTM E408 | 0.03 | 0.03 |
Fire Rating | UL723/ASTM E84 | Less than 25/60 - passed | Less than 25/60 - passed |
Fire Rating | BS467 Pt 6 & 7 | Class 0 - passed | Class 0 - passed |
Available Roll Width | --- | 39.4", 47", 49.21", 51.2", 53.14" | 1.0m, 1.2m, 1.25m, 1.3m, 1.35m |
Material structures
Advantages
1.Reflects 96% at least of radiant heat
2.Non-toxic/ Non-allergic
3.Durable and lightweight
4.Does not compress,collapse,or disintegrate
5.Easy to cut and install
6.Permanent and maintenance-free
7.Does not support the growth of mold and mildrew
8.Not affected by moisture or humidity
(1)Pipe insulation,roof heat insulation,waterproofing membrane
(2)Travel mats,beach mats,camping moisture-proof pad
(3)Car sunshade,car cover,air conditioning covers,motocycle sun-proof cushions
(4)Household appliances,precision instruments,high-grade porcelain and other crafts packaging
Changzhou Weedmat Environment Technology Co.,LTD was established in 2011,owns two branch factories,with advanced equipment and highly professional manufacturing technology. Our company has more than 100 employees and 10% are the R&D engineers.
Our main products are weed mats, tarpaulin,tents,PP/PE woven fabric,woven fabric laminated kraft paper, aluminum foil/film insulation material etc.
Our company has passed ISO9000 quality management system certification,our aluminum woven fabric has passed SGS fire-resistant test and it is our most popular new product.We have profcessional quality control team.
Last year our output exceeded 9,00 tons, which were mainly exported abroad. Our main markets are the EU, the USA, Africa and Some Asian countries. We welcome anyone who is interested in our items to contact with us.
