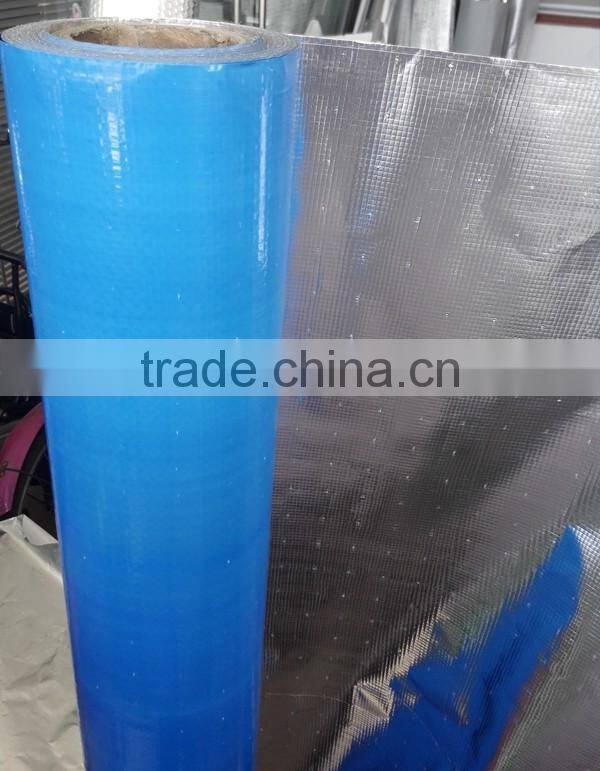

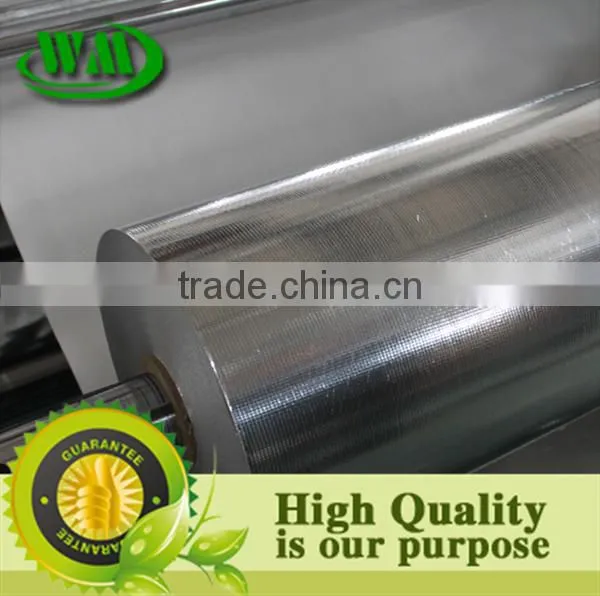

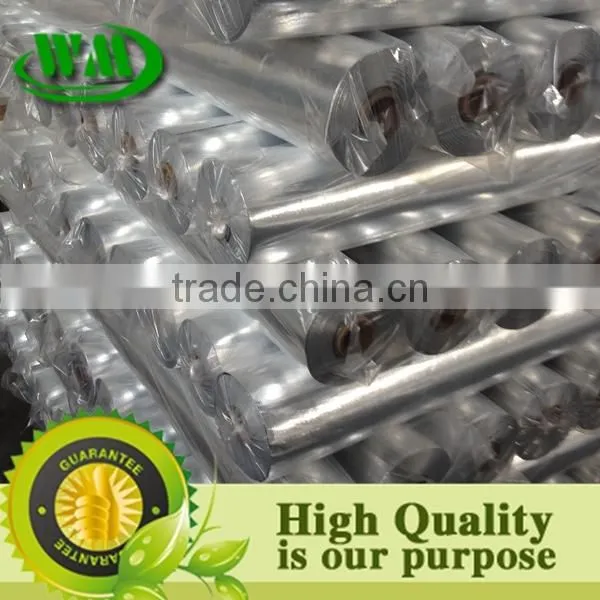

Perforated double sided aluminum foil woven fabric of radiant barrier
Structure: Aluminum Foil+PE+Woven fabric+PE+Alu foil
Specification:
Color: Green, Blue, Silver, Grey, Black, Orange
Max Width per roll: 1.83 M, it can be slitted according to customer's demand
Length per roll: 50~3000 M
Weight: 80-250gsm
Characteristics:
1.Clean,thin,light weight, good flexibility and cushioning;
2.Reflective,Insulated,Waterproof,(Fireproof)
3. Low thermal conductivity and superior heat insulation;
4.Cost effective and versatile, Invariable if it is attacked repeatedly;
5. Easy to install,high efficiency,Maintenance free, environmentally friendly
Technical Parameters:
Max Size |
3000 M*2.6 M |
||
Parameter |
Value |
Test Method |
|
Tensile Strength |
MD |
16.65 KN/m |
ISO1924 |
CD |
5.83 KN/m |
||
Tensile Index |
MD |
118.0 Nm/g |
|
CD |
41.3 Nm/g |
||
Burst Strength |
1622 KPA |
ISO2758 |
|
Water Vapor Transmission Rate |
<0.09g/sqm/day |
ISO |
|
Emissivity |
<3% |
ASTM C 1371 |
|
Reflectivity |
>97 % |
||
Flammability |
< 5 |
AS1530.2 |
|
Bonding |
100% |
by hands |
|
R value |
1-1.5 |
|
|
|
This type product can be produced Fire resistant,Antiglare,Perforated. | |||
Application:
Attic insulation Woven Aluminium foil Radiant barrier provides excellent insulation: reflects up to 97% of radiant energy in addition to resisting other types of heat transfer from conduction,convection,and radiation.The side of metalized PET/Alu forms an effective barrier against moisture,air currents and vapors.It is economical solution in many field.
